The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight.
The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation,
target acquisition, ECM and weapons usage. The Tomcat was operated by the United States
Navy and the Islamic Republic of Iran Air Force only. The name “Tomcat” is said to come from the
call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving
Grumman aircraft feline names.

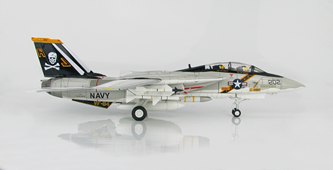

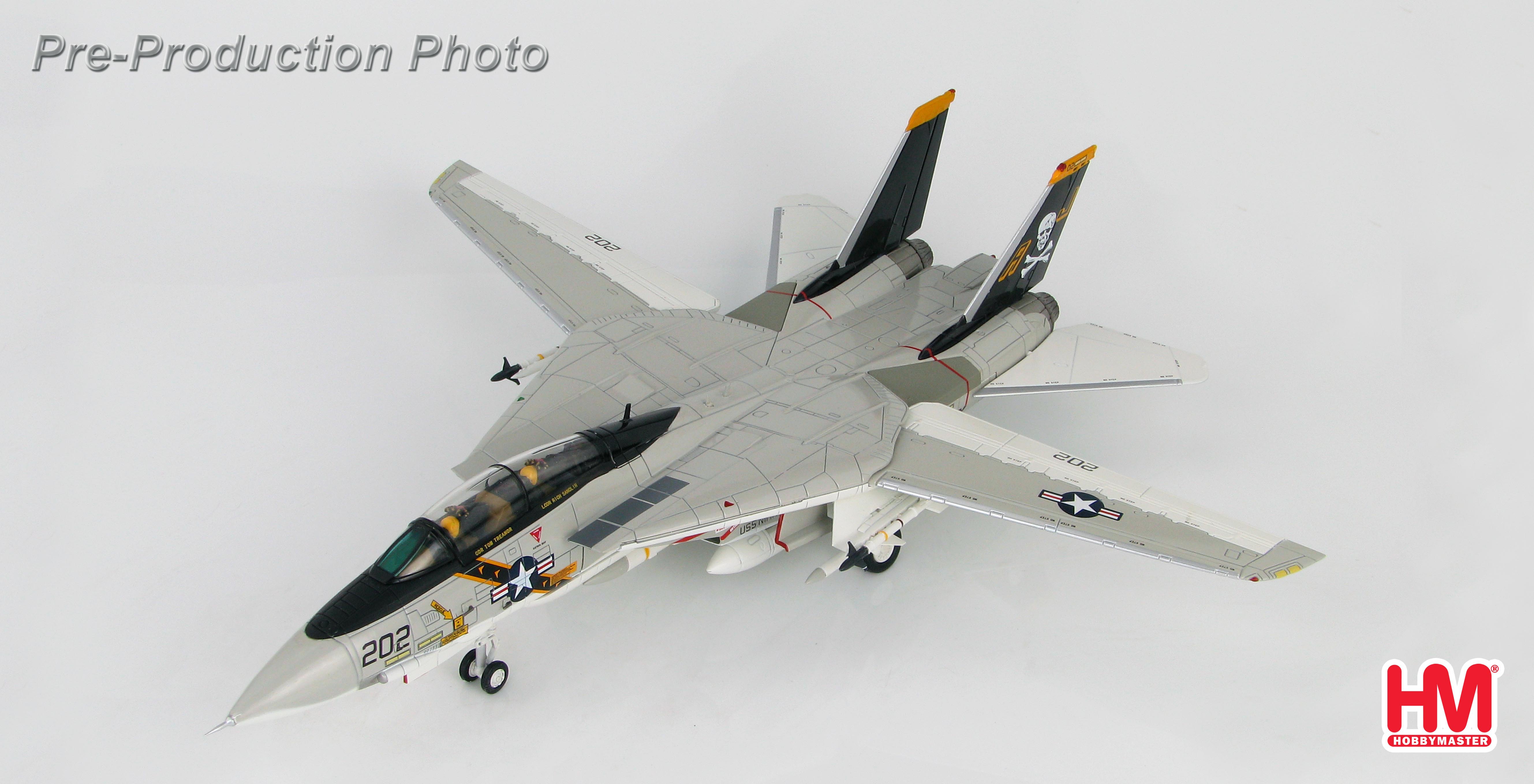

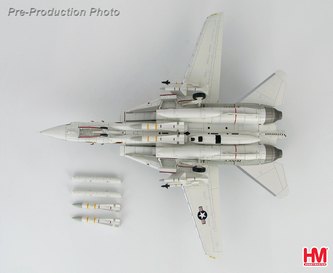

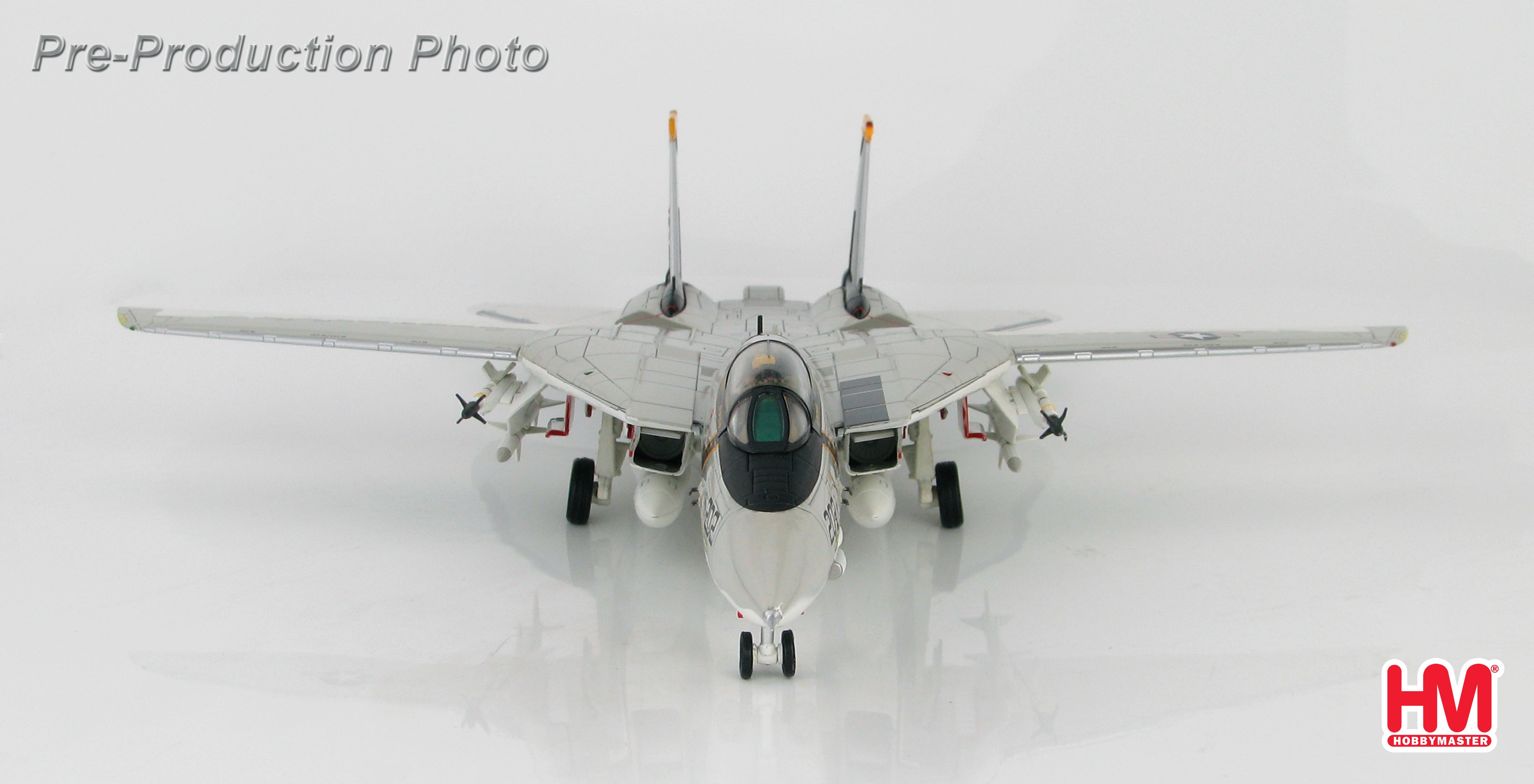

Grumman F-14A 160382 C/N 238 was delivered to the USN on April 8, 1977 and assigned to VF-
84 “Jolly Rogers” making its first cruise on board the USS Nimitz between December 1, 1977 and
July 20, 1978 to the Mediterranean. 160382 had a role in the 1980 movie “The Final Encounter”.
This aircraft was also the main feature in the well known lithograph “Tomcat”. Later 160382 spent
time with VF-11 and VF-51 then retired to the National Naval Aviation Museum and now loaned to
the Museum of Flight wearing a 1977 VF-84 scheme.

Specifications for the Grumman Aerospace F-14 Tomcat

Role - Carrier-based multi-role strike fighter

First Flight – F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990

Last Production Year – F-14D July 20, 1992

Number All Variants Produced – 710

Crew - 2 (pilot and radar intercept officer).

Type        F-14A        F-14B (F-14A+)        F-14D

Dimensions

Length                       62 ft 8 inches           62 ft 8 inches           62 ft 8 inches
Wingspan (Swept)        38 ft 2.5 inches        38 ft 2.5 inches        38 ft 2.5 inches
Wingspan (Unswept)     64 ft 1.5 inches        64 ft 1.5 inches        64 ft 1.5 inches
Height        16 ft        16 ft        16ft

Performance
Powerplants
F-14A 2 x P&W TF-30-P414A      F-14B 2 x GE F-110-GE-400    F-14D    2 x GE F-110-GE-400
Maximum Thrust
F-14A 34,154 lbs      F-14B 56,400 lbs       F-14D 56,400 lbs
Maximum Speed
F-14A 1,544 mph (Mach 2.38)     F-14B 1,544 mph (Mach 2.38)     F-14D 1,544 mph (Mach 2.38)
Ceiling
F-14A 50,000+ ft        F-14B 53,000+ ft        F-14D 53,000+ ft
Range
F-14A 1,730 nm         F-14B   2,050 nm        F-14D 2,050 nm

Weight
Empty
F-14A 40,104 pounds        F-14B 41,780 pounds       F-14D   43,735 pounds
Maximum
F-14A 72,000 pounds        F-14B 74,349 pounds        F-14D 74,349 pounds

Armament
1 x MK-61A1 Vulcan 20mm cannon

Maximum Weight – 13,000 lbs. Of Combined Ordnance
Air-Air Missiles
6 AIM-7 Sparrows
4 AIM-9 Sidewinder
6 AIM-54 Phoenix

Air-To-Ground
MK-82 (500 lbs.)
4 MK-83 (1,000 lbs.)
4 MK-84 (2,000 lbs.)
MK-20 cluster bombs
4 GBU-10 LGB
GBU-12 MK-82 LGB
4 GBU-16 MK-83 LGB
4 GBU-24 MK-84 LGB
