The first German mass produced 109 fighter was the Bf-109E that has been mistakenly referred
to as the Me-109. The Bf is the designator for the Bayerische Flugzeugwerke (BFW) (Bavarian
Aircraft Works) that produced the original aircraft. In 1938 Messerschmitt took over BFW but
throughout WWII German handbooks and documents referred to the aircraft as the Bf-109. By the
end of 1939 the Bf-109E (Emil) had replaced all other 109 variants and equipped 13 Gruppens
with 40 aircraft each. The Bf-109 was the main single-engine aircraft until the Fw-190 came along.

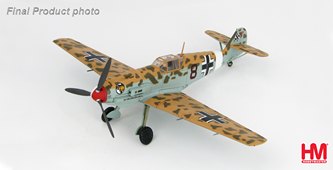

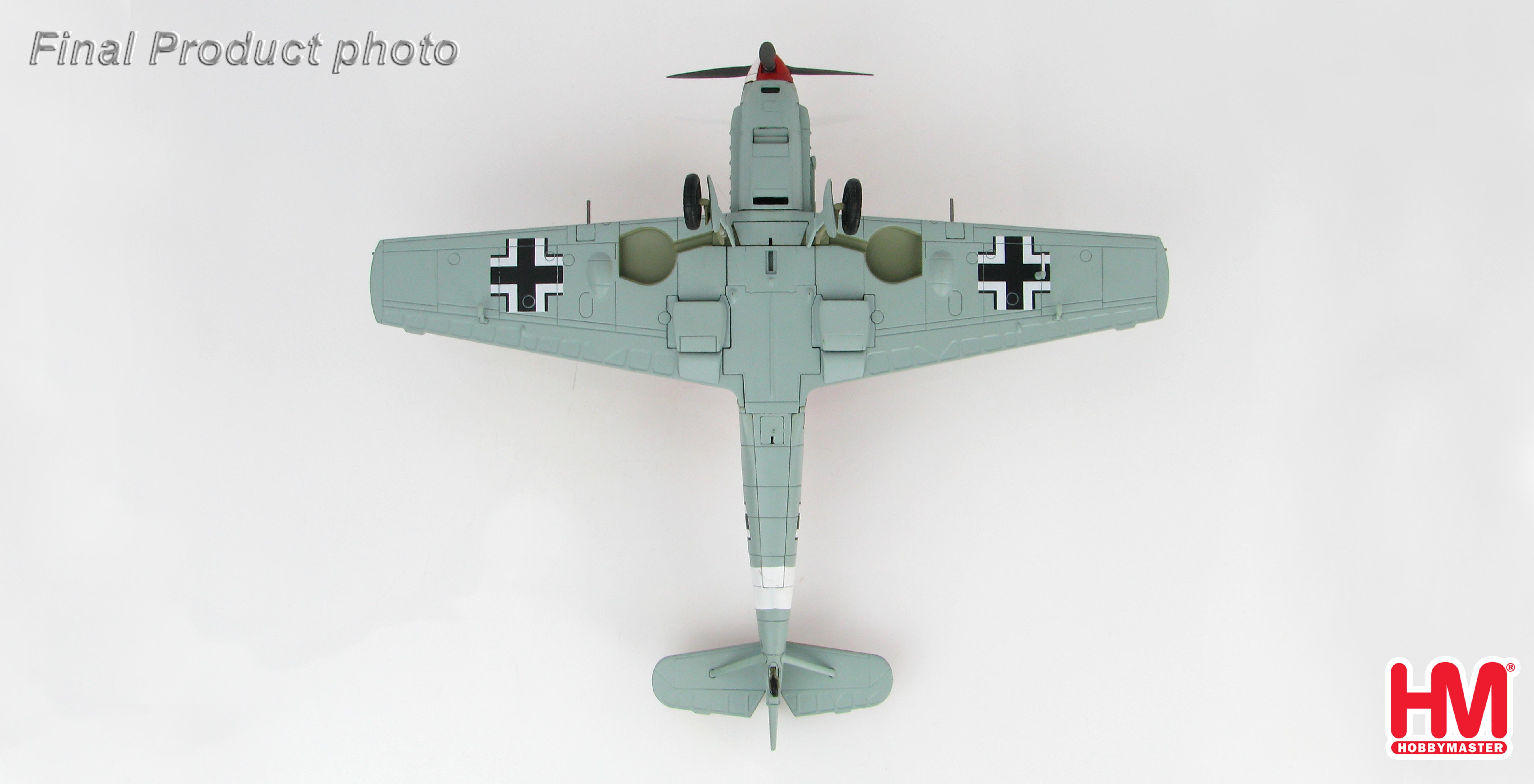

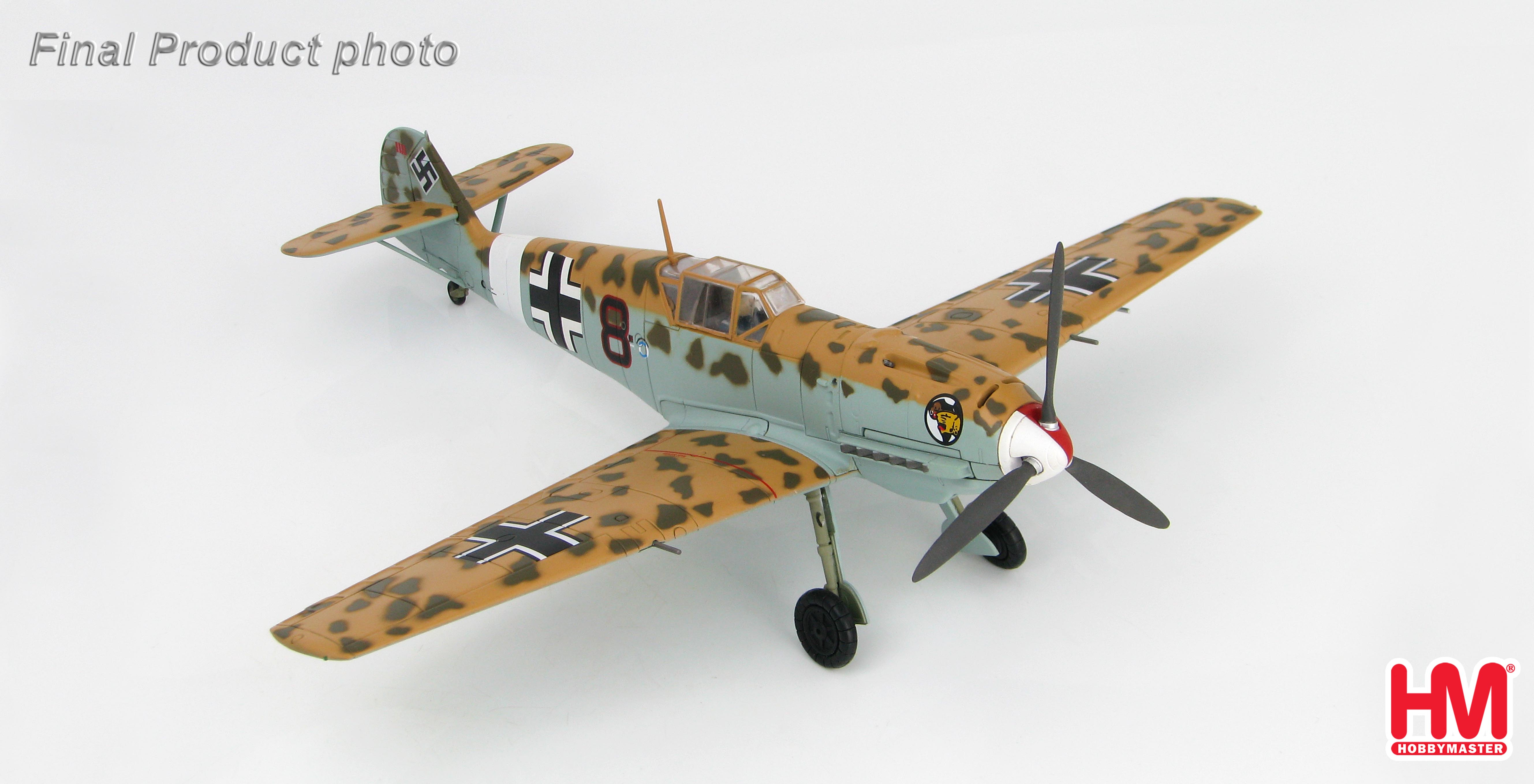

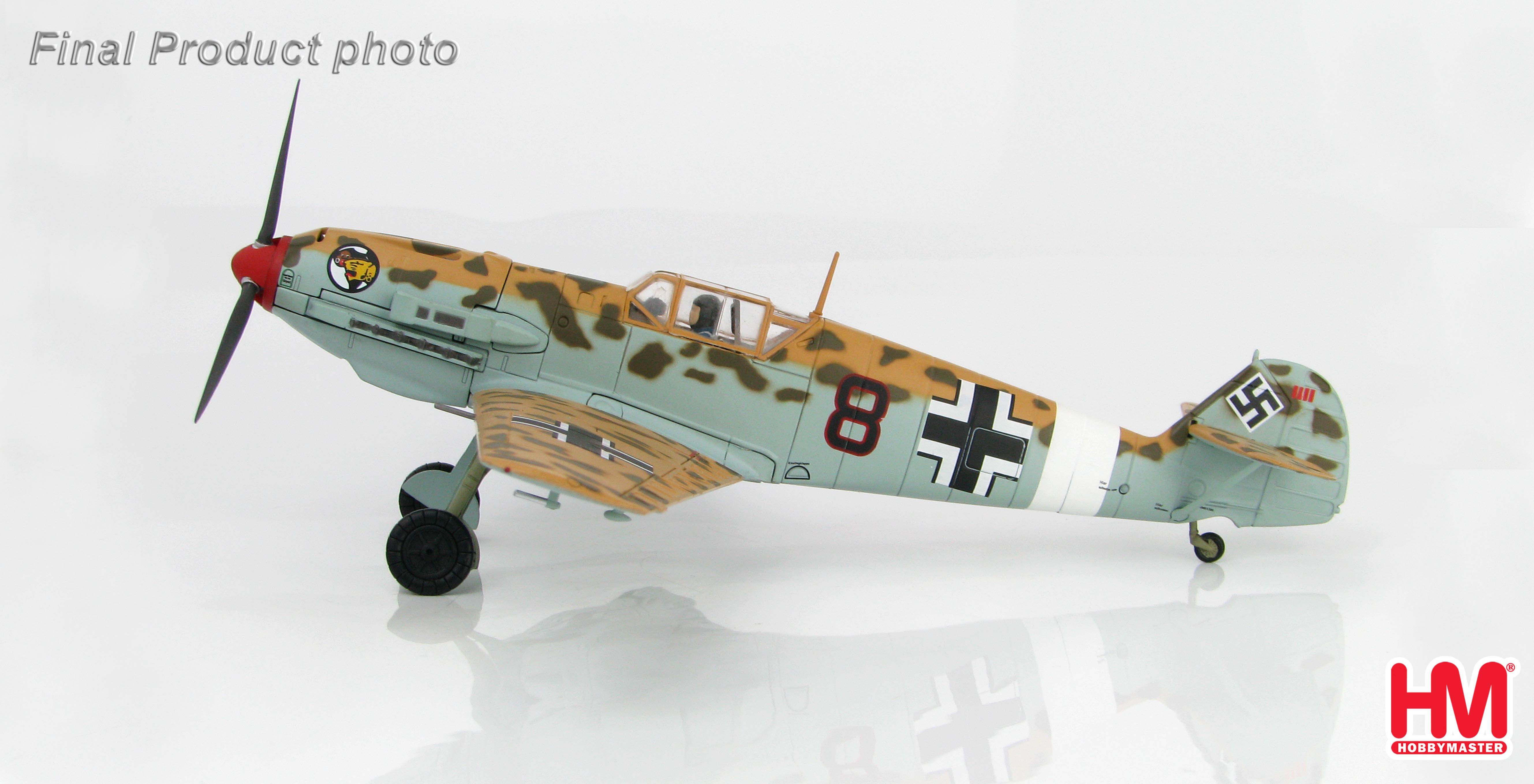

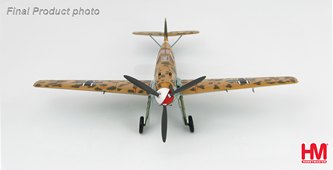

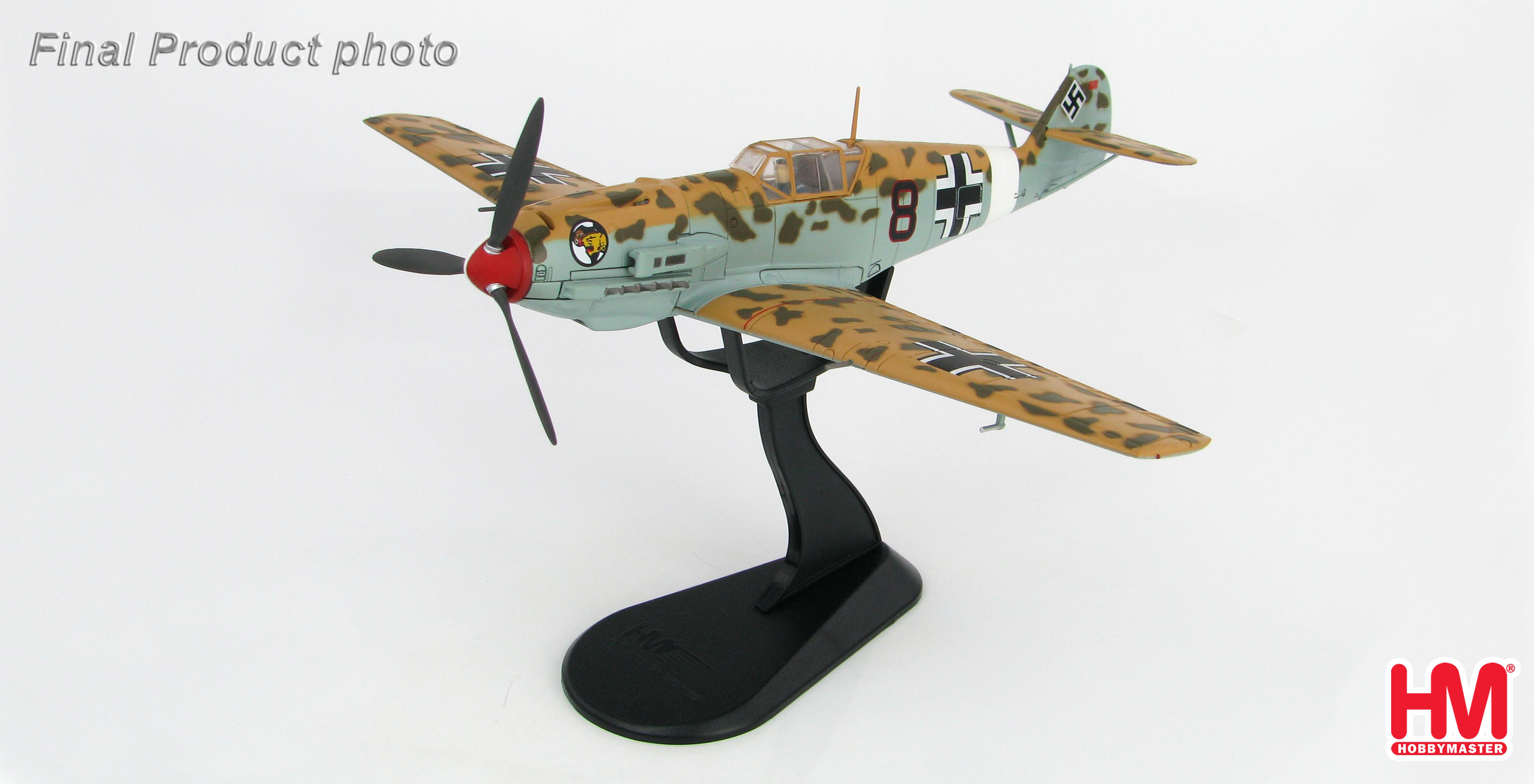

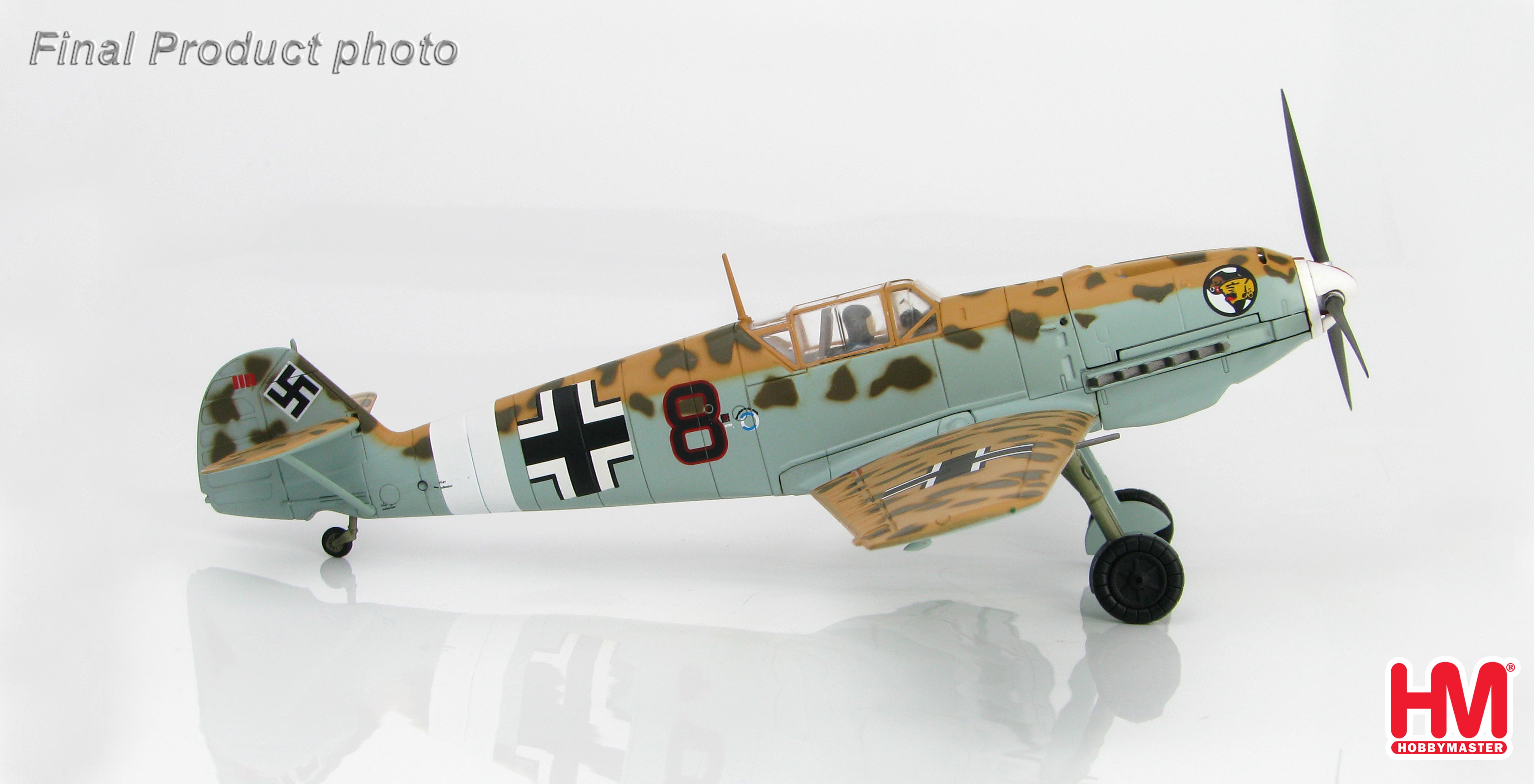

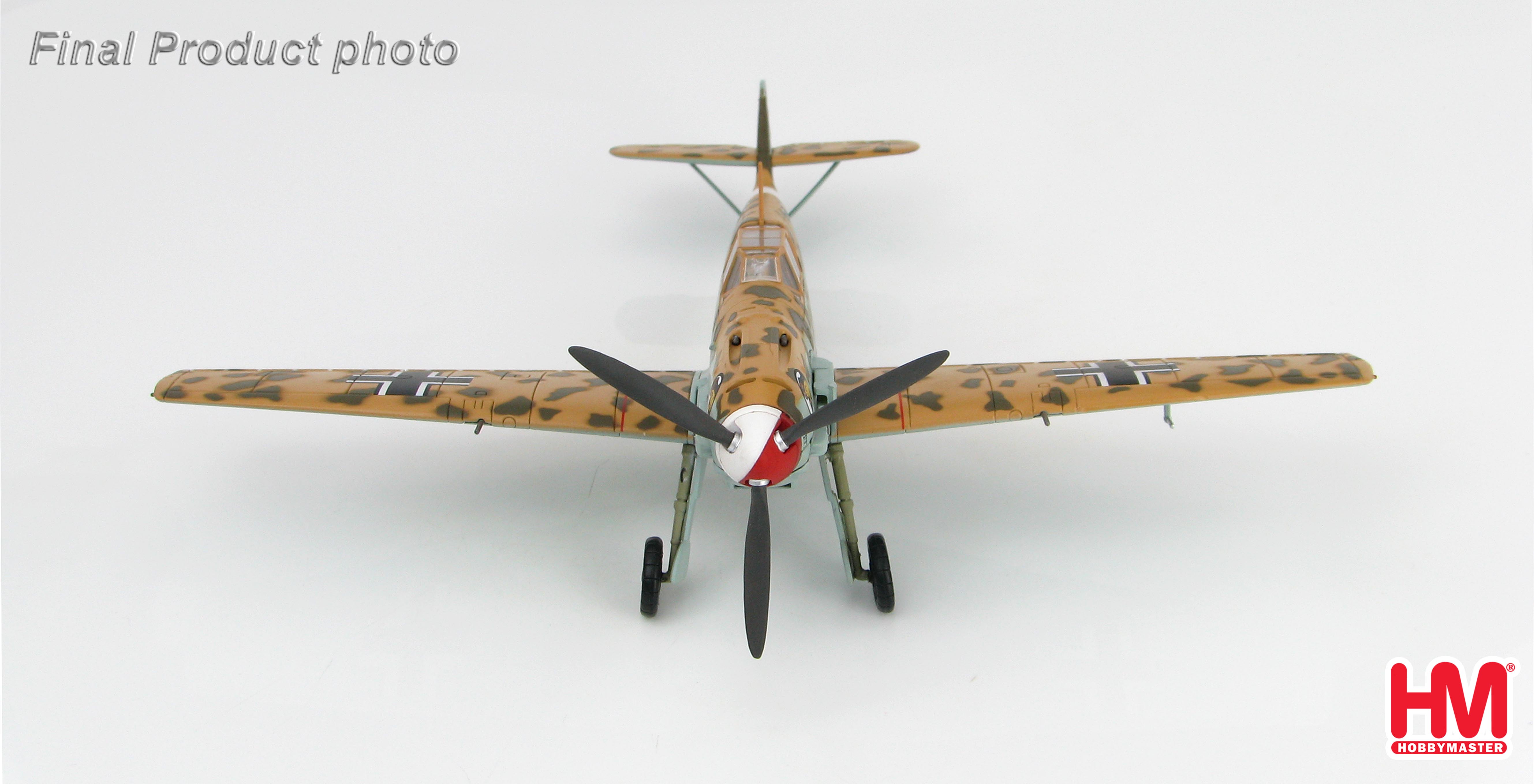

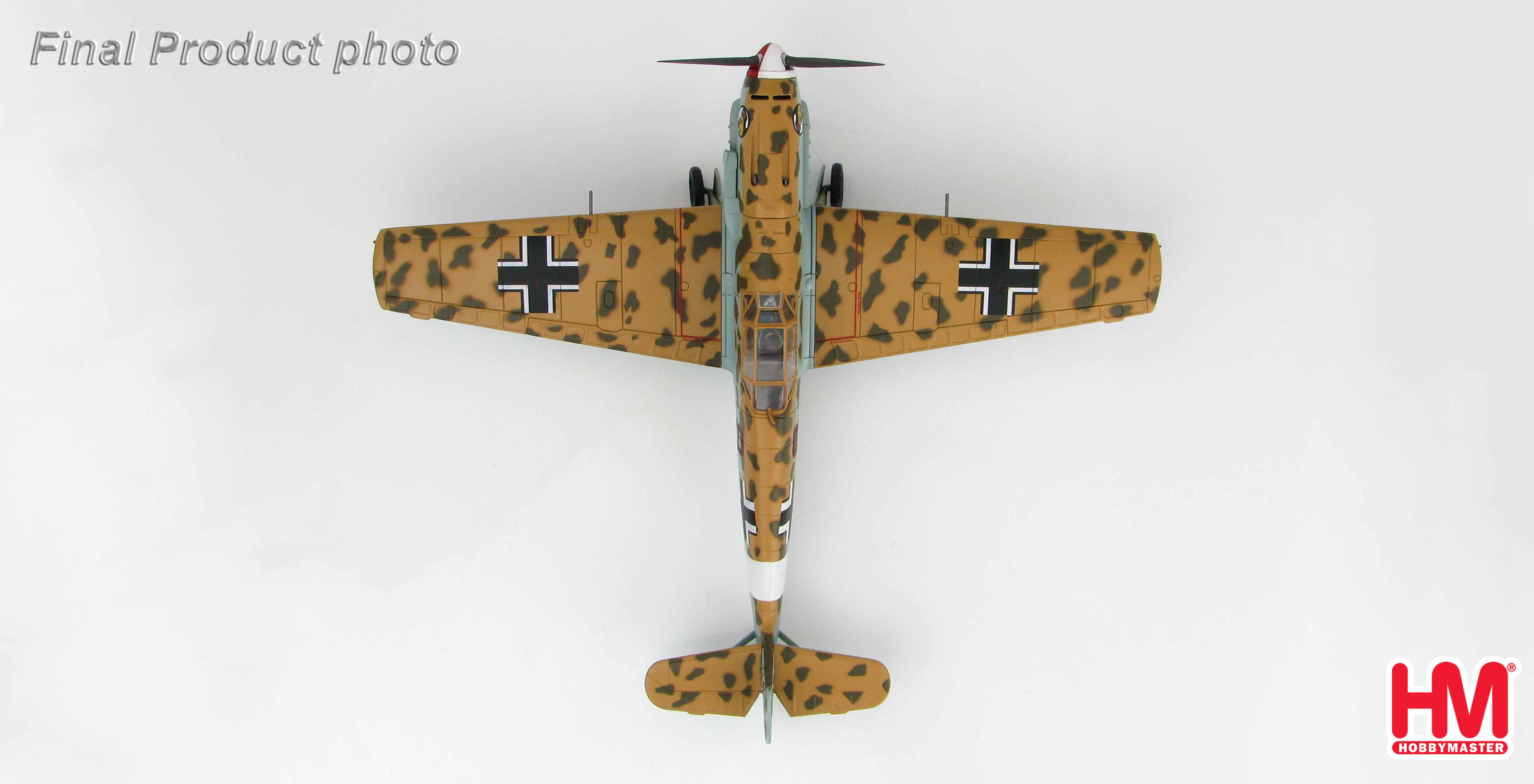

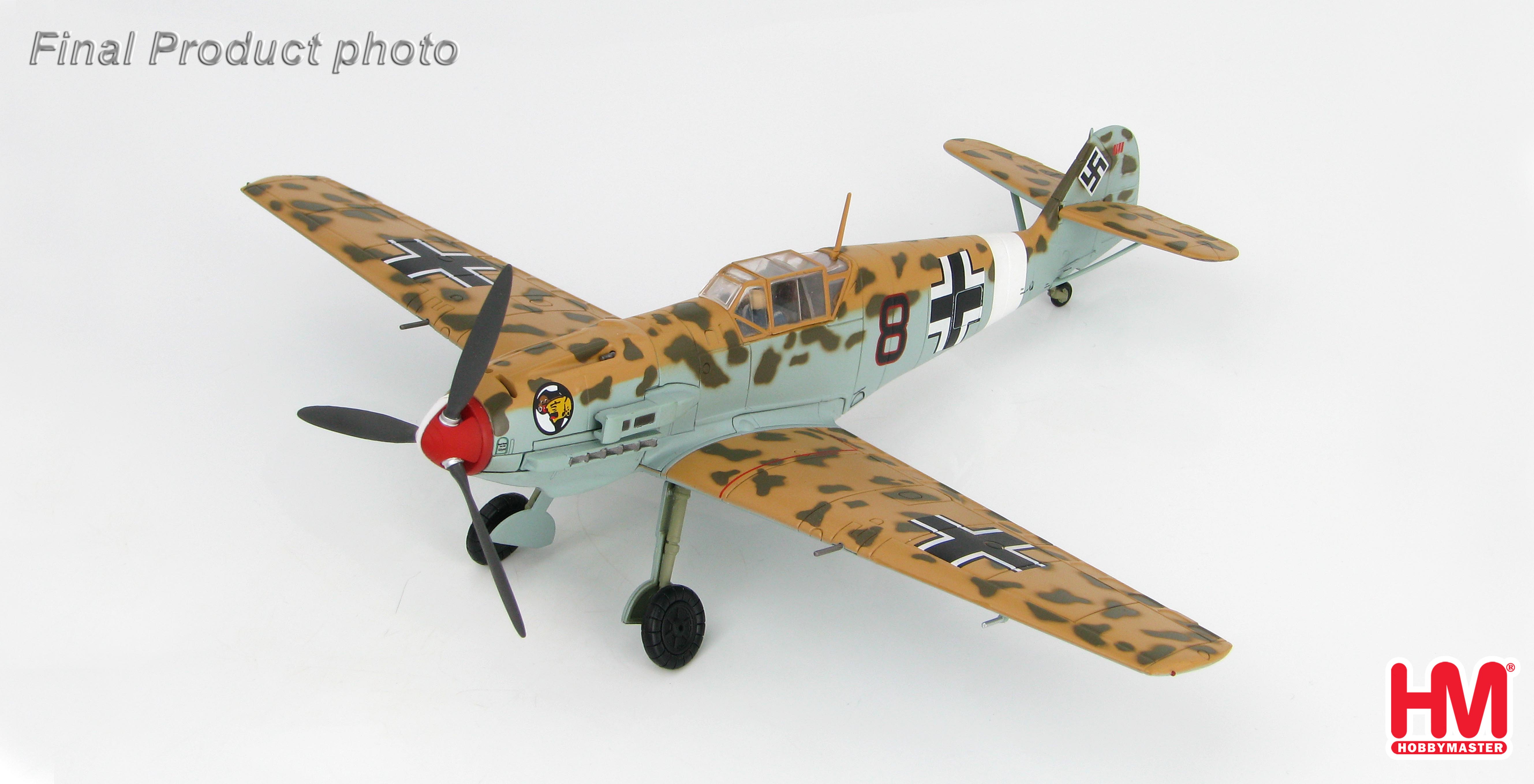

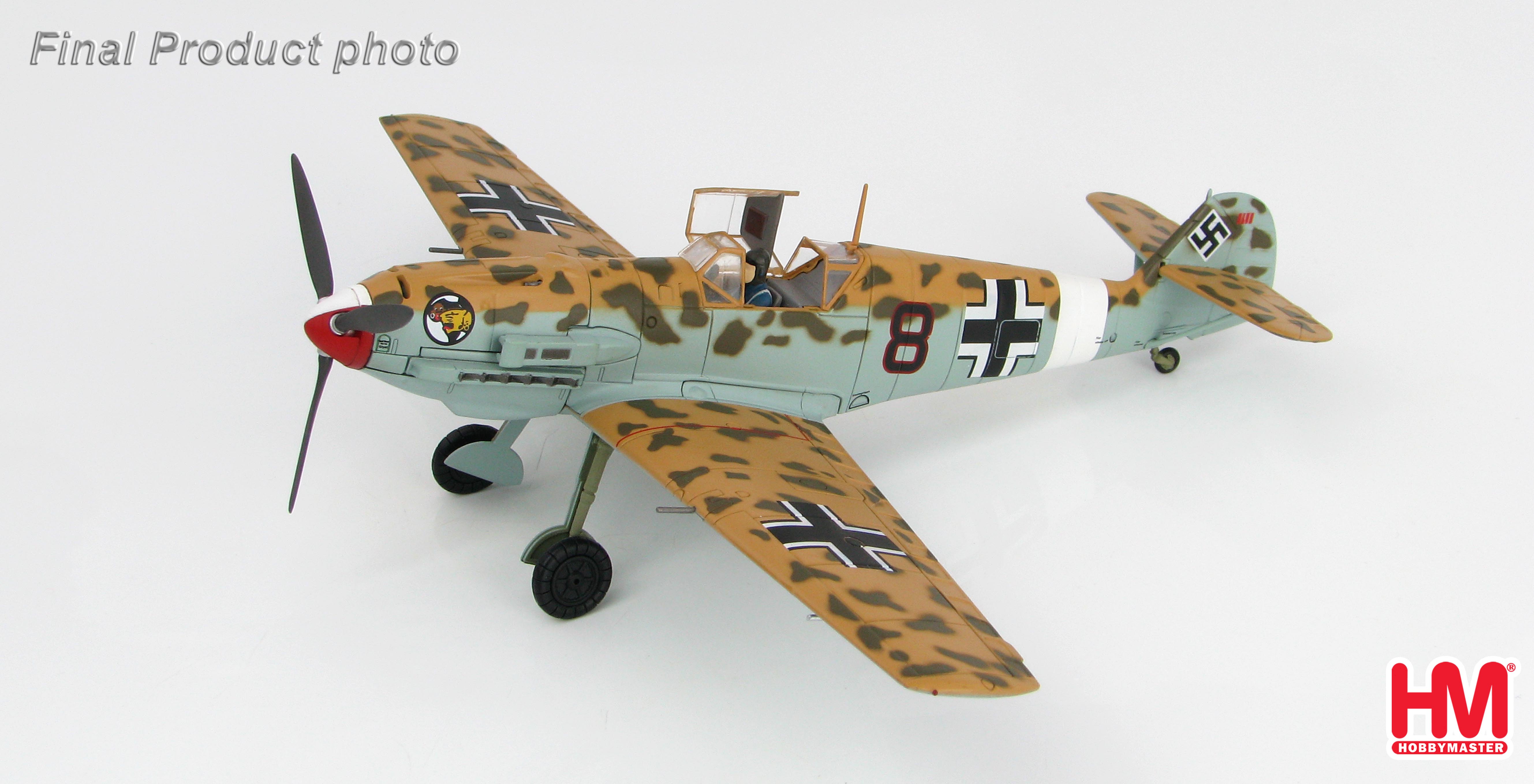

Messerschmitt Bf-109E “Black 8”, contrary to some information, was only flown twice by Leutnant
Werner Schröer and was the main aircraft for Franz Elles of 2./JG 27. In May 1941 Elles scored
his first victory, a Hurricane over Tobruk. He would score his fifth and final victory by downing an
A-20 Boston III on December 10, 1941 before his aircraft was badly damaged by an RAF P-40 on
December 11, 1941. He crash landed his aircraft and became a POW for the remainder of the
war.

Specifications Bf-109E-4
Single-seat day fighter

Crew – 1

Dimensions
Wingspan – 32 ft 4.5 in
Length – 28 ft 8 in
Height – 11 ft 2 in

Performance
Powerplant – 1 X Daimler-Benz DB 601Aa 12 cylinder inverted-vee liquid cooled, 1,150 h.p. @
2,400 rpm on take-off
Propeller – VDM electrically-operated controllable-pitch fully-feathering 3-blade metal screw
Fuel – 88 Imp. Gallons in fuselage behind pilot and under his seat.
Speed
Maximum – 375 mph @ 12,300 ft
Cruising – 298 mph @ 62.5% power
Stall – 75 mph landing with flaps extended
Range – 412 miles @ 62.5% power @ 16,000 ft
Initial Climb Rate – 3,100 ft/min
Service ceiling – 36,000 ft

Weights
Empty – 4,440 lbs
Gross Loaded – 5,520 lbs

Armament
2 X 7.9 mm MG 17 MG, 1,000 rpg mounted on engine crankcase firing through propeller
2 X 20 mm MG FF cannons, 60 rpg mounted in wings
