The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight.
The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation,
Navy and the Islamic Republic of Iran Air Force only. The name “Tomcat” is said to come from the
call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving
Grumman aircraft feline names.
The VF-111 “Sundowners” began flying the Grumman F-14A Tomcat in October 1978 and
deployed twice onboard the USS Kitty Hawk. In March 1983 VF-111 sailed with the USS Carl
Vinson on its maiden world cruise. During the eight months of deployment VF-111 carried out
1,400 carrier landings and 3,000 flight hours. In 1986 VF-111 flew more than 4,000 flight hours
and accumulated 7,000 hours of accident free flight hours. Ironically F-14A 160660 crashed July
16, 1992 ending the accident free record.
|

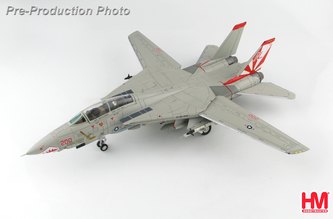

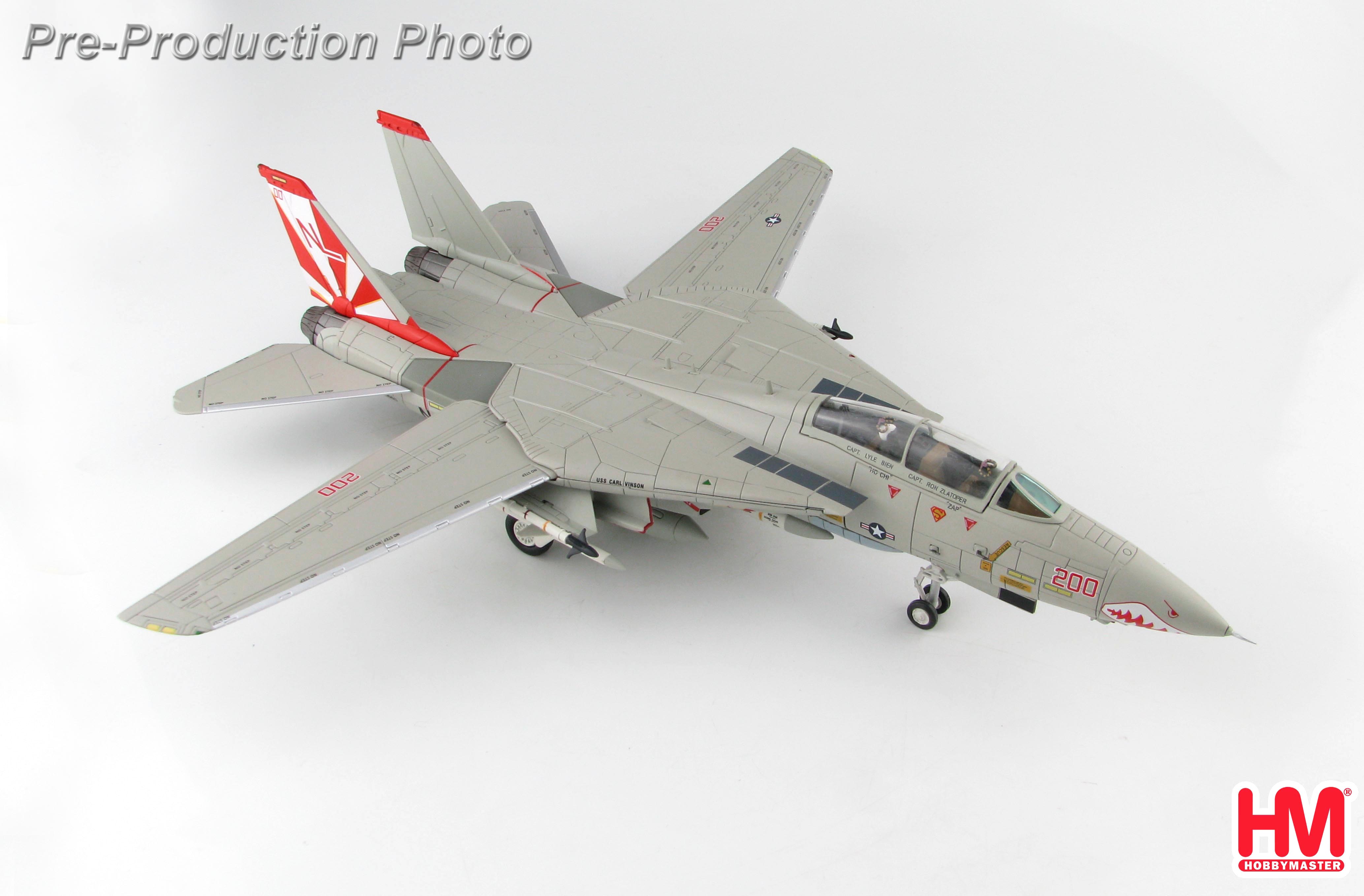

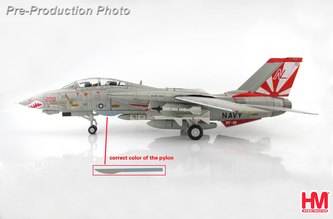

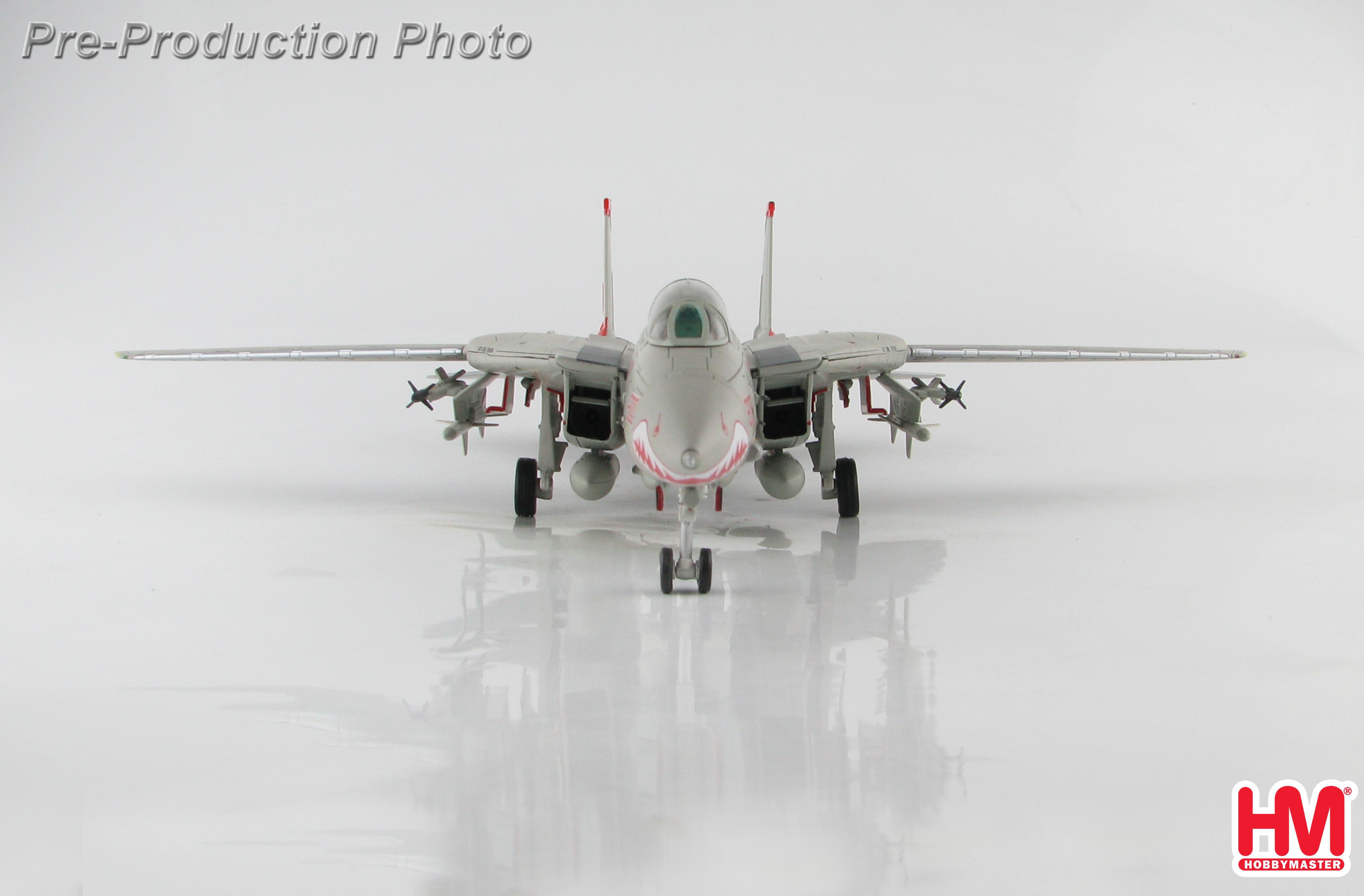

Hobby Master 1/72 Air Power Series
HA5228
Grumman F-14A Tomcat "Super CAG"
160660, VF-111 "Sundowners", USS Carl Vinson,
1986
|
Professionally painted.
Great attention to detail.
All markings are Tampoed (pad applied).
Option to display the model on a stand that is provided.
Model can be shown with the landing gear in the down or up positions.
Optional armament provided.
Canopy can be displayed open or closed.
Pilot figure included.
Extremely heavy metal with a minimum of plastic.
Highly collectable.
Specifications for the Grumman Aerospace F-14 Tomcat
Role - Carrier-based multi-role strike fighter
First Flight – F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990
Last Production Year – F-14D July 20, 1992
Number All Variants Produced – 710
Crew - 2 (pilot and radar intercept officer).
Type F-14A F-14B (F-14A+) F-14D
Dimensions
Length 62 ft 8 inches 62 ft 8 inches 62 ft 8 inches
Wingspan (Swept) 38 ft 2.5 inches 38 ft 2.5 inches 38 ft 2.5 inches
Wingspan (Unswept) 64 ft 1.5 inches 64 ft 1.5 inches 64 ft 1.5 inches
Height 16 ft 16 ft 16ft
Performance
Powerplants
F-14A 2 x P&W TF-30-P414A F-14B 2 x GE F-110-GE-400 F-14D 2 x GE F-110-GE-400
Maximum Thrust
F-14A 34,154 lbs F-14B 56,400 lbs F-14D 56,400 lbs
Maximum Speed
F-14A 1,544 mph (Mach 2.38) F-14B 1,544 mph (Mach 2.38) F-14D 1,544 mph (Mach 2.38)
Ceiling
F-14A 50,000+ ft F-14B 53,000+ ft F-14D 53,000+ ft
Range
F-14A 1,730 nm F-14B 2,050 nm F-14D 2,050 nm
Weight
Empty
F-14A 40,104 pounds F-14B 41,780 pounds F-14D 43,735 pounds
Maximum
F-14A 72,000 pounds F-14B 74,349 pounds F-14D 74,349 pounds
Armament
1 x MK-61A1 Vulcan 20mm cannon
Maximum Weight – 13,000 lbs. Of Combined Ordnance
Air-Air Missiles
6 AIM-7 Sparrows
4 AIM-9 Sidewinder
6 AIM-54 Phoenix
Air-To-Ground
MK-82 (500 lbs.)
4 MK-83 (1,000 lbs.)
4 MK-84 (2,000 lbs.)
MK-20 cluster bombs
4 GBU-10 LGB
GBU-12 MK-82 LGB
4 GBU-16 MK-83 LGB
4 GBU-24 MK-84 LGB
|
       |
