The North American A3J Vigilante first flew on August 31, 1958 and was in service until
November 1979. Originally designed as a Mach 2 all-weather bomber; the aircraft eventually had
a new role of high-speed reconnaissance. In 1962 the Vigilante received new designators, the
original A3J-1 became the A-5A, A3J-2 became A-5B while the reconnaissance version A3J-3P
became the RA-5C and first flew June 30, 1962. The Vigilante was the largest and fastest aircraft
to operate from an aircraft carrier. The RA-5C was heavily used in the Vietnam War.

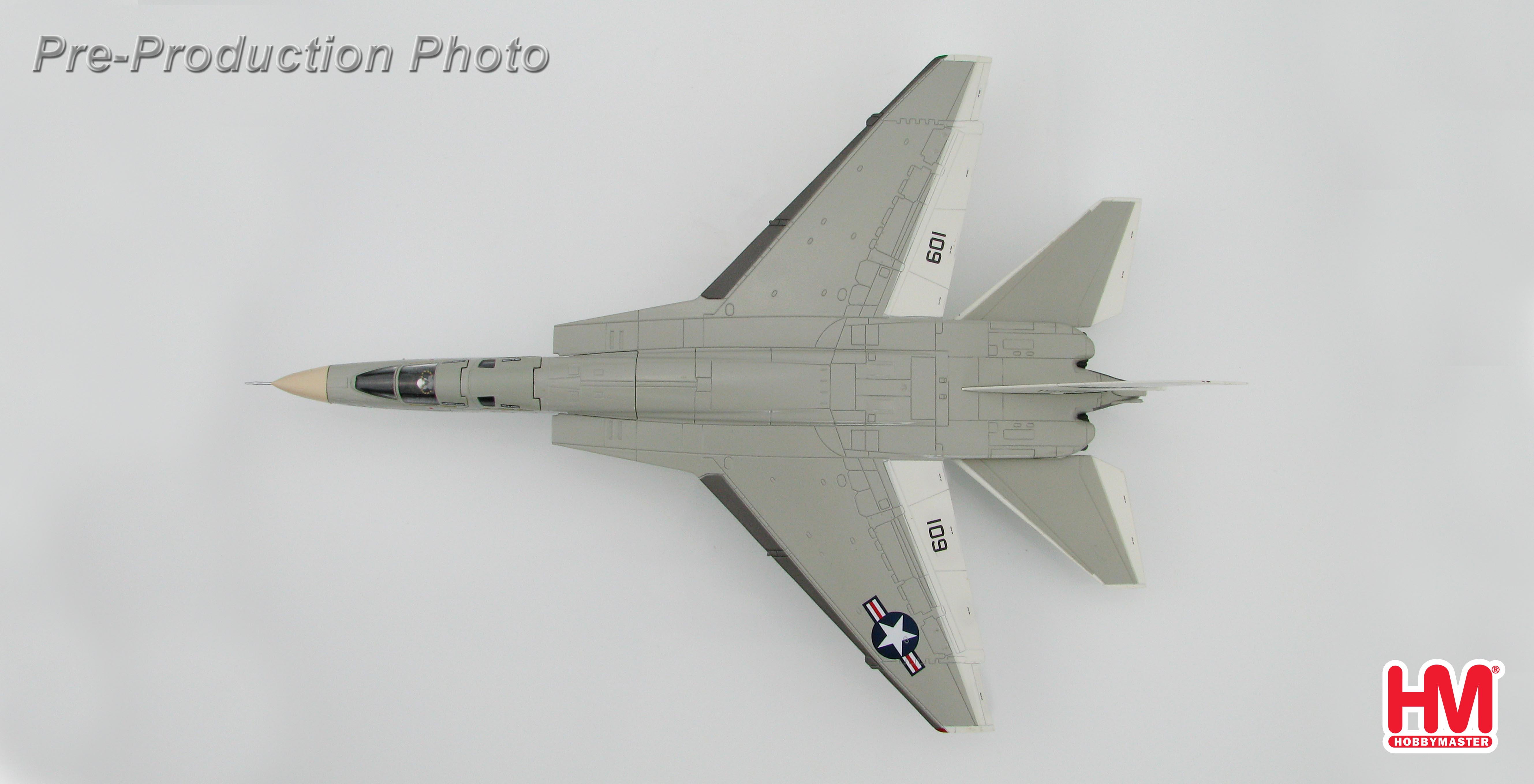

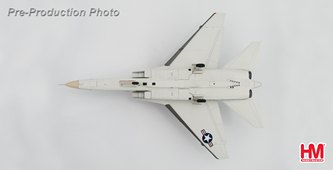

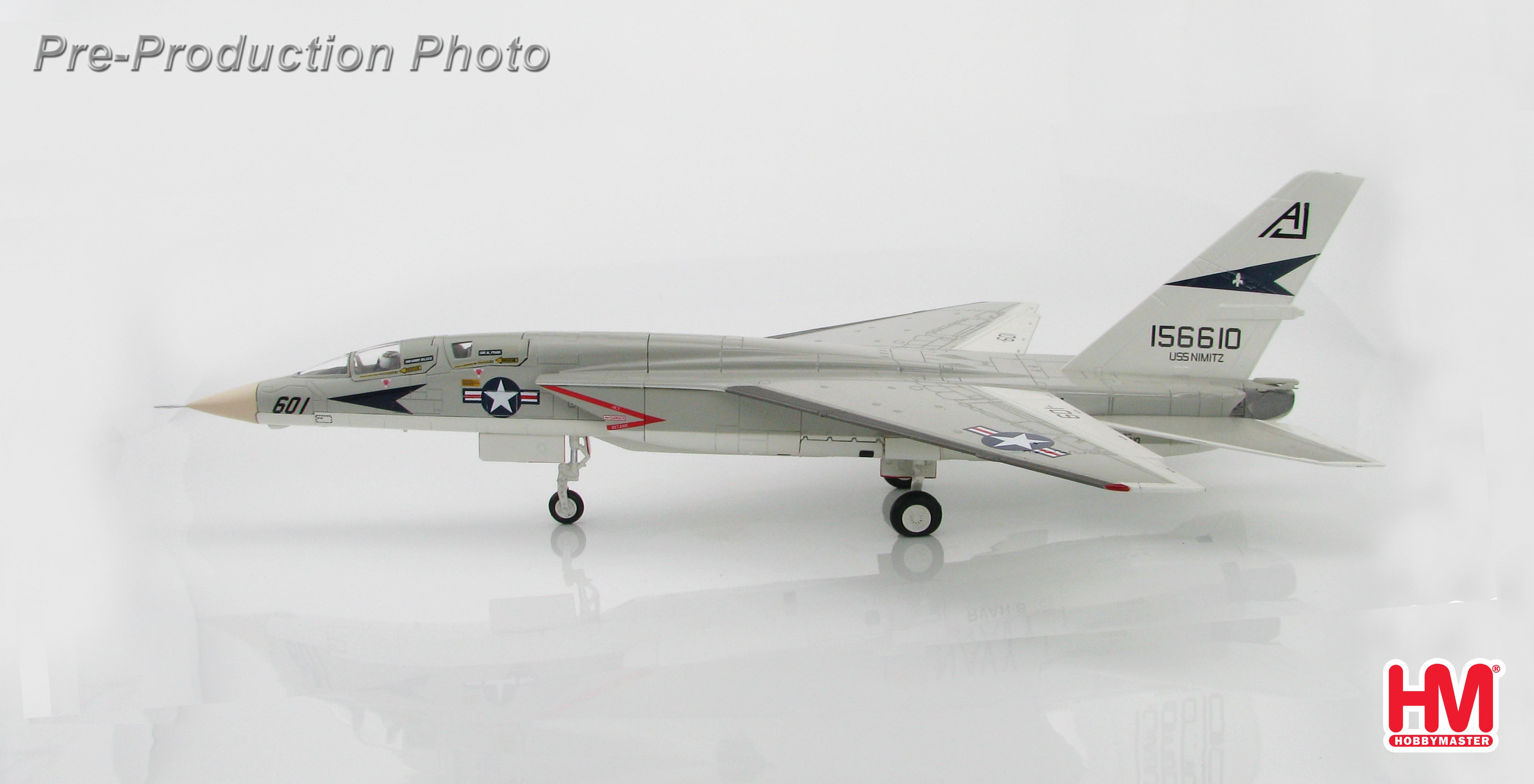

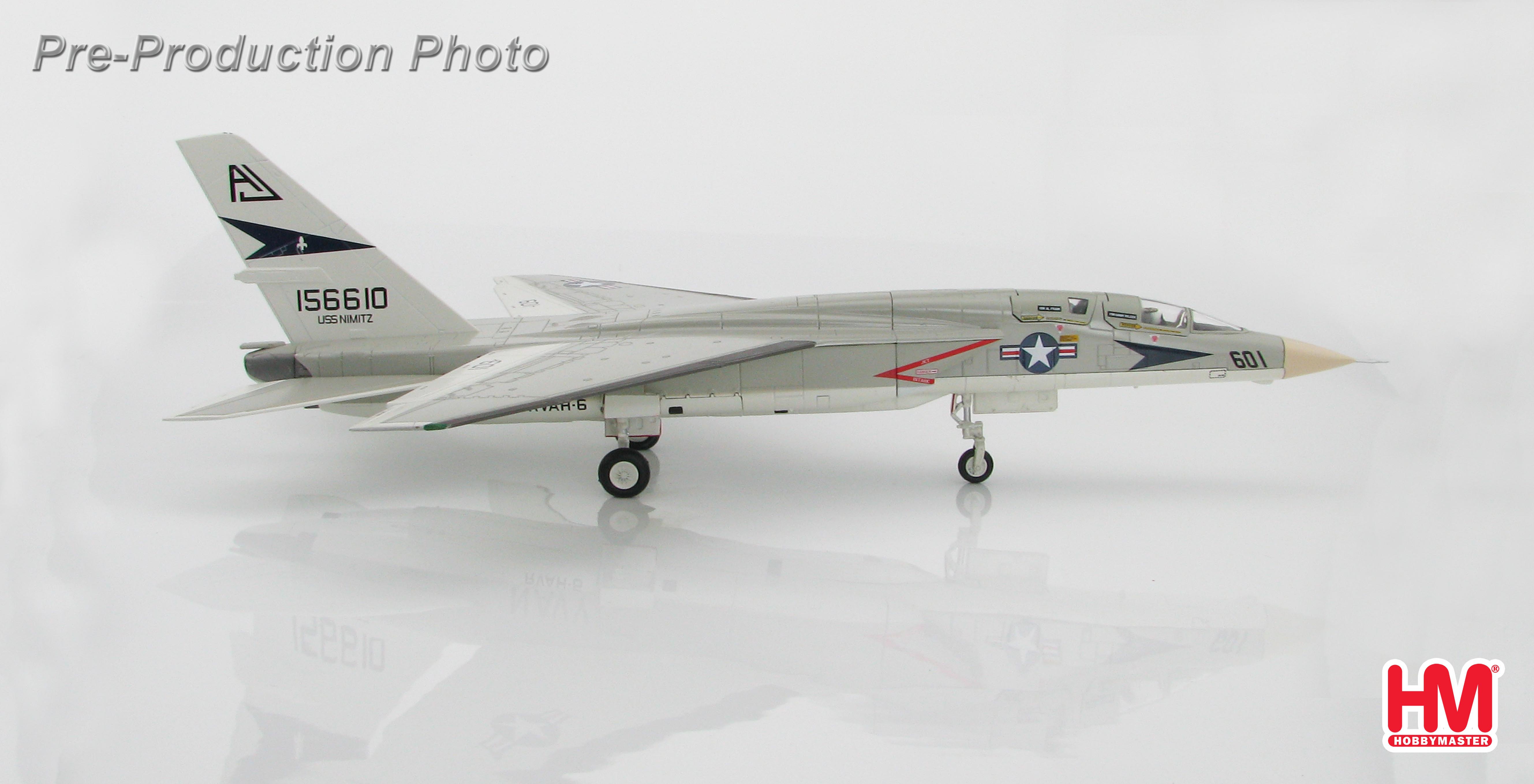

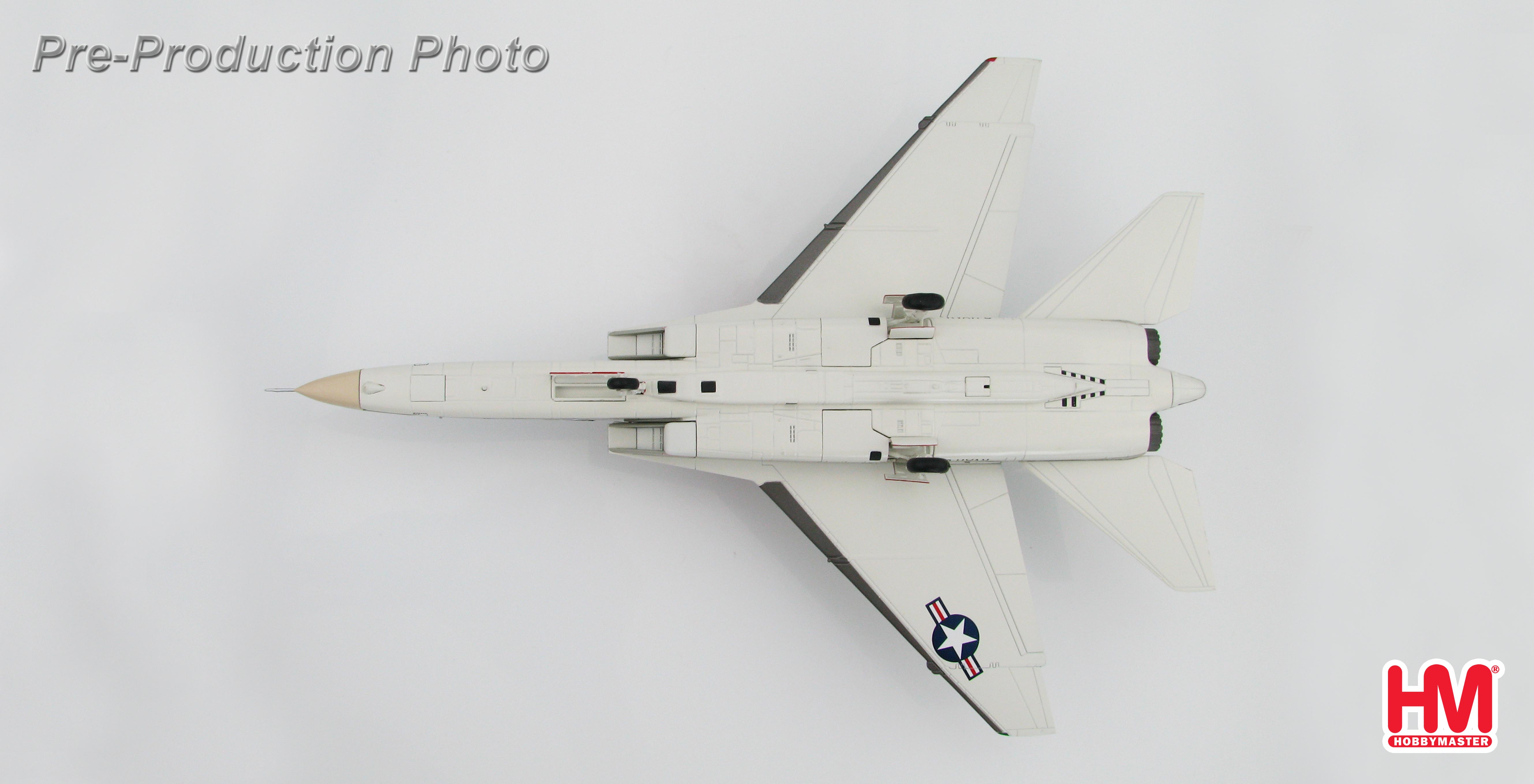

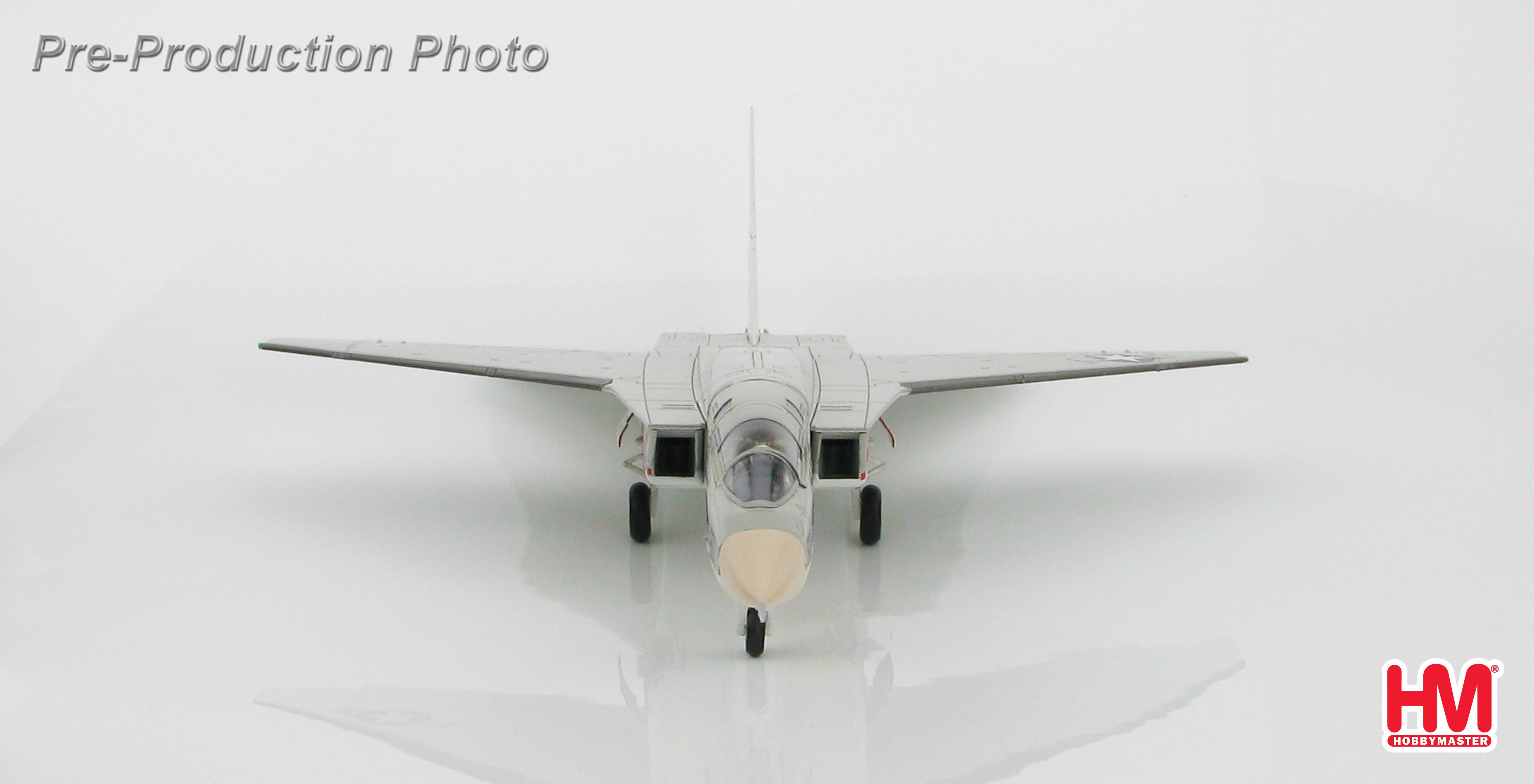

North American RA-5C Vigilante 156610 was manufactured as C/N 316-3 and delivered to the
USN in June 1969. First assigned to RVAH-3 and then in late 1969 until early 1972 with
RVAH-11. The rest of 1972 was spent with RVAH-1 and later with RVAH-5, RVAH-3 and from
1976 and into 1978 with RVAH-6 “Fleurs”. In 1978 RVAH-6 RA5C 156610 was assigned to
Cdr. Gordy Wileen and Cdr. Al Frank on the USS Nimitz. On October 31 1978 with RVAH-12
156610 was written off at NAS Rota Spain.

Specifications for the North American RA-5C Vigilante
Crew – 2 / tandem twin cockpits x Pilot in front cockpit, Reconnaissance Attack Navigator in the
rear
Number of Aircraft – 91 new built, converted aircraft 43 A-5A and the first 6 A-5B = 140

Dimensions
Length – 76 ft 7 in   (23.3 m)
Wingspan – 53 ft 2in   (16.2 m)
Height – 19 ft 5 in   (5.9 m)

Weight
Empty – 37,500 lb   (17,000 kg)
Maximum – 79,600 lb   (36,100 kg)

Performance
Engines – 2 x General Electric J79-GE-10 turbojets with each engine producing 17,859 lbs of
thrust.
Speed
Maximum – 1,320 mph   (2,125 km/h)
Service Ceiling – 52,100 ft   (15,900 m)
Range – 2,050 miles   (3,300 km)

Avionics
AN/ASB-12 Bombing & Navigation Radar
Westinghouse AN/APD-7 SLAR
Sanders AN/ALQ-100 E/F/G/H-Band Radar Jammer
Sanders AN/ALQ-41 X-Band Radar Jammer
AIL AN/ALQ-61 Radio/Radar/IR ECM Receiver
Litton ALR-45 "COMPASS TIE" 2-18 GHz Radar Warning Receiver
Magnavox AN/APR-27 SAM Radar Warning Receiver
Itek AN/APR-25 S/X/C-Band Radar Detection and Homing Set
Motorola AN/APR-18 Electronic Reconnaissance System
AN/AAS-21 IR Reconnaissance Camera
