The Lockheed F-35 is an advanced stealth fifth generation fighter combining speed and superb
agility. There are three variants; F-35A, B and C. The F-35A CTOL (Conventional Take Off and
Landing) and has four internal weapons stations in two weapons bays plus three optional
external weapons stations. The F-35B STOVL (Short Take Off Vertical Landing) variant while the
F-35C is a CV (Carrier Variant). The F-35 will replace the USAF A-10 and F-16, the F/A-18 for the
USN and the F/A-18 and AV-8B Harrier for the USMC.

The 466th FS “Diamondbacks” are assigned to the 419th FW located at Hill AFB, Utah. The
419th FW is only one of forty U.S. Air Force Reserve units and is the only AFRC (Air Force
Reserve Command) in Utah. In September 2015 Hill AFB received the first F-35 and on

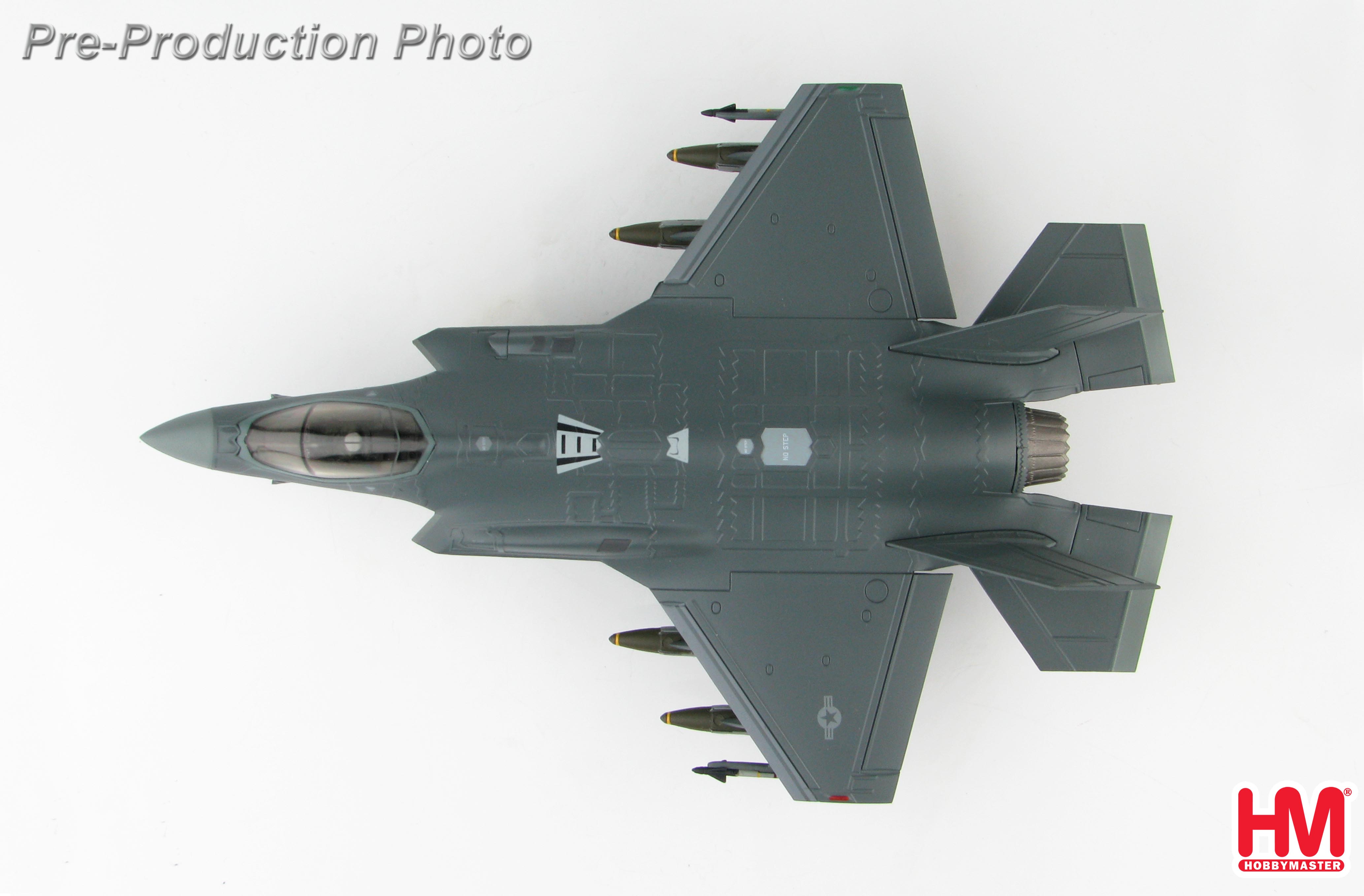

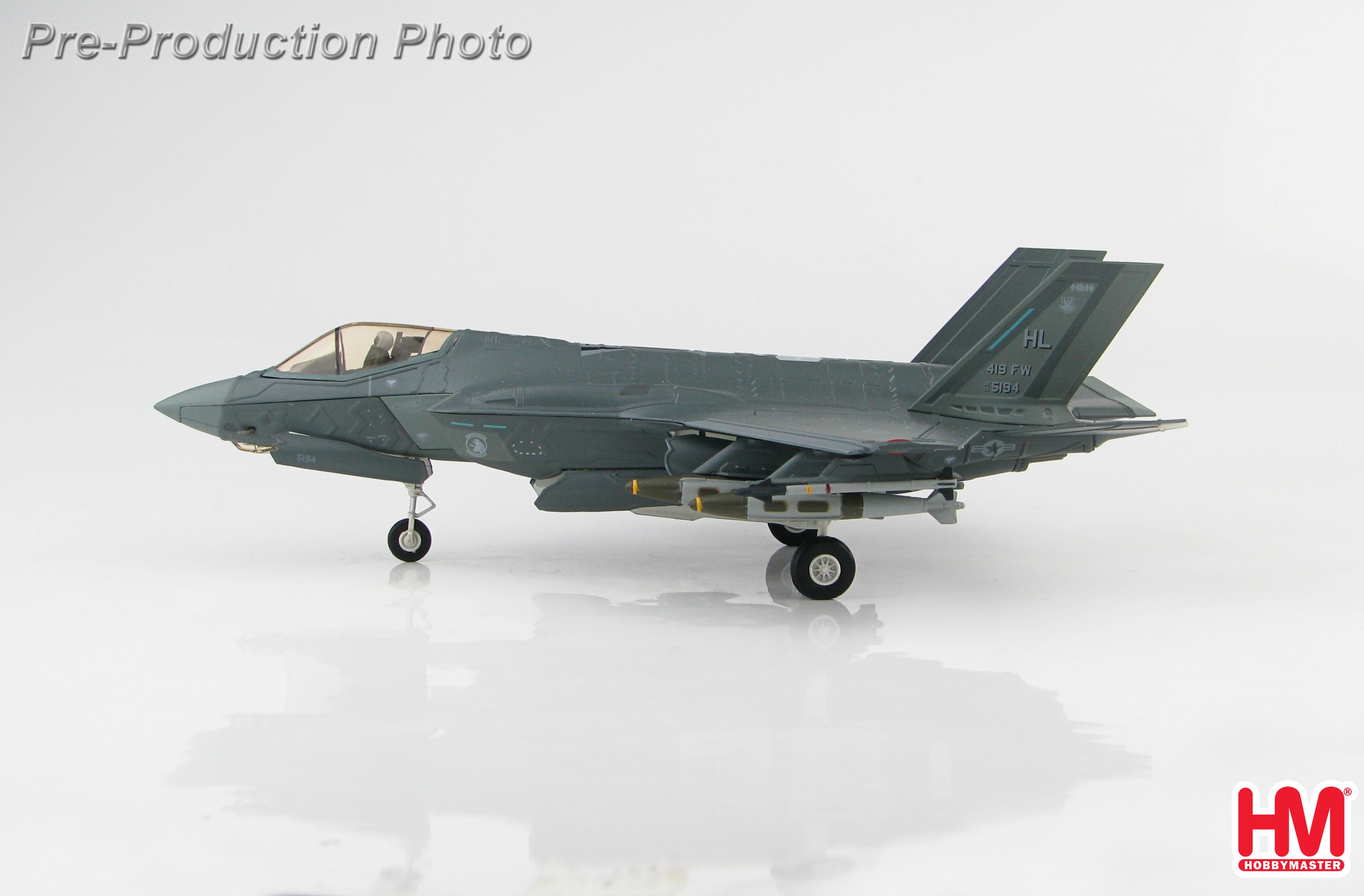

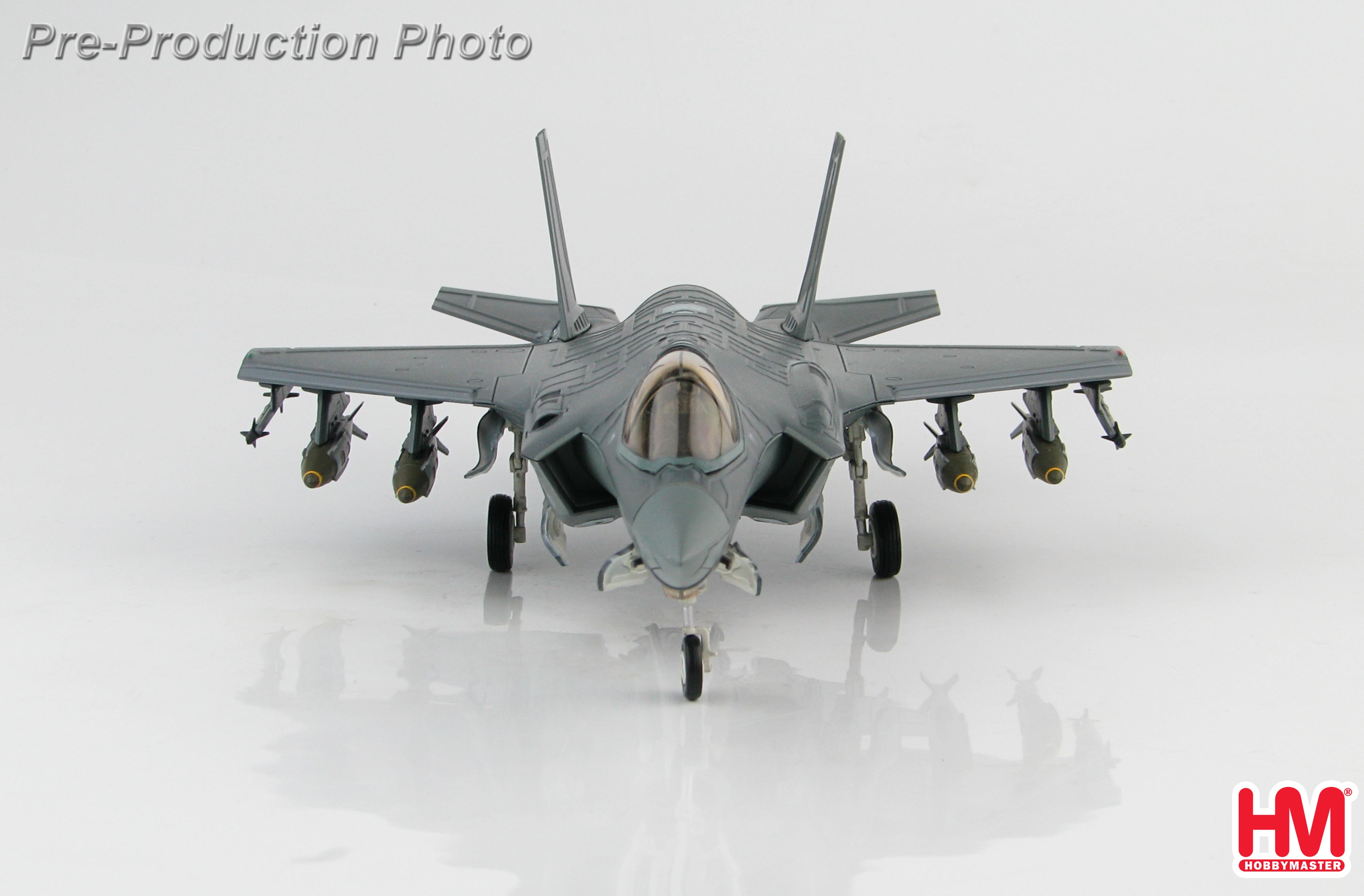

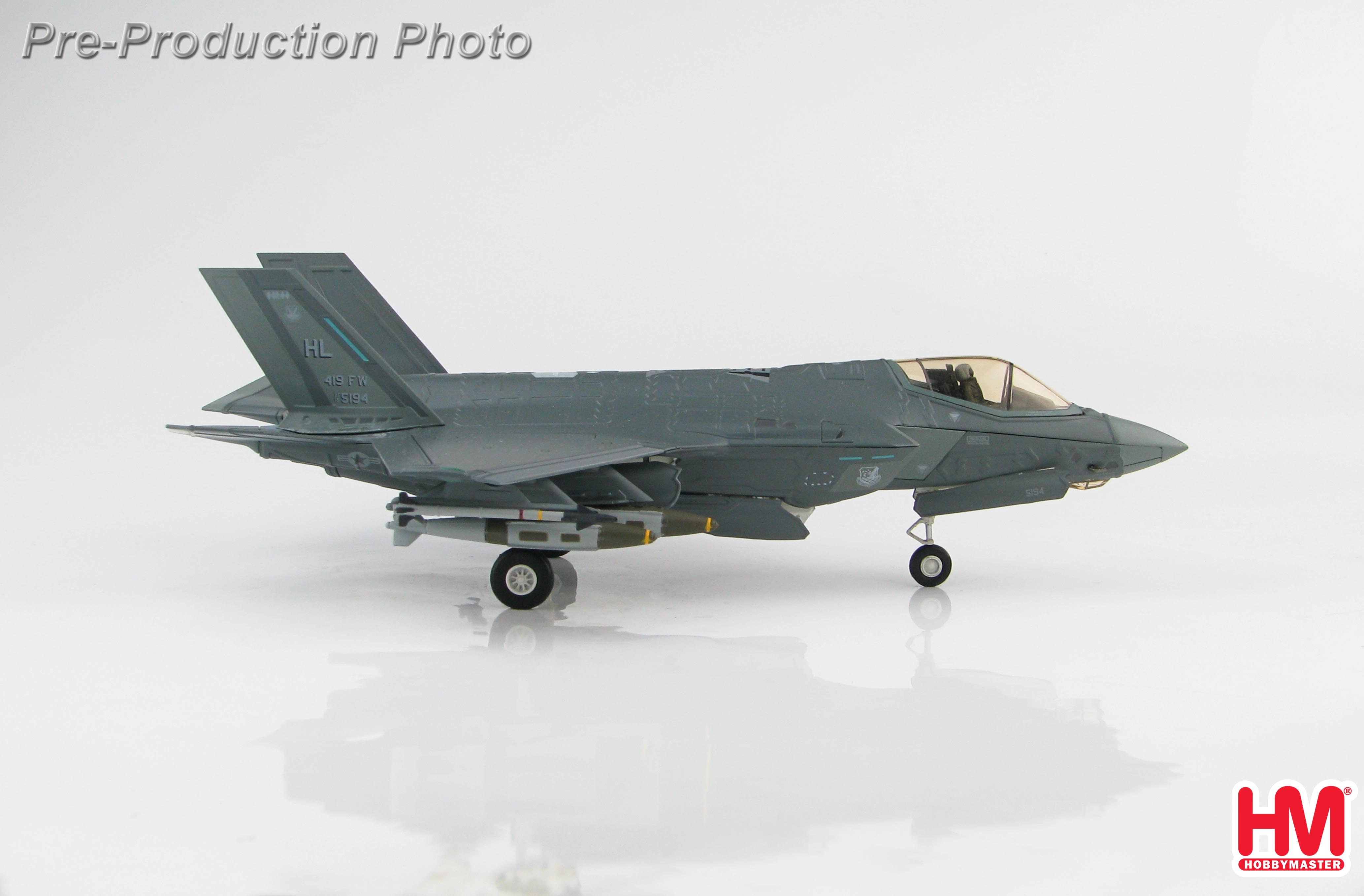

December 10, 2018 F-35A 15-5194 was delivered to the Hill AFB 419th FW and the 466th FS.
The 419th FW borrows aircraft on an as-needed basis from the operational unit 388th FW/ 34th
FS Rams they share Hill AFB with.

Specifications Lockheed Martin F-35 Lightning II

Role – Multi-role stealth fighter

First Flight – December 16, 2006

F-35A CTOL – 1
F-35B STOVL – 1
F-35C CV – 1

Powerplant
F-35A – 1 x Pratt & Whitney F135-PW-100, 40,000 lbs thrust with afterburner,25,000 lbs without.
F-35B – 1 x Pratt & Whitney F135-PW-600, 38,000 lbs thrust with afterburner,26,000 lbs without
and 40,500 lbs vertical.
F-35C - 1 x Pratt & Whitney F135-PW-100, 40,000 lbs thrust with afterburner,25,000 lbs without.

Internal Fuel Capacity
F-35A - 18,250 lbs (8,278 kg)
F-35B – 13,500 lbs (6,125 kg)
F-35C – 19,750 lbs (8,960 kg)

Weights
Empty
F-35A – 29,300 lbs (13,000 kg)
F-35B – 32,300 lbs (14,700 kg)
F-35C – 34,800 lbs (15,800 kg)
Maximum
F-35A – 70,000 lbs (31,800 kg)
F-35B – 60,000lbs (27,300 kg)
F-35C – 70,000 lbs (31,800 kg)

Dimensions
F-35A
Length – 51.4 ft (15.7 m)
Wingspan – 35 ft (10.7 m)
Height – 14.4 ft (4.38 m)
F-35B
Length – 51.2 ft (15.6 m)
Wingspan – 35 ft (10.7 m)
Height – 14.3 ft (4.36 m)
F-35C
Length – 51.5 ft (15.7 m)
Wingspan – 43 ft (13.1 m)
Height – 14.7 ft (4.48 m)

Performance
Speed with full internal weapons load
F-35A – Mach 1.6
F-35B – Mach 1.6
F-35C – Mach 1.6

Combat Radius with internal fuel
F-35A – 590 nm (1,093 km)
F-35B – 450 nm (833 km)
F-35C – 600 nm (1,100 km)

Range with internal fuel
F-35A – 1,200 nm (2,200 km)
F-35B – 900 nm (1,667 km)
F-35C – 1,200 nm (2,200 km)

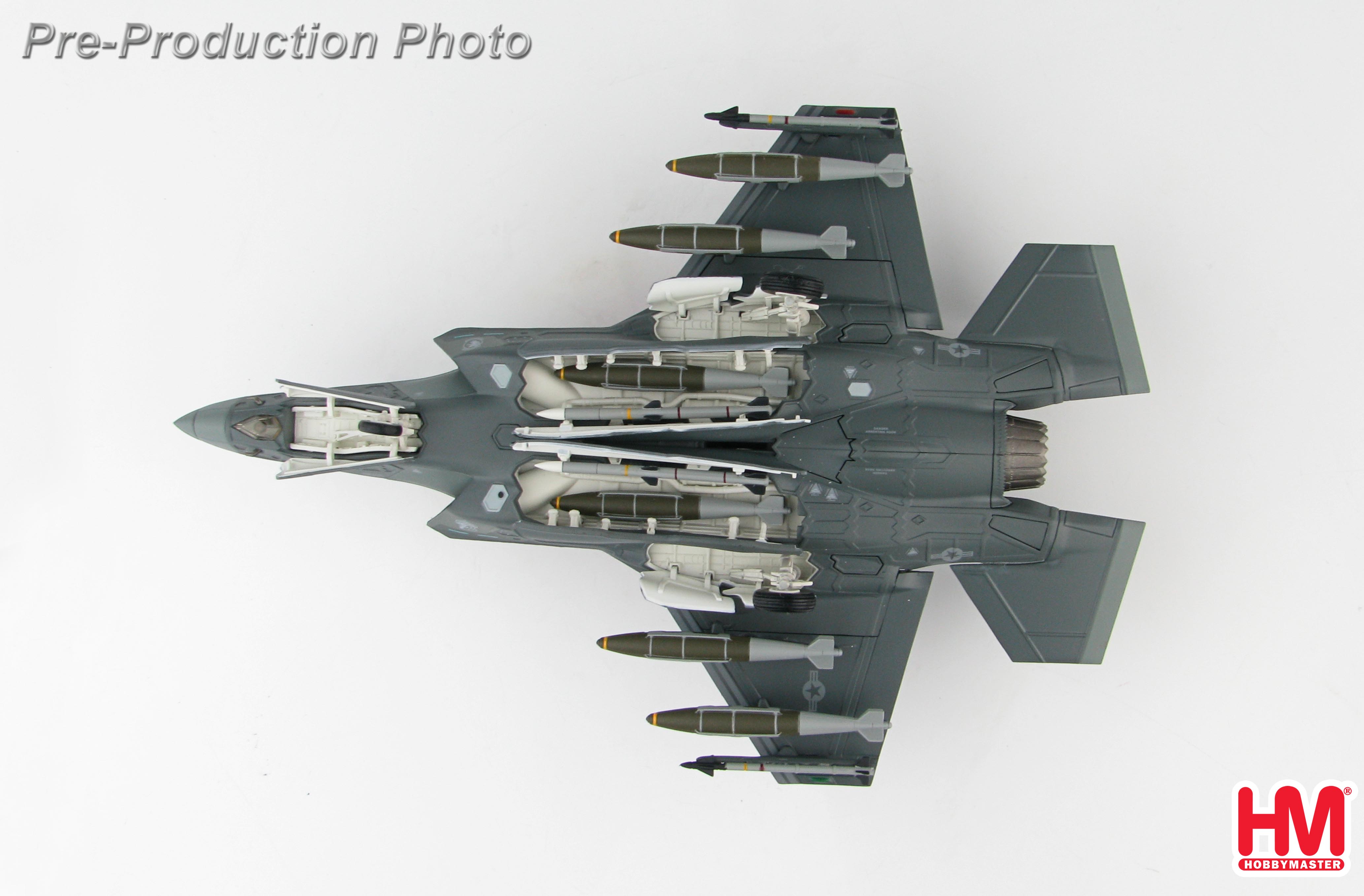

Weapons (Standard Internal)
F-35A
1 x 25 mm GAU-22/A cannon
2 x AIM-120C air-to-air missiles
2 x 2,000 pound GBU-31 JDAM guided bombs
Weapons Payload – 18,000 lbs (8,160 kg)
F-35B
2 x AIM-120C air-to-air missiles
2 x 1,000 lb GBU32 JDAM guided bombs
F-35C
2 x AIM-120C air-to-air missiles
2 x 2,000 pound GBU-31 JDAM guided bombs
