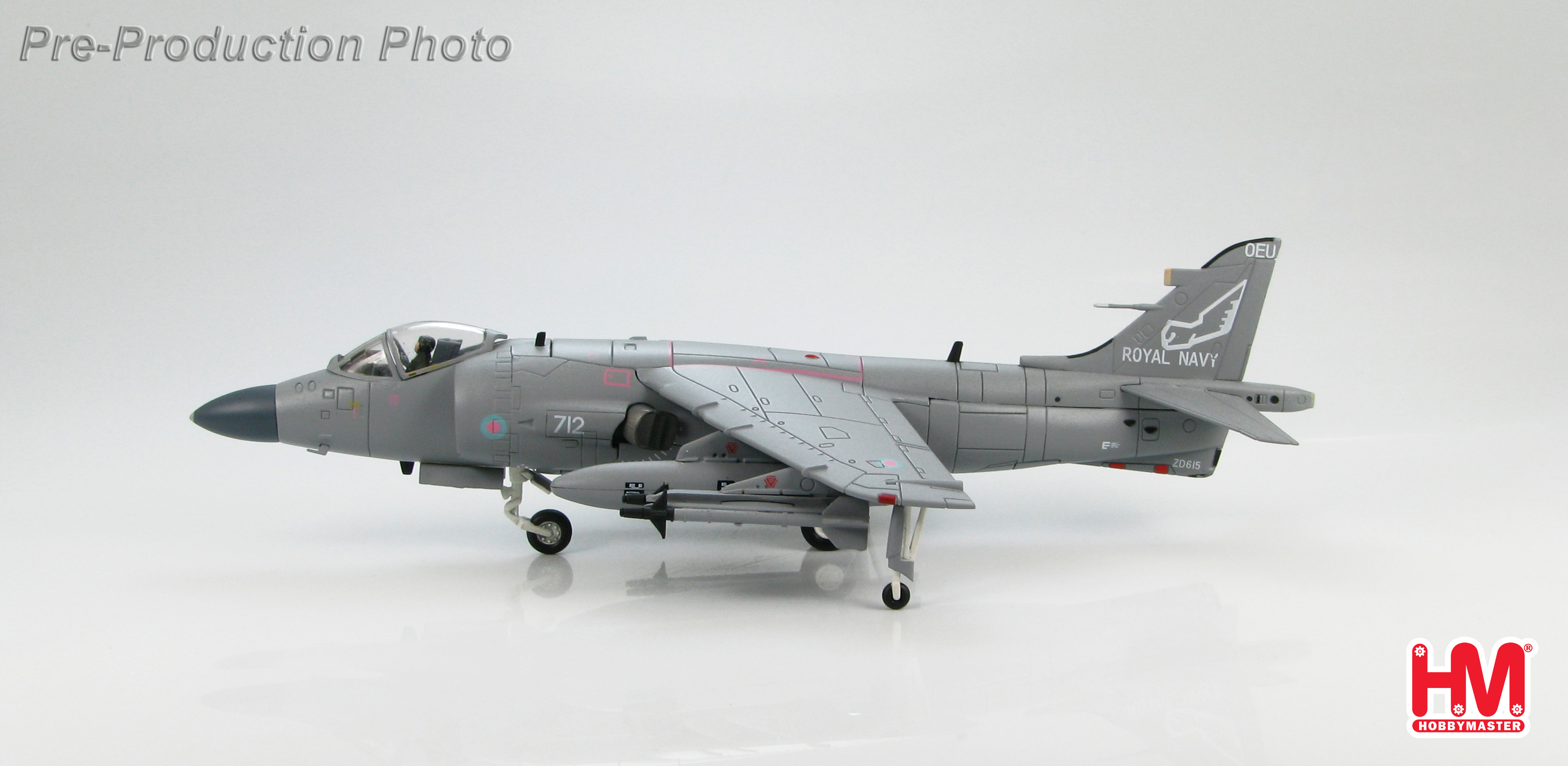

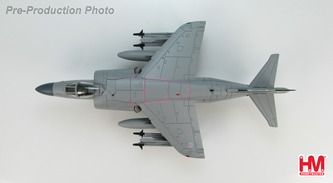

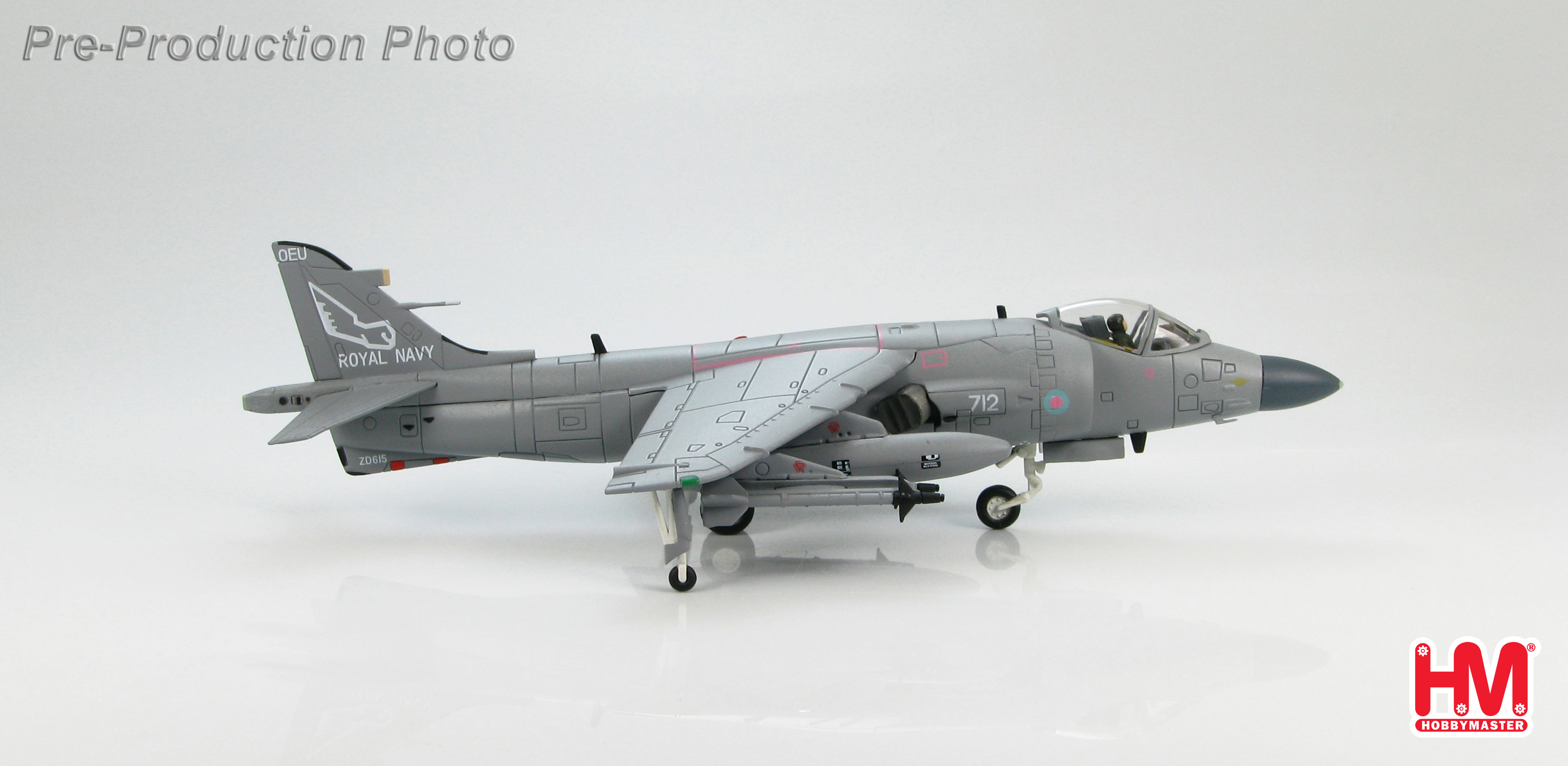

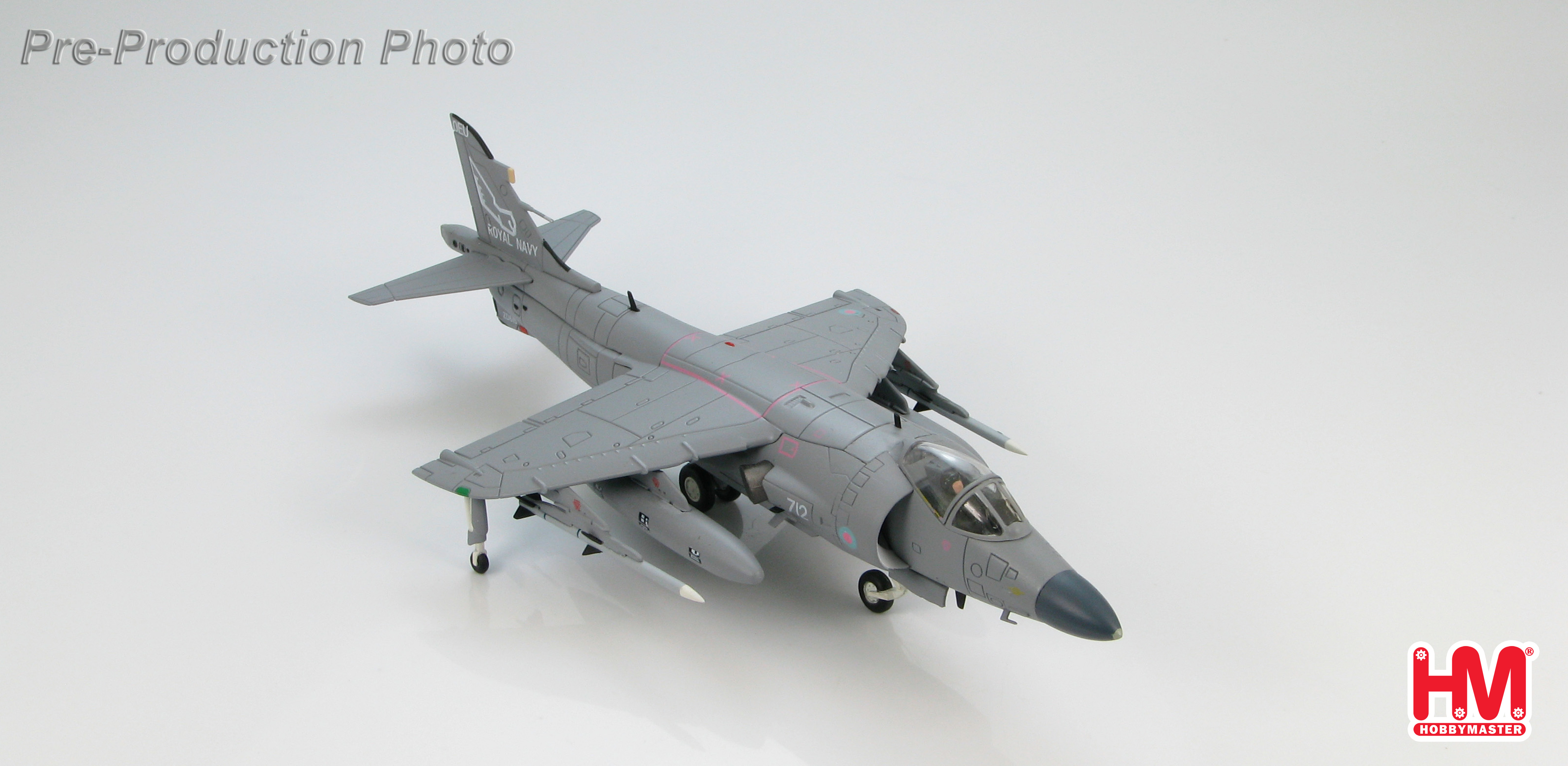

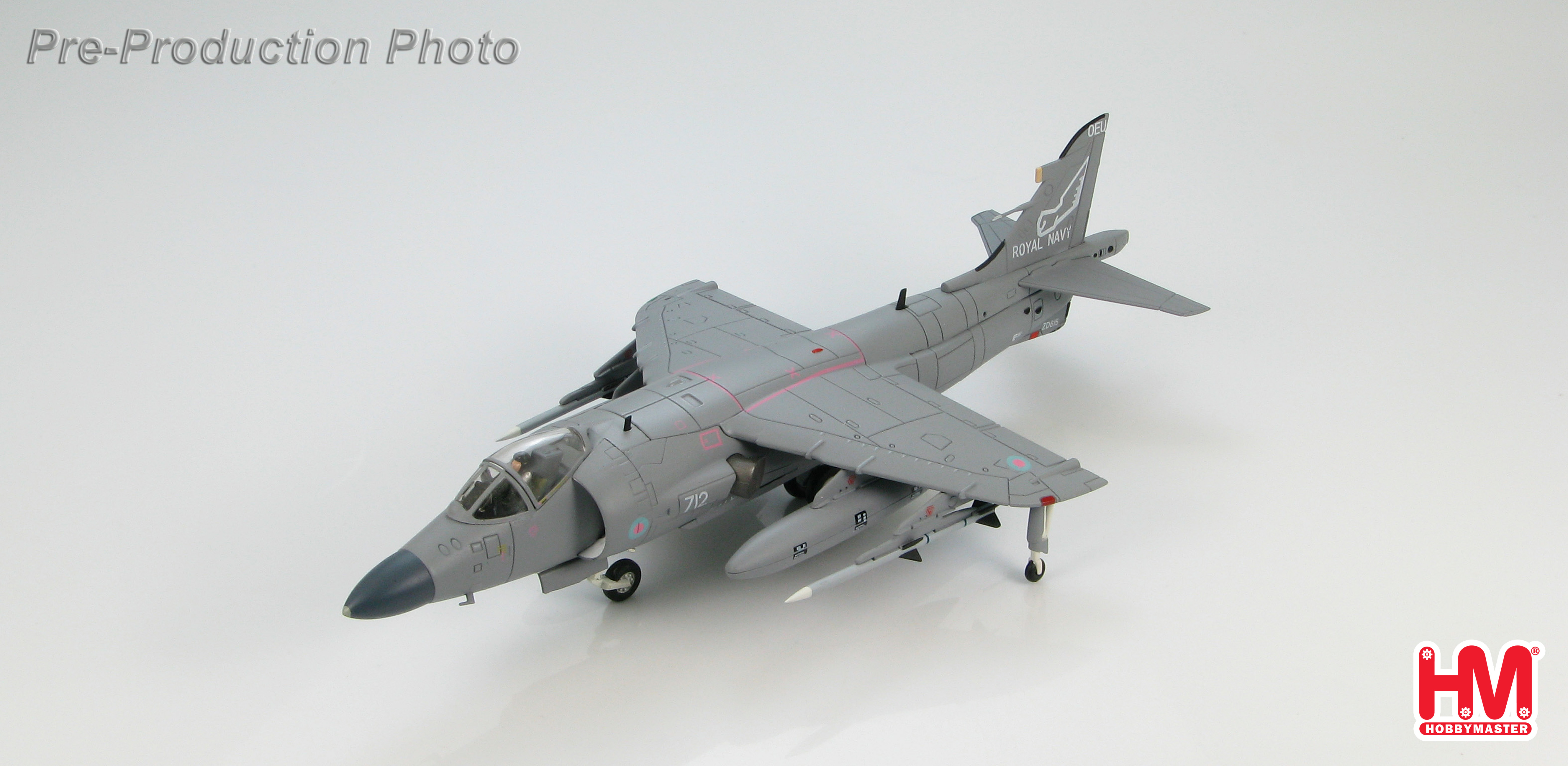

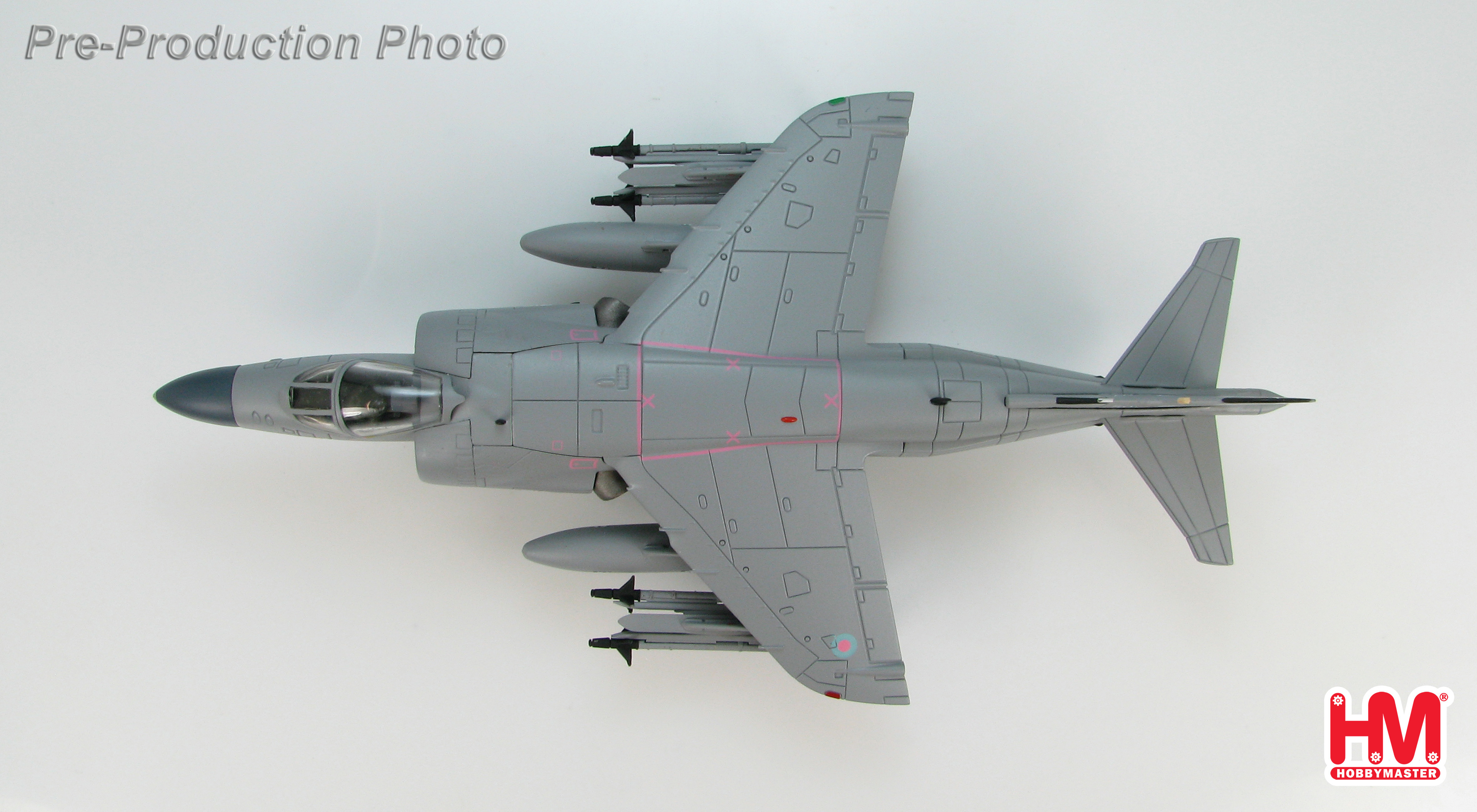

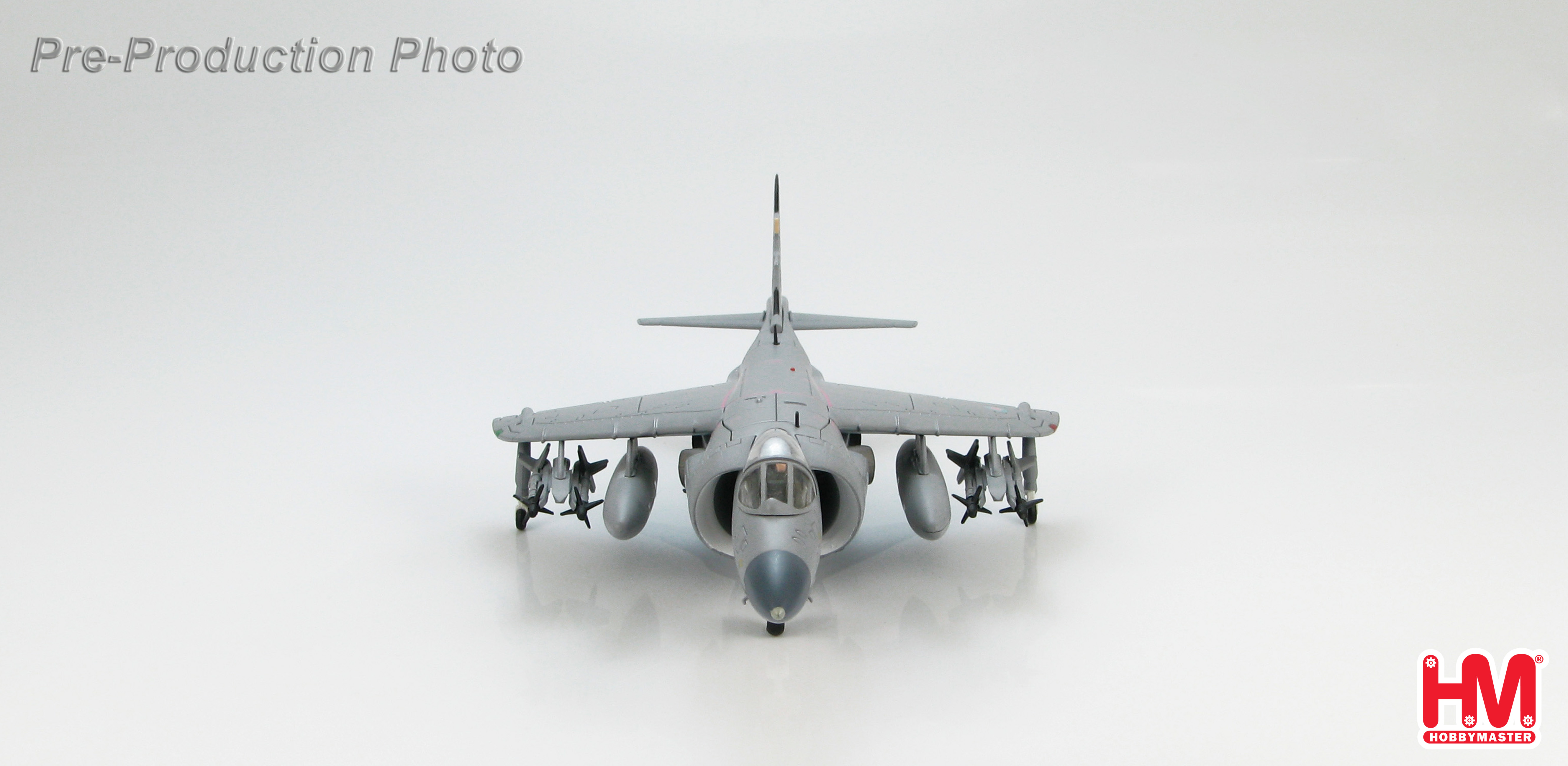

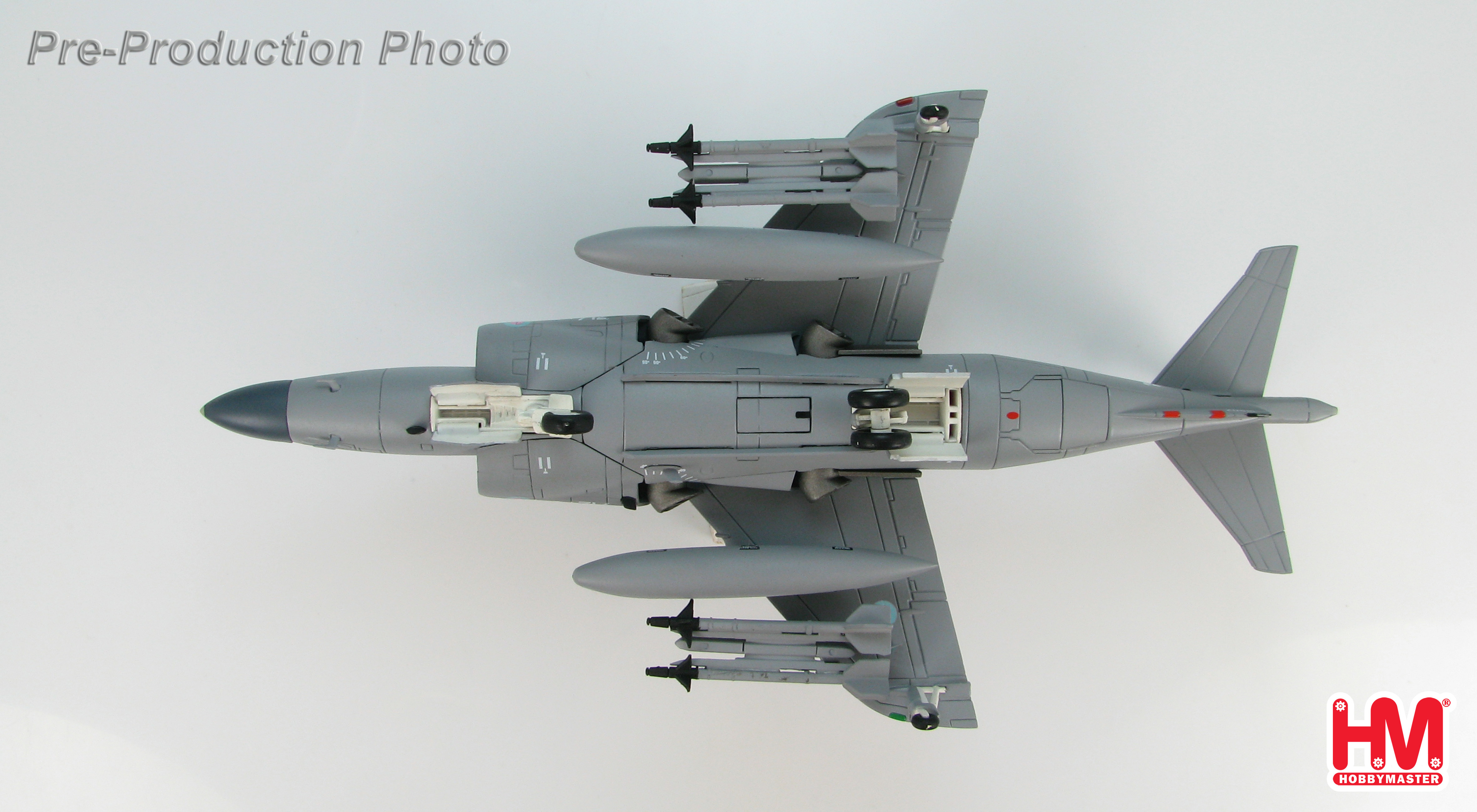

The BAe Sea Harrier FRS1 first entered service with the Royal Navy in April 1980. The
aircraft is a naval VTOL/VSTOL jet fighter designed for reconnaissance and attack roles. In
1993 an improved variant of the Sea Harrier was produced as the FA.2 with a more
powerful engine, improved air-to-air capabilities and weapons options. The FA.2 was
produced until 1998 and continued in service until 2006 when it was replaced by the
Harrier GR9. 56 FA.2 Sea Harriers were produced for the Royal Navy.

The Royal Navy took delivery of FRS1 ZD615 c/n 41H-912054/P3 on June 19, 1986. All
three British aircraft carriers were periodically deployed in support of the conflict in Bosnia
and Operation Deny Flight. In August 1993 ZD615 was converted to an FA.2 and was
assigned to HMS Invincible that completed three tours, one from August 1993 to March
1994, the second from July 1994 until March 1995 and the third July 1995 to November
1995. In 2002 ZD615 went into storage for over 3 years before it was purchased and fully
restored by Jet Art UK. In 2009 the aircraft was sold and in October of that year it arrived at
its new owner’s in Canada. It was displayed as a show piece in front of an energy company’
s office in Calgary before it was moved and became a lawn ornament at the home of the
energy company’s president in Red Deer Alberta Canada.

Specifications for the Sea Harrier FA.2

Crew – 1 X pilot

Dimensions
Length – 46 ft. 6 in. (14.2 m)
Wingspan – 25 ft. 3 in. (7.6 m)
Height – 12 ft. 2 in. (3.71 m)
Wing Area – 201.1 ft². (18.68 m²)

Performance
Power Plant – 1 X Rolls-Royce Pegasus turbofan producing 21,500 lbf (95.64 kN)
Maximum Speed – 735 mph (635 kt. / 1,182 km/h)
Combat Radius – 620 mi. (540 nmi. / 1,000 km)
Ferry Range – 2,000 mi. (1,740 nmi. / 3,600 km)
Service Ceiling – 51,000 ft. (16,000 m)
Rate Of Climb – 50,000 ft./min. (250 m/s)

Weights
Empty – 14,052 lb. (6,374 kg)
Maximum Take-Off – 26,200 lb. (11,900 kg)

Armament
Guns – 2 X 30 mm (1.18 in.) ADEN cannon pods under the fuselage – 130 rounds each
Hardpoints
2 X auxiliary drop tanks for ferry flight or extended range/loitering time
4 X under-wing pylons
1 X fuselage center-line pylon + 2 X attach points for gun pods capable of carrying 8,000
lb (3,630 kg)
Rockets – 4 X Mantra rocket pods capable of carrying 18 X SNEB 68 mm rockets each
Missiles
Air-To-Air
AIM-9 Sidewinder missile
AIM-120 AMRAAM (Advanced Medium-Range Air-to-Air Missile) (pronounced "am-ram")
Air-To-Surface
ALARM (ARM) anti-radiation missile
Martel (ARM) anti-radiation missile
Anti-ship
Sea Eagle missile
Bombs
Numerous types of unguided bombs
