The Northrop F-5 tactical fighter was designed as an extremely maneuverable, supersonic
fighter with a high rate of reliability at a low operating cost. The F-5 first flew on July 30,
1959 with the first customer delivery in 1964. The last of more than 2,600 F-5’s was
produced in 1989 and about two-thirds of these are still in service with 26 countries more
than 4 decades later. The F-5 was manufactured by Northrop Grumman and under license
in Canada, Taiwan, South Korea, Spain and Switzerland.

VFC-13 “Fighting Saints” provide adversary training for the USN and regular squadrons, as

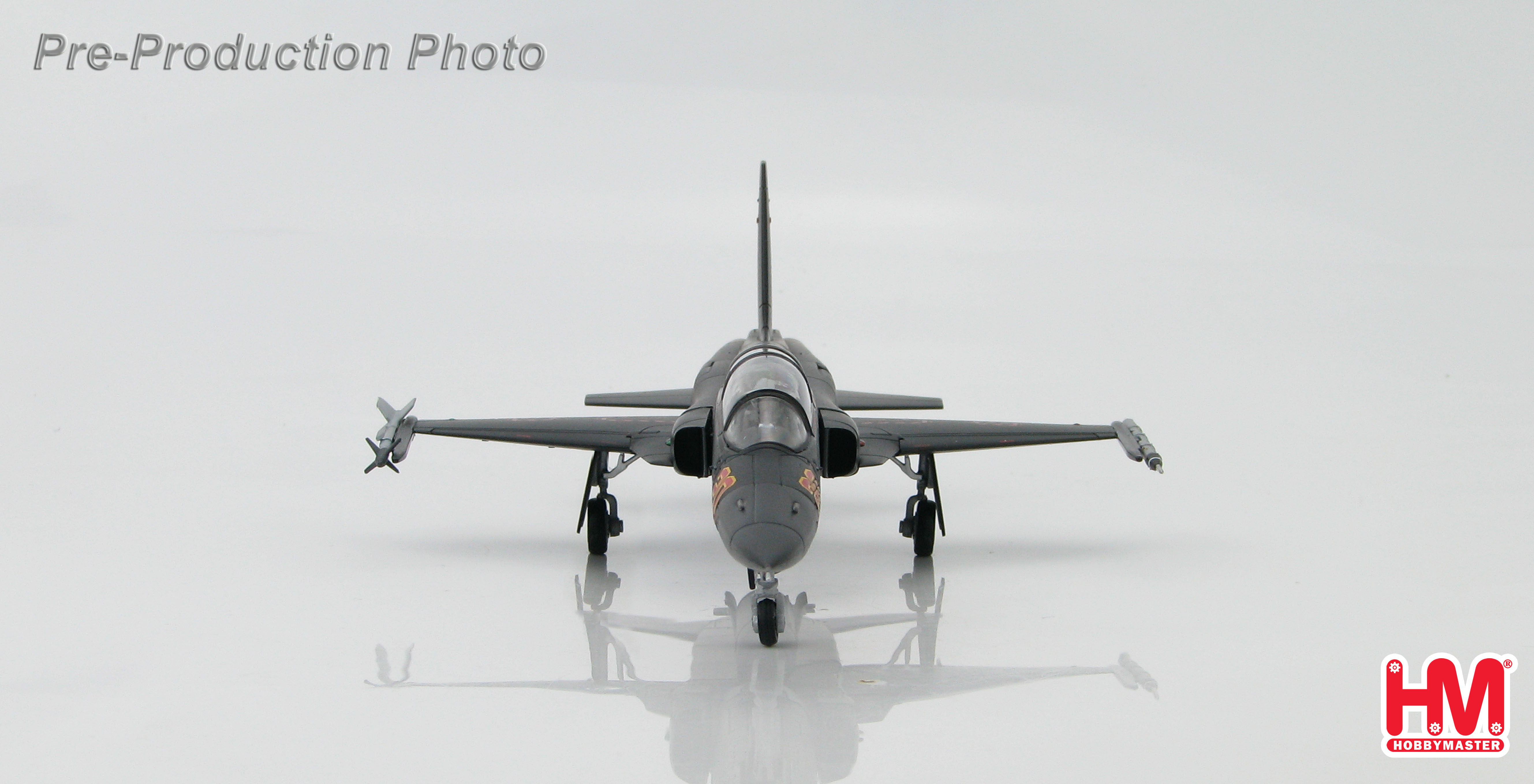

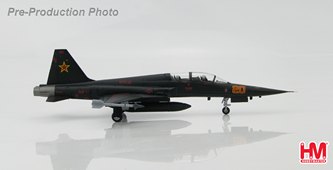

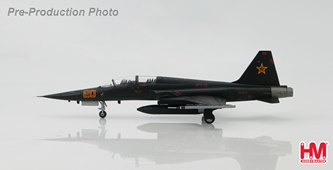

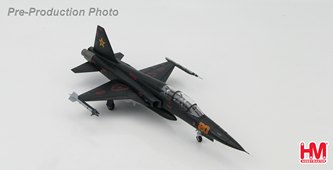

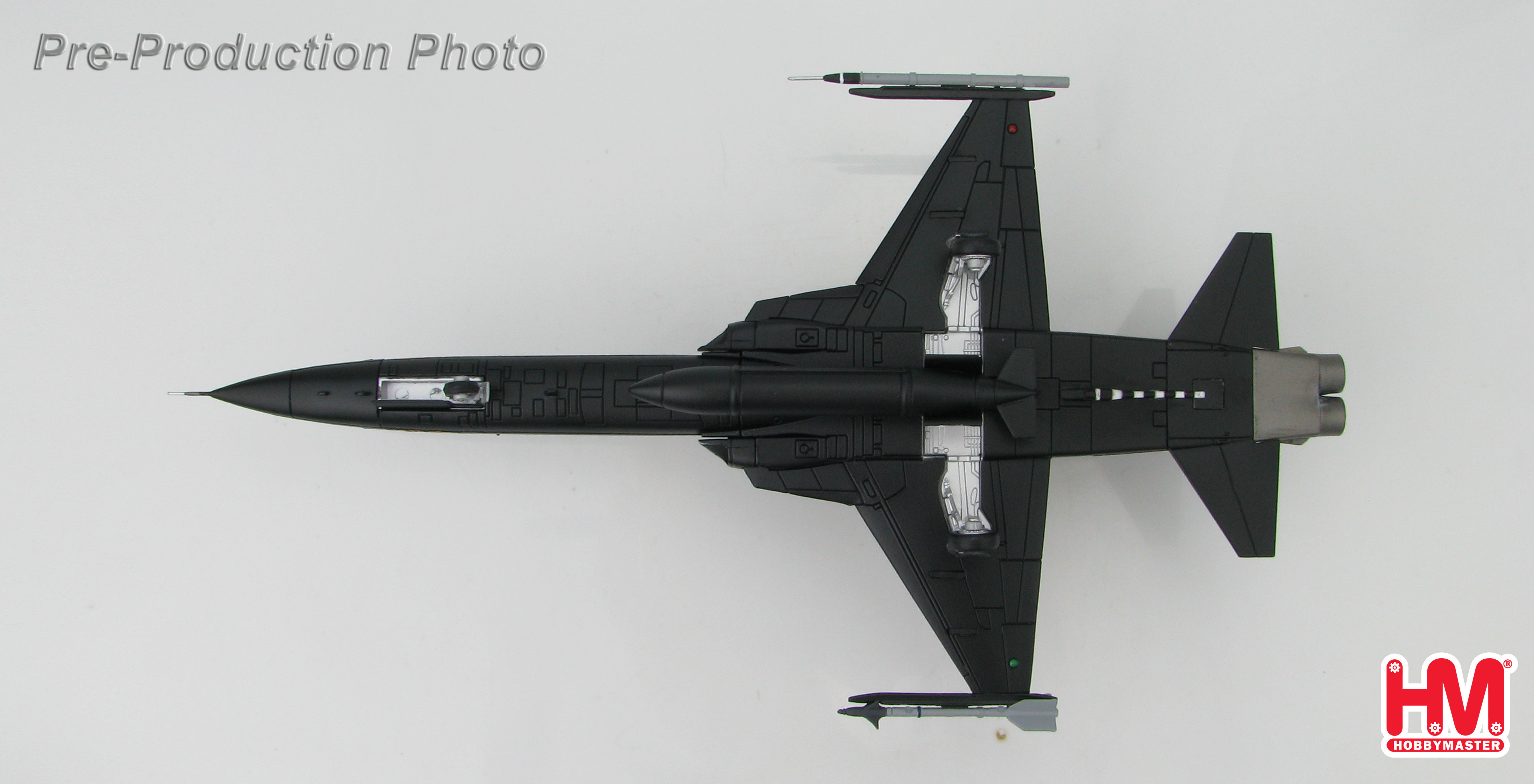

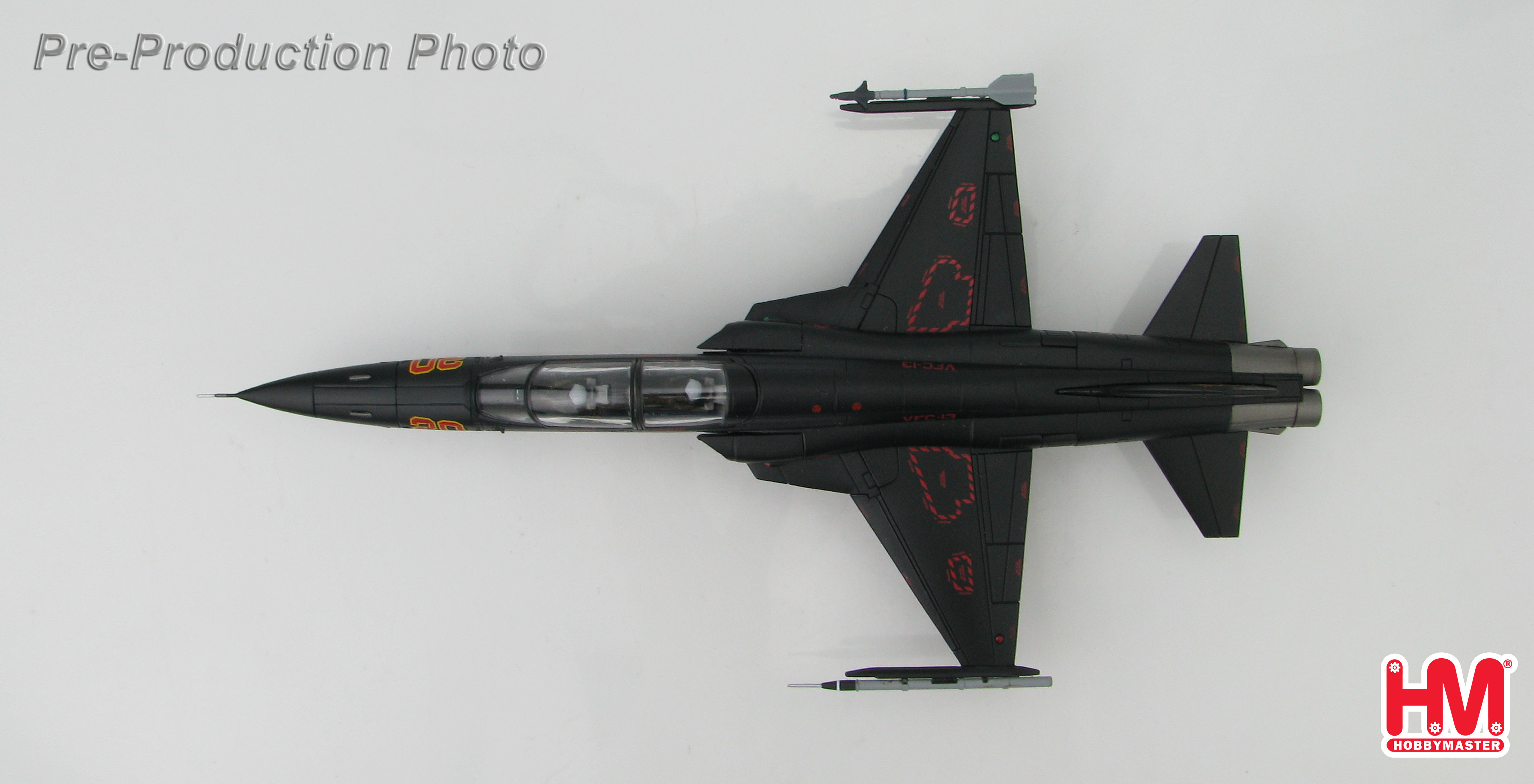

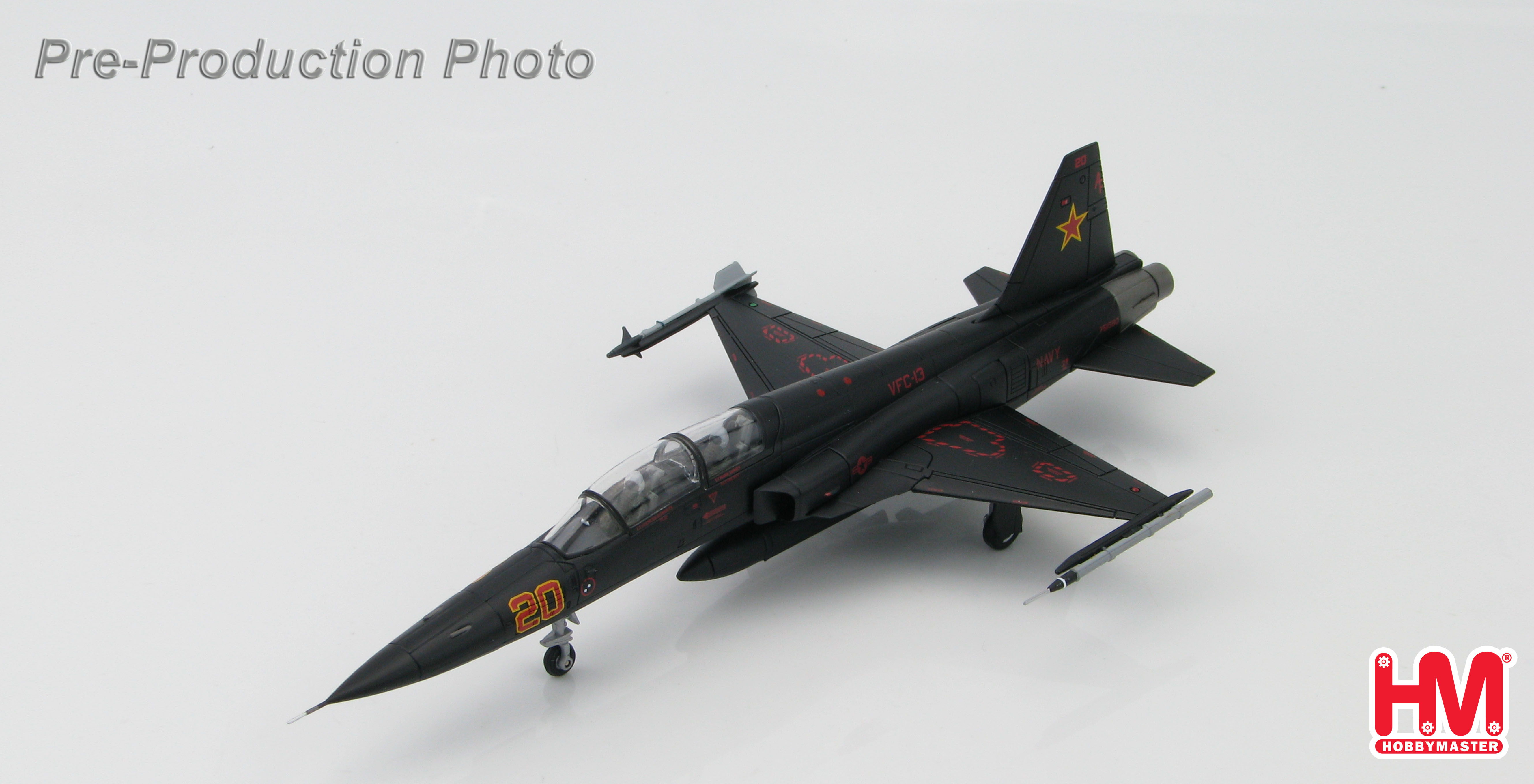

well as the USMC, USAF and Canadian forces. F-5F Tiger II “Red 20” was constructed as
c/n L 1055 and handed over to the USN as 761580 in 1980. In 1991 the aircraft became
the property of the Swiss AF at Payerne. Later the F-5s the USN was using were becoming
aged so they acquired some low-hour aircraft from the Swiss. In 2007 this aircraft returned
to the U.S.A. and first appeared in USN markings in 2010.

Specification for the Northrop F-5E/ F-5F Tiger II
Number Built – 1,400 + E/F
Role F-5F - Two-seat Combat Trainer Version Of The F-5E Tiger II

Dimensions
Length (F-5E) - 47 feet 4.75 inch (14.65 m)
Length (F-5F) - 51 feet 4 inch (15.65 m)
Wingspan F-5E & F-5F – 26 ft 8 in
Height (F-5E) - 13 feet 4 inch (4.06 m)
Height (F-5F) - 13 feet 1.75 inch (4.01 m)

Weight
Empty Weight (F-5E) – 9,723 lb (4,410 kg)
Empty Weight (F-5F) - 10,576 lb (4,797 kg)
Max Take-off Weight (F-5E) - 24,722 lb (11,214 kg)
Max Take-off Weight (F-5F) - 25,152 lb (11,409 kg)

Performance
Powerplant – 2 x General Electric J85-GE-21B Turbojets With 5,000 lb.s.t. With
Afterburning
Maximum Speed F-5E – Mach 1.64 @ 36,000 ft
Maximum Speed F-5F – Mach 1.55 @ 36,000 ft

Range (F-5E) - 1,545 nm (2,863 km)
Range (F-5F) - 1,270 nm (2,353 km)
Service Ceiling (F-5E) - 51,800 ft (15,780 m)
Service Ceiling (F-5F) - 50,800 ft (15,484 m)
Max Rate of Climb (F-5E) - 34,500 feet/min
Max Rate of Climb (F-5F) - 32,900 feet/min

Armament
1 x In-Nose 20mm M39A2 Cannon With 140 Rounds
2 x AIM-9 Sidewinder Missiles On Wing Tips
5 x Pylons Capable Of Carrying Up To 7,000 lbs. Of Ordnance Or Fuel
1 x Under Fuselage Center-line
4 x Under Wing (2/Wing)
