The USAF developed a requirement for a new air superiority fighter to replace the F-15 Eagle.
Advanced Tactical Fighter (ATF). The aircraft is constructed using 39% titanium, 24% composite
material, 16% aluminum and 1% thermoplastic by weight. All these components contribute to the
F-22 being a light weight, extremely maneuverable, extremely fast aircraft that uses stealth
technology. The F-22 is also capable of ground attack, electronic warfare and signals intelligence.

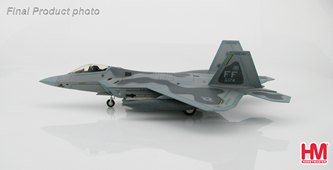

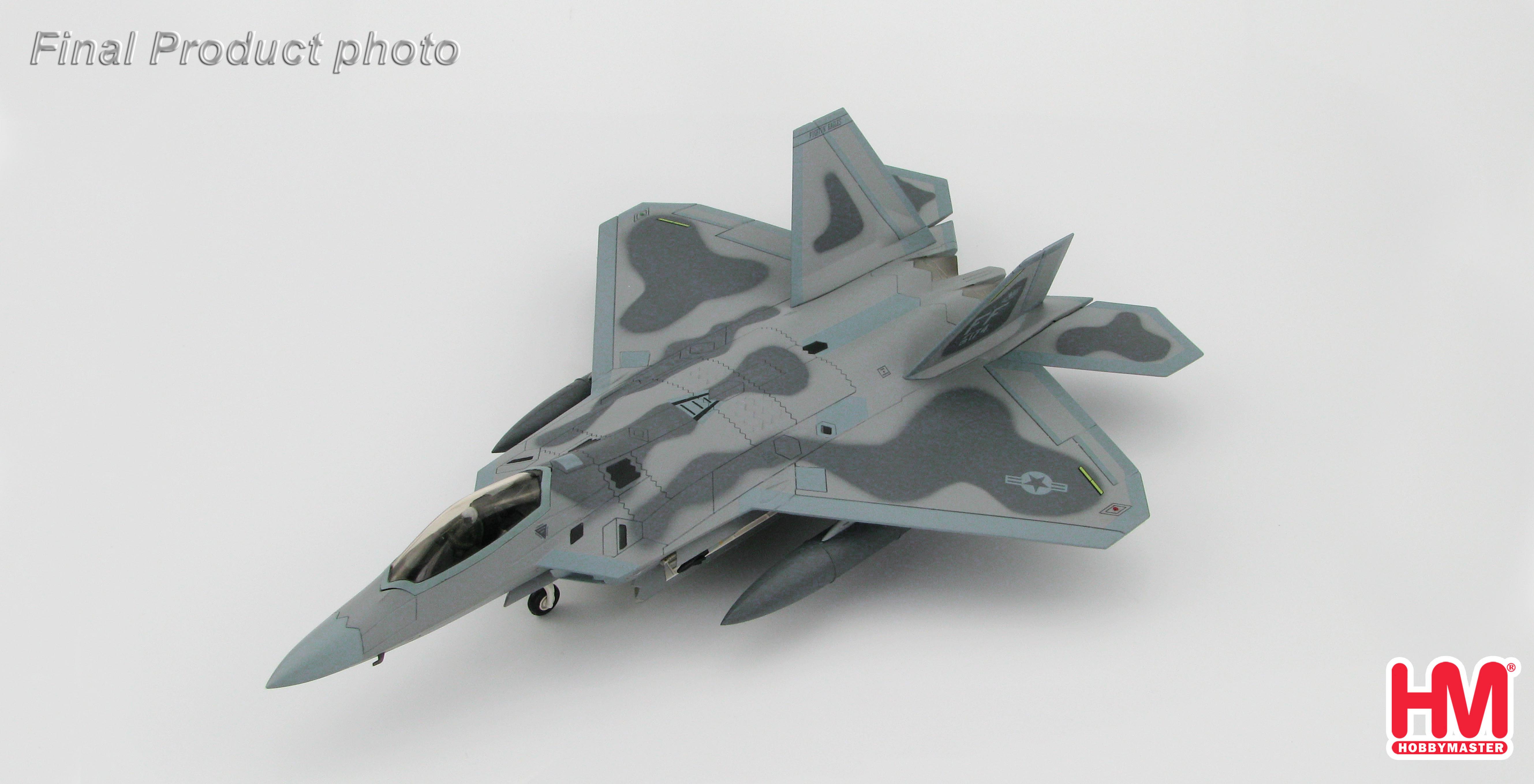

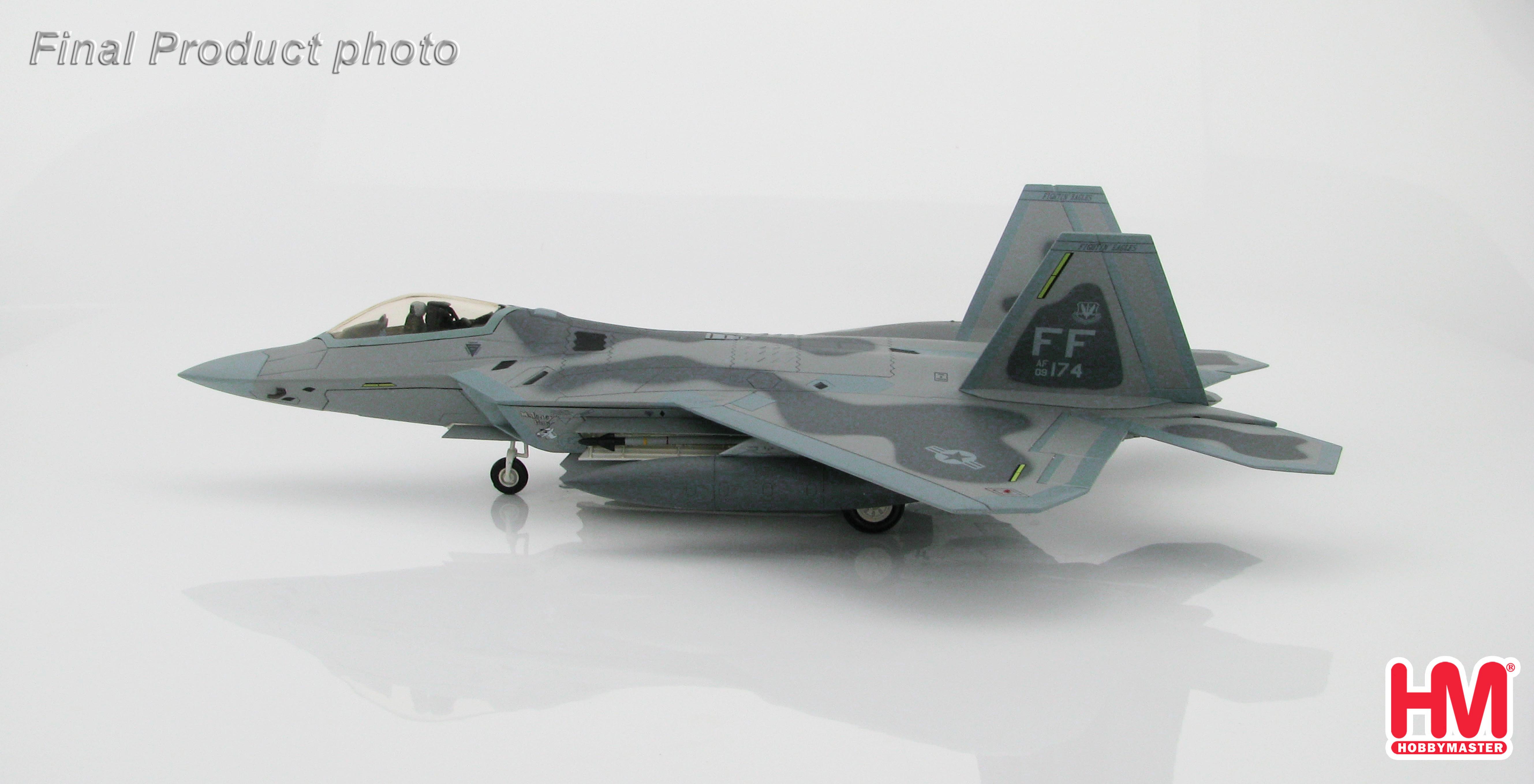

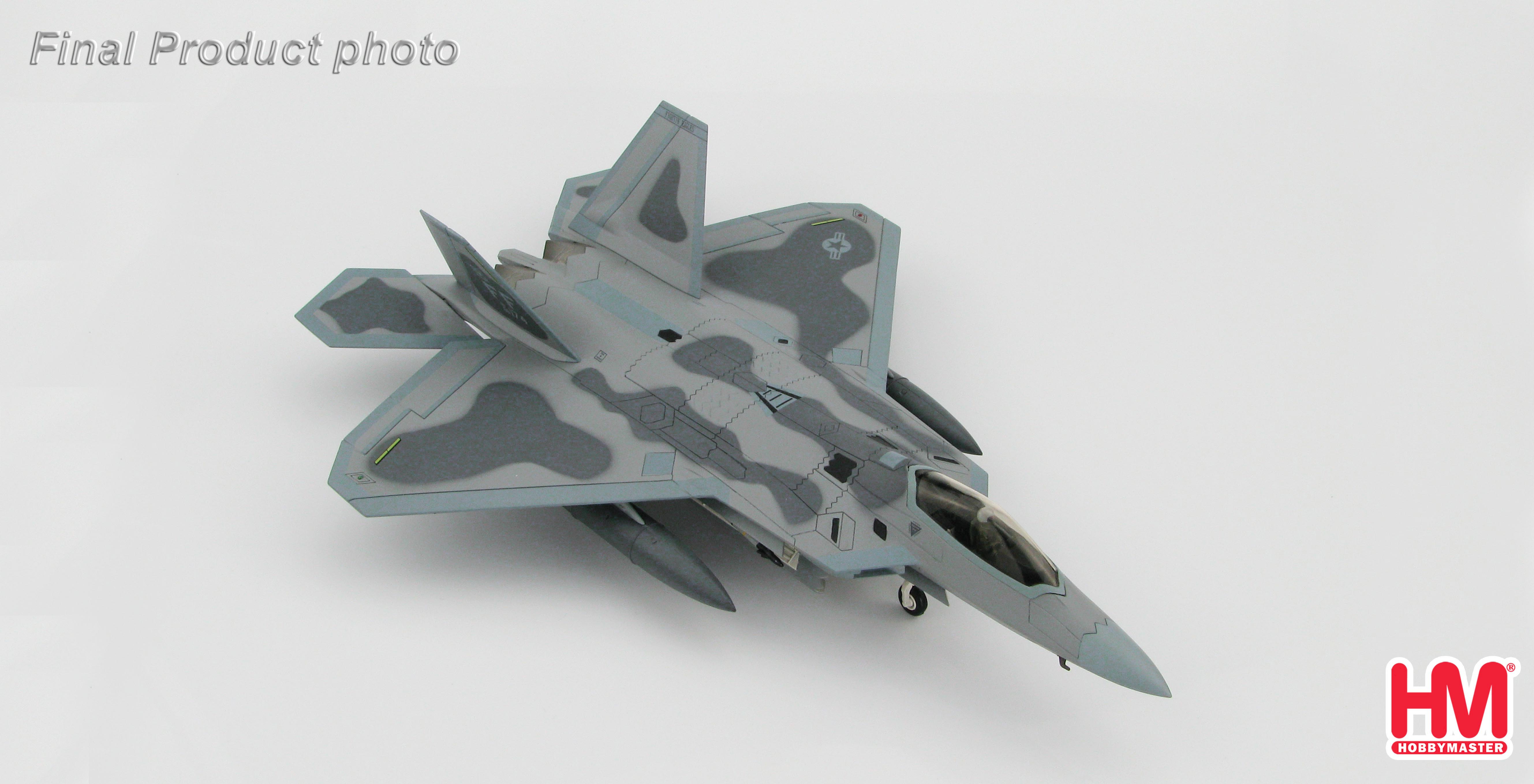

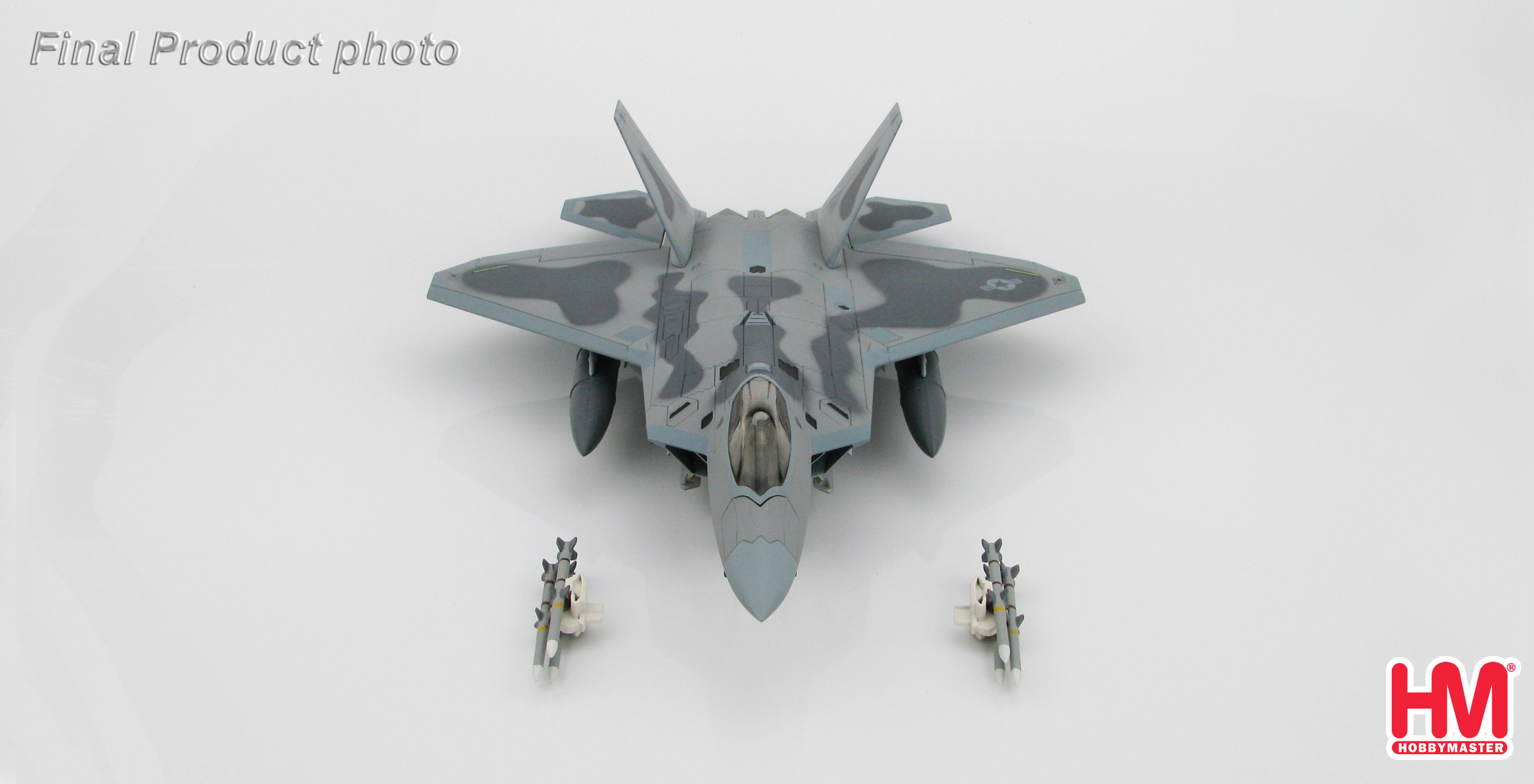

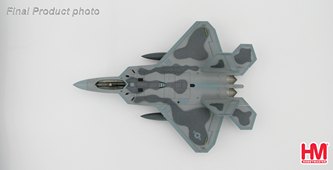

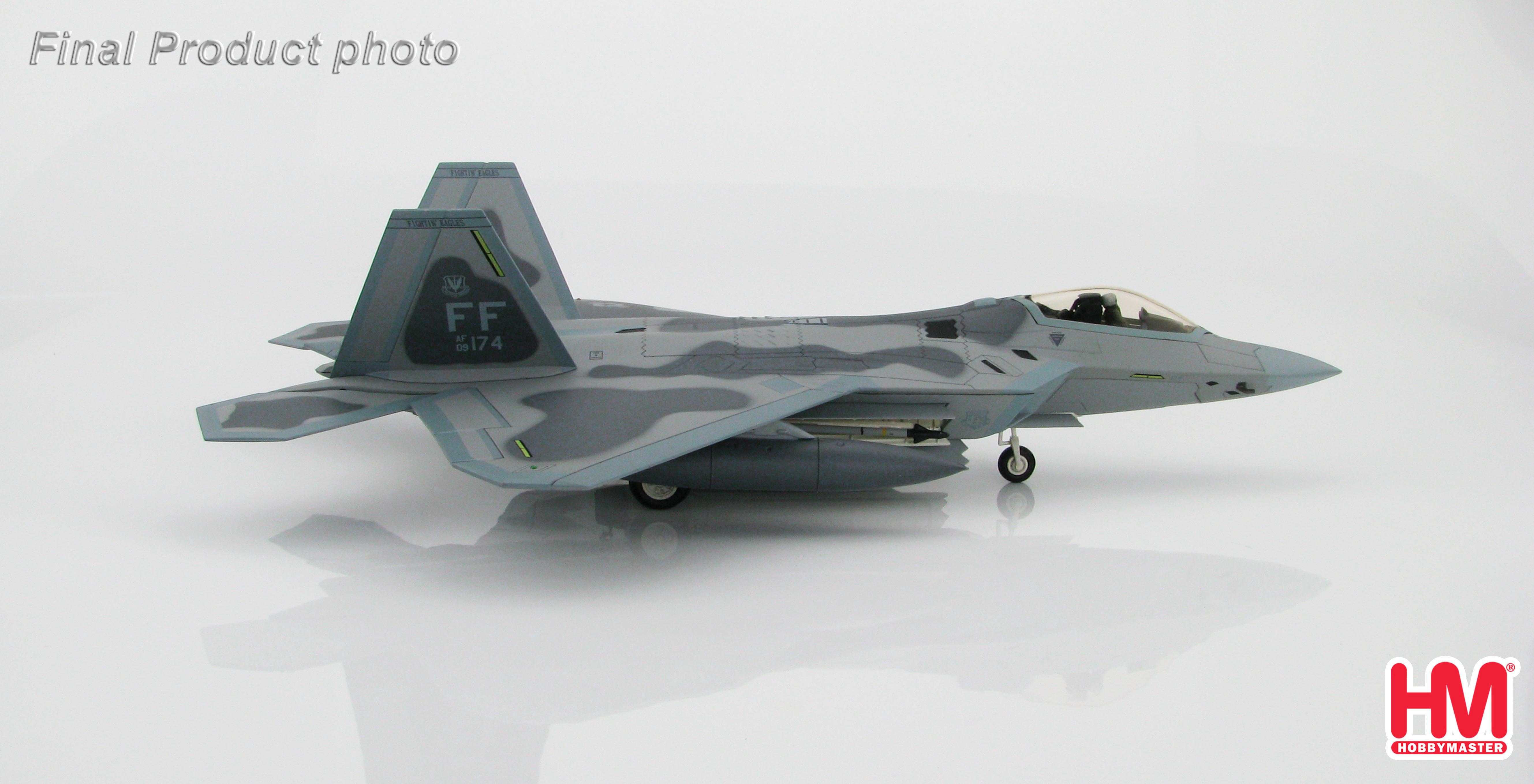

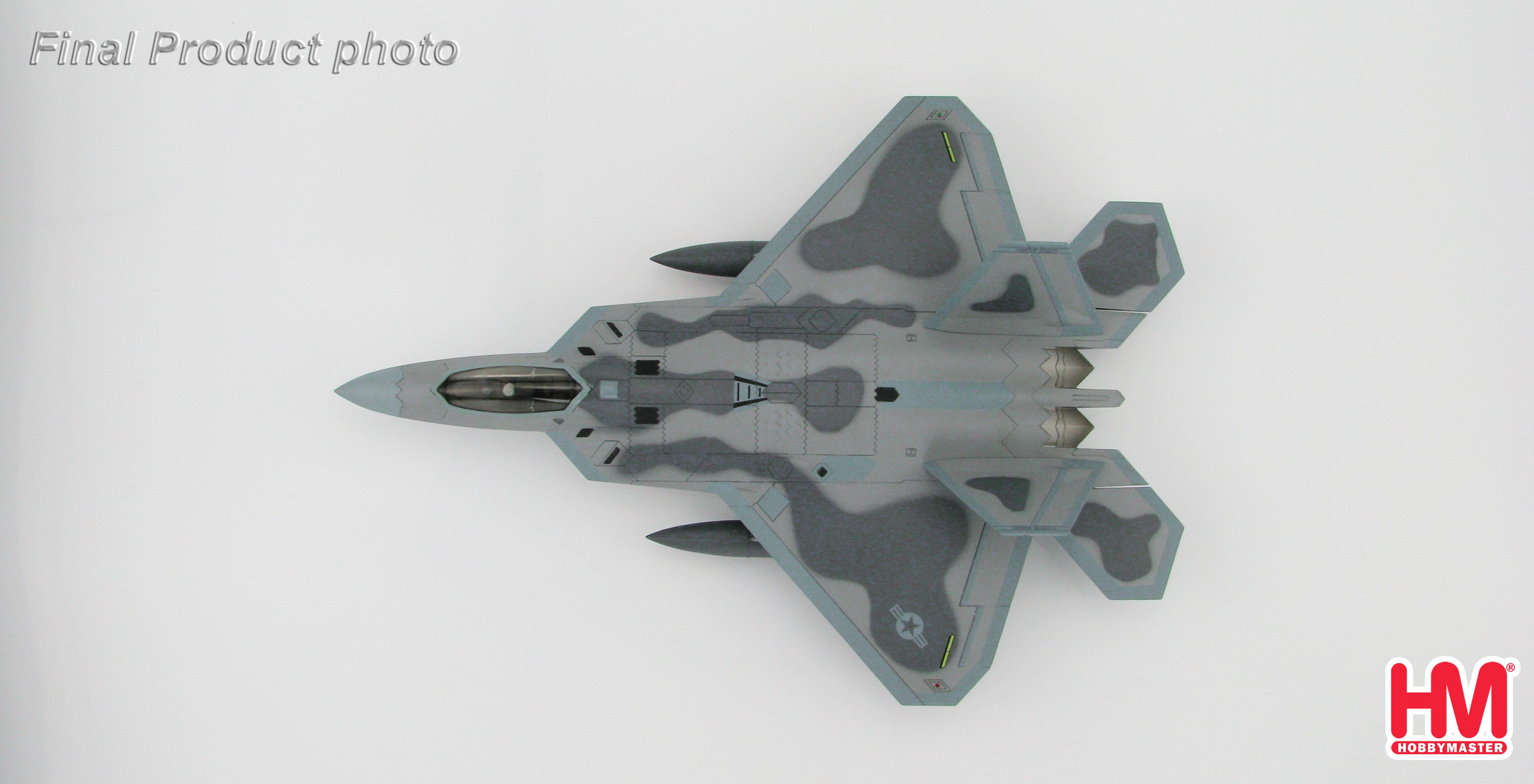

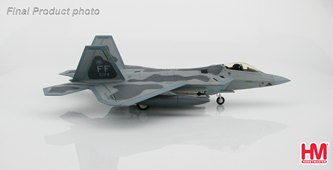

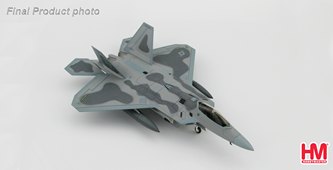

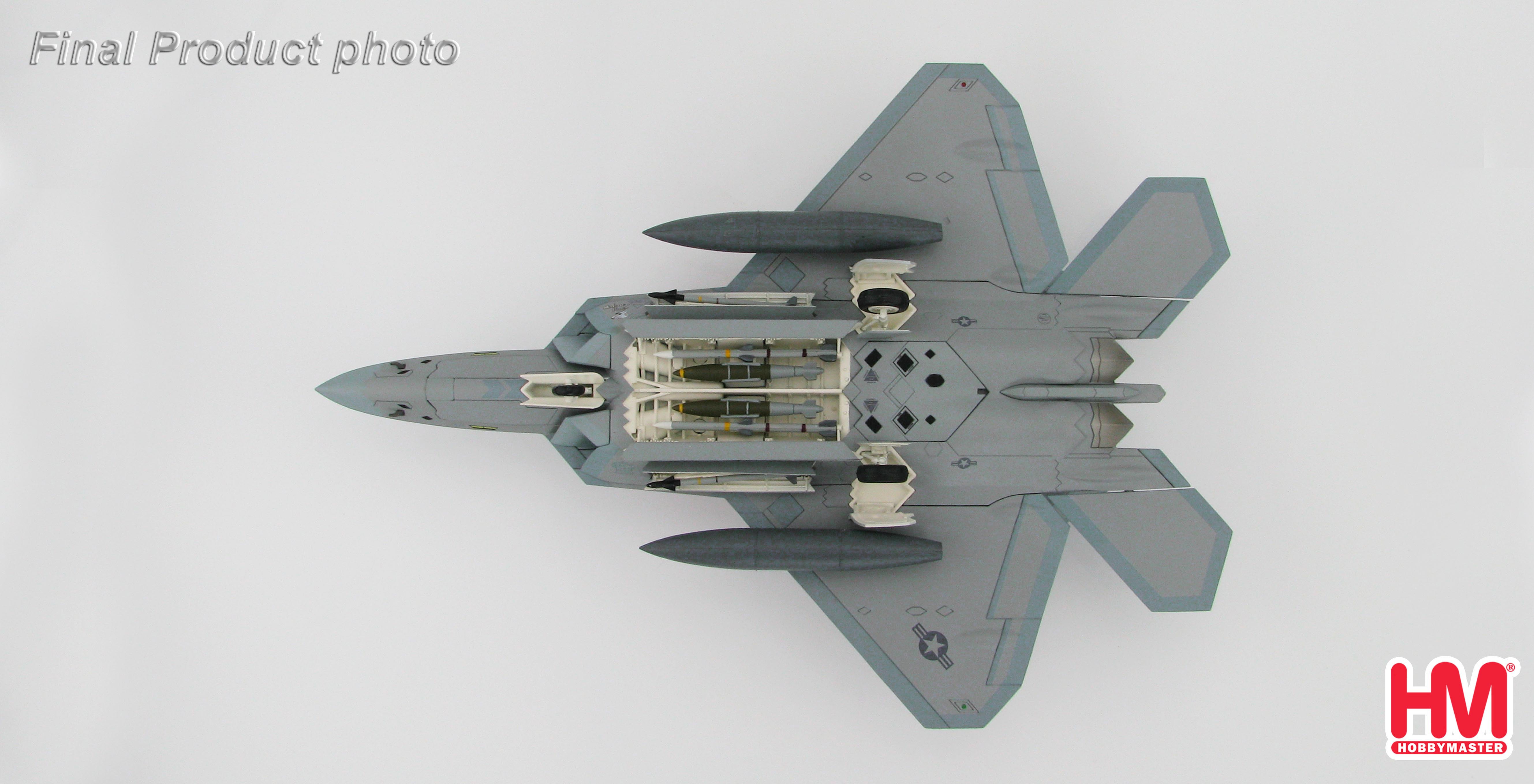

The 27th FS Lockheed F-22 Raptor 09-4174 had art work applied to honor the 27th FS highest
scoring WWII Ace Major Thomas Maloney. Major Maloney crashed while flying his P-38 named
“Maloney’s Pony” and presumed dead but miraculously he survived even after stepping on a land
mine and crawling for 10 days before a French farmer found him. The 27th FS began making one
of their aircraft a “Maloney’s Pony” until they equipped with stealth F-22s in 2005. In 2011 the
tradition was reinstated and the 27th FS have their “Maloney’s Pony” back on one aircraft.
Lockheed Martin F-22 Raptor specifications

First flight - September 7, 1997

Planned Production - 750 aircraft initial program objective

Altered plan in 1990 - 648 aircraft

Altered plan in 1994 - 442 aircraft

In 1997 Department of Defense report – 339 aircraft

In 2006 the Pentagon wanted -183 aircraft

2008 approval for 4 additional aircraft bringing the total to 187

Number built as of August 2009 - 145 (187 planned)

Role - Air superiority fighter

Crew – (1) pilot

Performance
Engines – (2) Pratt & Whitney F119-PW-100 engines producing 35,000 lbst of thrust
Speed - Mach 1.8 (super cruise: Mach 1.5)
G Limit - +9 G
Ceiling - 60,000 ft   (18,290 m)
The F-22 and other fighters can reach this altitude, but only the F-22 can perform tactical
maneuvers at this level, which is about twice the altitude at which other jets can perform tactical
maneuvers.

Dimensions
Length - 62.08 ft   (18.90 m)
Height -16.67 ft   (5.08 m)
Wingspan - 44.5 ft   (13.56 m)
Wing Area - 840 sq ft   (78.04 sq m)
Horizontal Tail-span - 29 ft   (8.84 m)

Weights
Empty Weight - 31,670 lb   (14,365 kg)
Maximum Takeoff Weight - 60,000 lb   (27,000 kg)

Armament
Internal
(1) 20mm Cannon
(4) AIM-9 Sidewinders (side weapon bays)
(4) AIM-120A AMRAAM (internal ventral bay)
(6) AIM-120Cs (internal ventral bay)
(6) GBU-32 JDAM PGMs (internal ventral bay)
(8) GBU-39 Small Diameter Bombs (250lbs ea)
External
(4) under-wing hard-points with a maximum of 5,000lbs   (2,270kg) of mission-specific weaponry
or fuel drop-tanks.
