The AV-8B II + is the second generation of Harriers. Using its VSTOL (Vertical and Short Take
Off Landing) abilities the Harrier is capable of using almost any surface to attack and destroy air
or ground targets. Armed with conventional or specific weapons the AV-8B II + can be used in
offensive or defensive roles. Now with air-borne radar the AV-8B II + can deliver its ordnance day
or night. The AV-8B II + can be air refueled allowing it to
be deployed for extended periods.

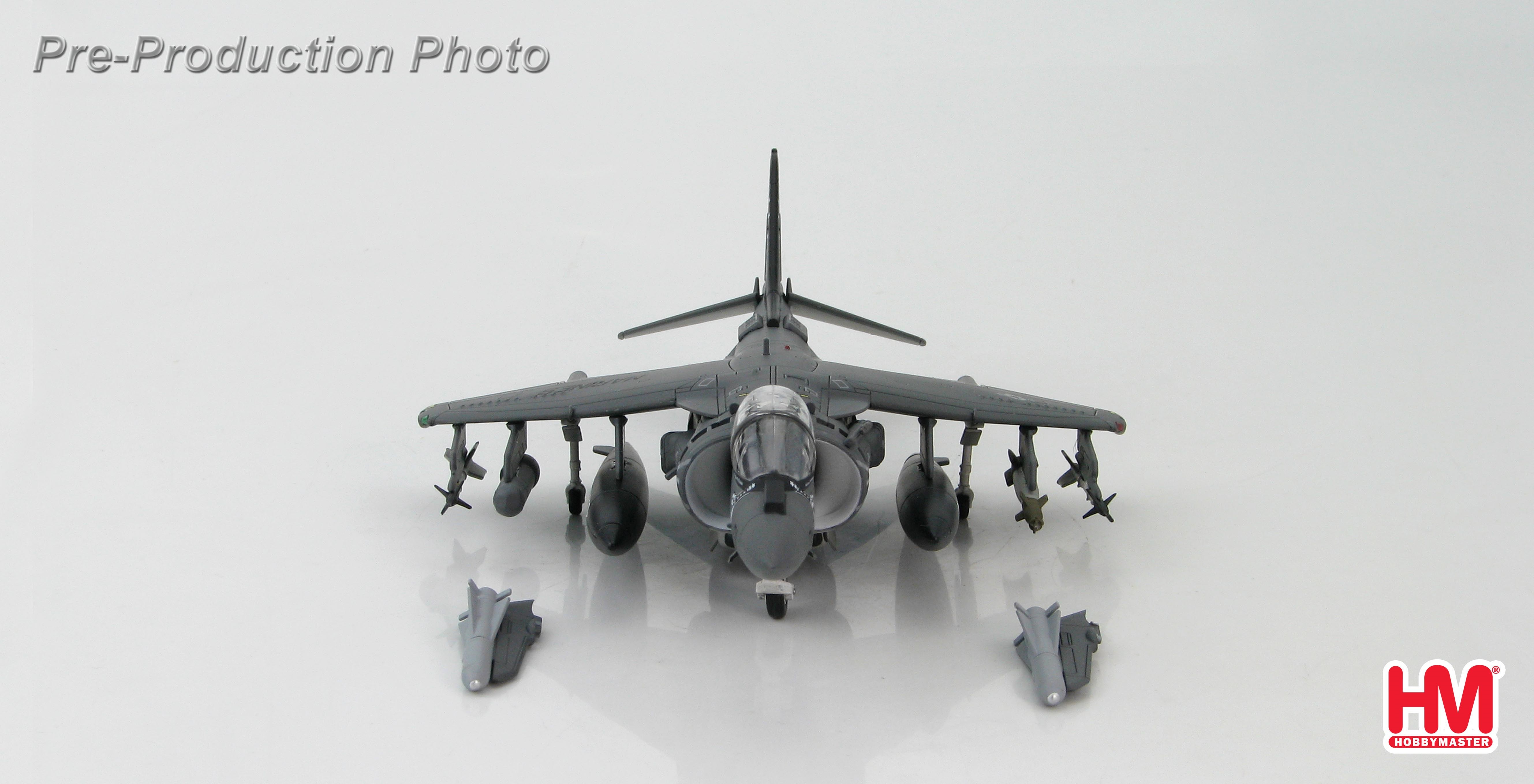

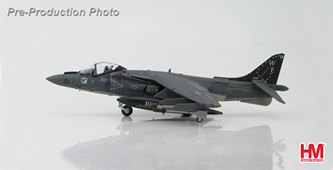

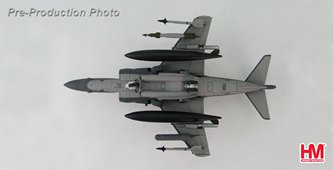

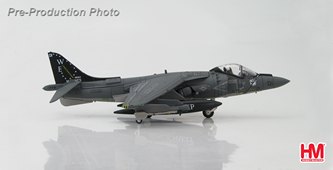

AV-8B 162731 was delivered to VMA-542 in 1986 and later assigned to VMA-331 “Bumble Bees”
then in the 1990s went to VMAT-203. In January 2000 work was completed on the 31st
remanufactured jet by using the wings, tail and a few other components from 162731 and joining
them with a new fuselage, engine and other parts to create AV8 Harrier II + 165421. In February
2000 the new jet was delivered to VMA-214 “Black Sheep” of Pappy Boyington fame based at
MCAS Yuma, Arizona.

Specifications for the AV-8B+ (Harrier II Plus)

Developed by - Boeing, BAE Systems, and Rolls Royce

Operators – USMC, Italian Navy, Spanish Navy

Crew – (1) pilot

Performance
Powerplant – (1) Rolls-Royce Pegasus 11-61 (F402-RR-408) (Mk 105) vectored-thrust
turbofan engine,
23,500 lbf (105 kN)
Maximum speed @ sea level - .89 Mach   (662 mph)   (1,070 km/h)
Range – 1,200 nm   (1,400 mi)   (2,200 km)
Combat radius - 300 nmi   (556 km)
Ferry range - 1,800 nmi   (3,300 km)
Rate of climb - 14,700 ft/min   (4,485 m/min)

Dimensions
Length - 46 ft 4 in   (14.12 m)
Wingspan - 30 ft 4 in   (9.25 m)
Height - 11 ft 8 in   (3.55 m)
Wing area - 243.4 ft²   (22.61 m²)

Weight
Empty - 13,968 lb   (6,340 kg)
Loaded - 22,950 lb   (10,410 kg)
Max takeoff –
Rolling / 31,000 lb   (14,100 kg)
Vertical / 20,755 lb   (9,415 kg)

Armament
Guns – (1) X GAU-12U "Equalizer" 25 mm (0.98 in) cannon with 300 rounds of
ammunition.
Hardpoints – (7) capable of carrying up to 13,200 lb (STOVL) of ordnance such as iron
bombs, cluster bombs, napalm canisters, laser-guided bombs, AGM-65 Maverick or
AGM-84 Harpoon missiles, Sea Eagle missiles, a LITENING targeting pod, up to (4) AIM-
9 Sidewinder or similar-sized infrared-guided missiles, up to (4) AIM-120 AMRAAM
missiles, as well as new “Smart Weapons” such as JDAM (Joint Direct Attack Munition).

Avionics
Raytheon APG-65 pulse Doppler radar
