Diecast Aircraft Information

MetalWings Diecast Aircraft Reference by Dauntless Aviation

Specifications for the AV-8B+ (Harrier II Plus)

Developed by - Boeing, BAE Systems, and Rolls Royce

Operators – USMC, Italian Navy, Spanish Navy

Crew – (1) pilot

Performance
Powerplant – (1) Rolls-Royce Pegasus 11-61 (F402-RR-408) (Mk 105) vectored-thrust
turbofan engine,
23,500 lbf (105 kN)
Maximum speed @ sea level - .89 Mach   (662 mph)   (1,070 km/h)
Range – 1,200 nm   (1,400 mi)   (2,200 km)
Combat radius - 300 nmi   (556 km)
Ferry range - 1,800 nmi   (3,300 km)
Rate of climb - 14,700 ft/min   (4,485 m/min)

Dimensions
Length - 46 ft 4 in   (14.12 m)
Wingspan - 30 ft 4 in   (9.25 m)
Height - 11 ft 8 in   (3.55 m)
Wing area - 243.4 ft²   (22.61 m²)

Weight
Empty - 13,968 lb   (6,340 kg)
Loaded - 22,950 lb   (10,410 kg)
Max takeoff –
Rolling / 31,000 lb   (14,100 kg)
Vertical / 20,755 lb   (9,415 kg)

Armament
Guns – (1) X GAU-12U "Equalizer" 25 mm (0.98 in) cannon with 300 rounds of
ammunition.
Hardpoints – (7) capable of carrying up to 13,200 lb (STOVL) of ordnance such as iron
bombs, cluster bombs, napalm canisters, laser-guided bombs, AGM-65 Maverick or
AGM-84 Harpoon missiles, Sea Eagle missiles, a LITENING targeting pod, up to (4) AIM-
9 Sidewinder or similar-sized infrared-guided missiles, up to (4) AIM-120 AMRAAM
missiles, as well as new “Smart Weapons” such as JDAM (Joint Direct Attack Munition).

Avionics
Raytheon APG-65 pulse Doppler radar

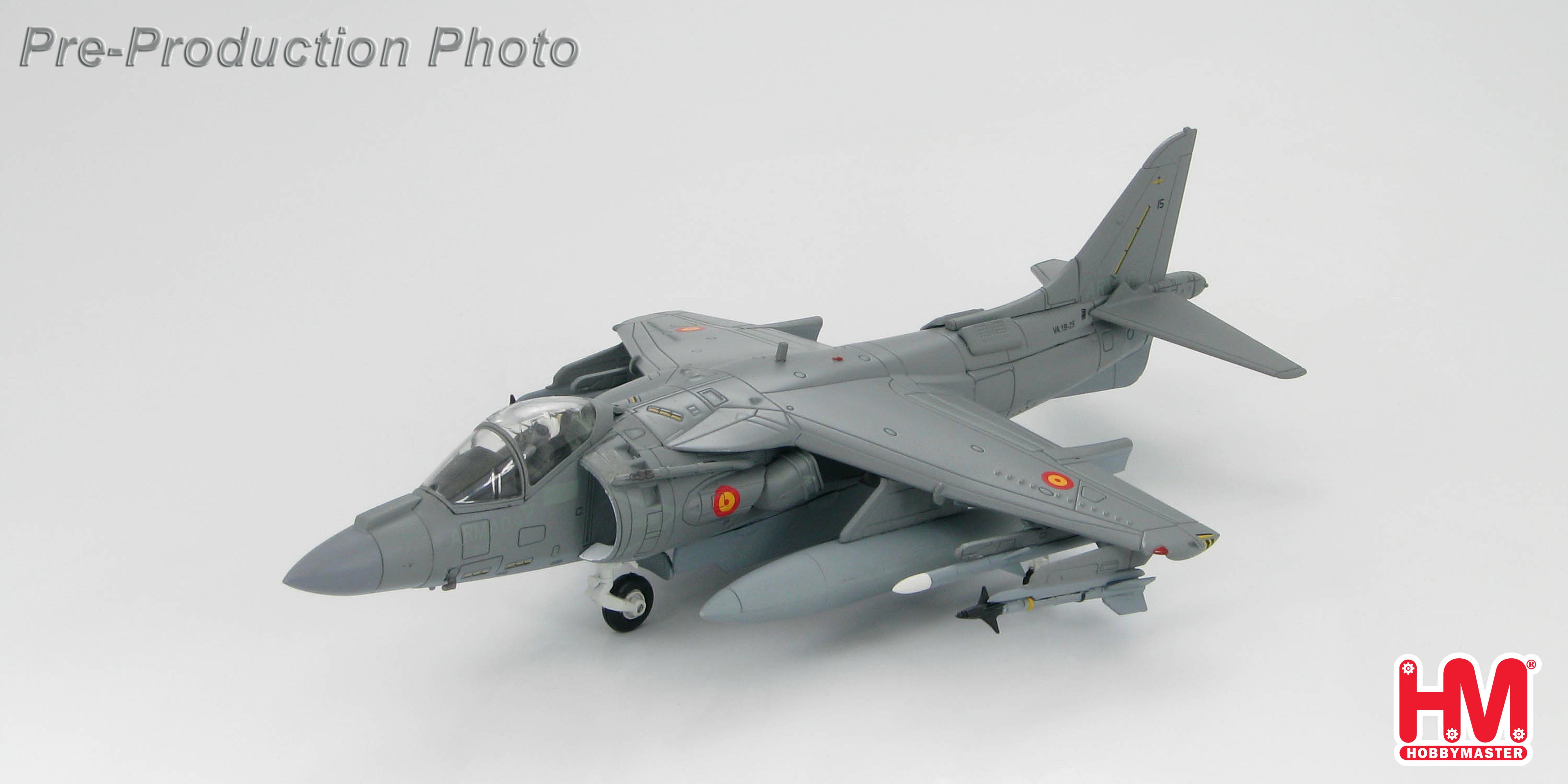

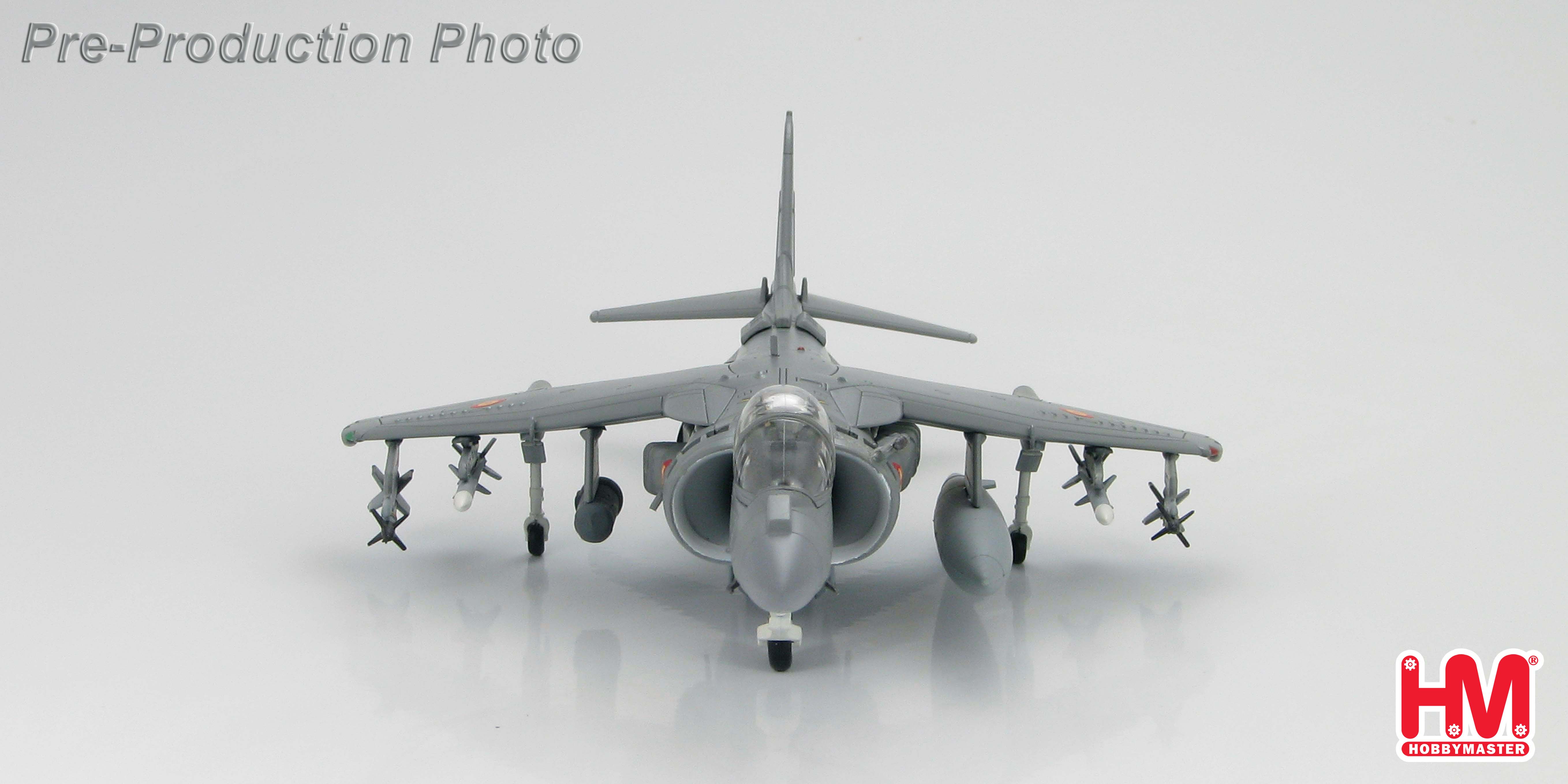

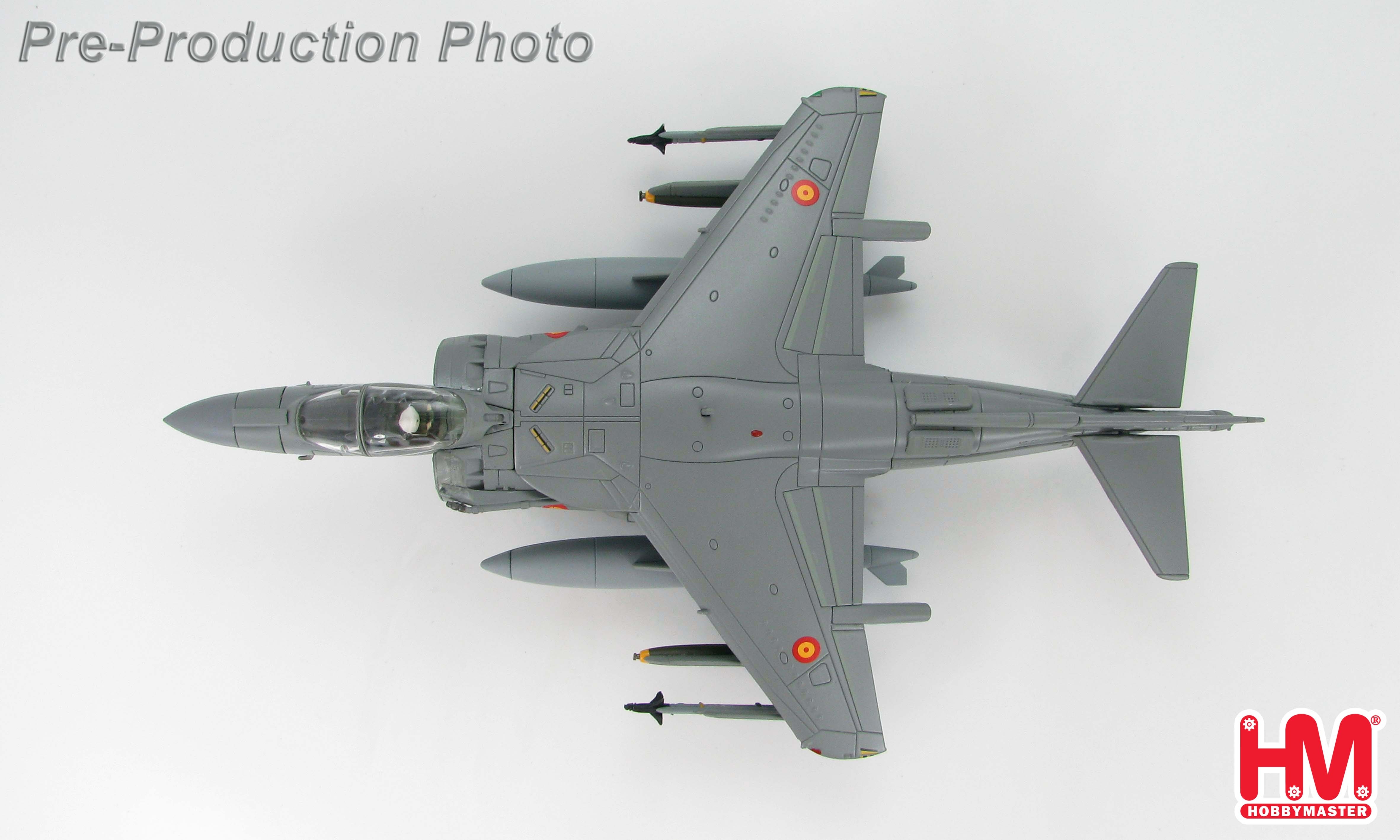

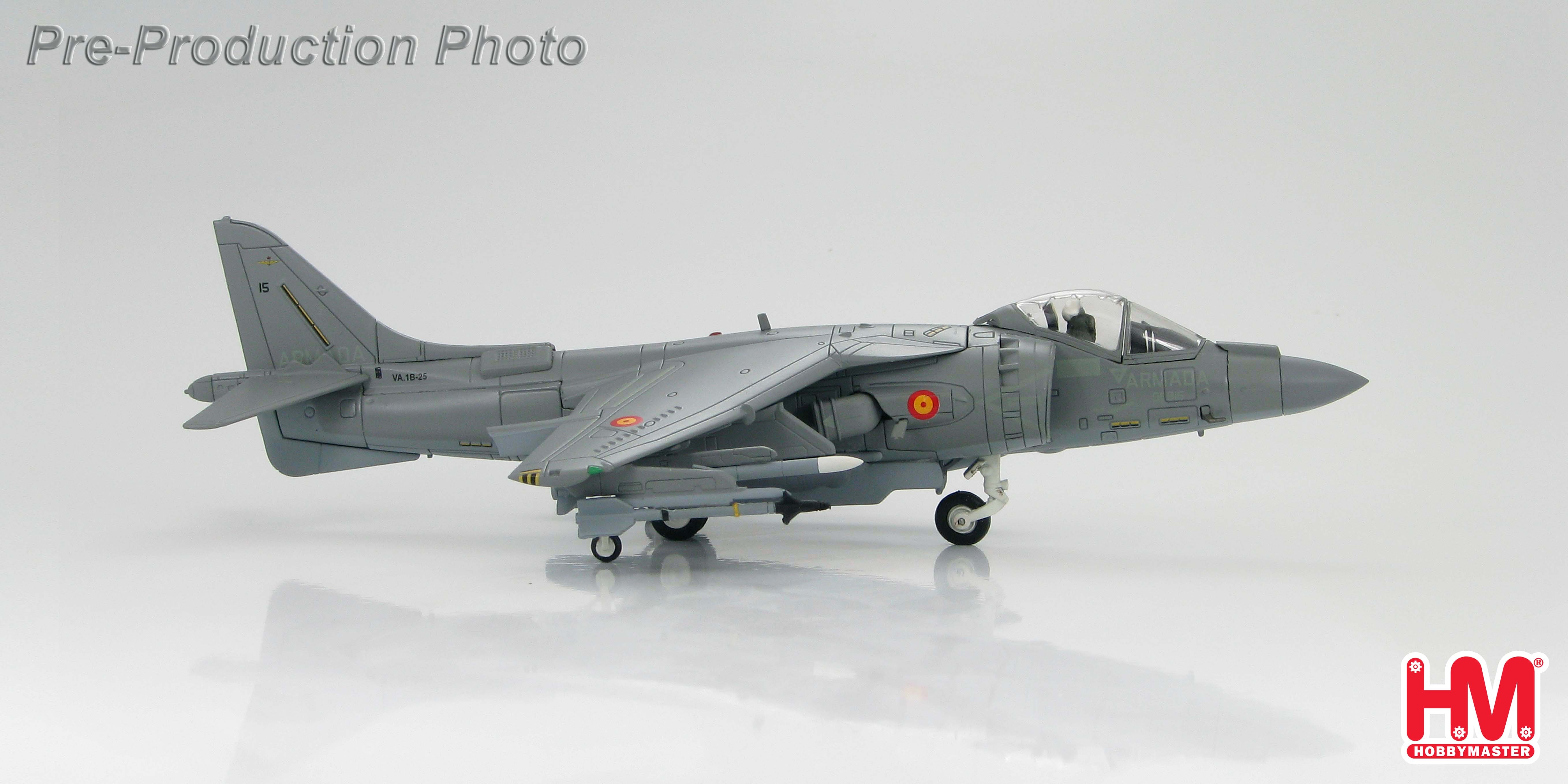

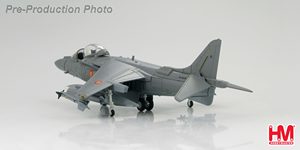

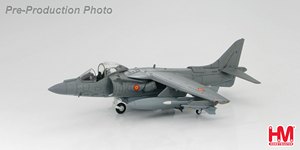

Hobby Master 1/72 Air Power Series
HA2606
AV-8B Harrier II Plus
Armada Espanola, Novena Escuadrilla
VA.1B-25 "01-915"

Die-cast metal.
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Weapons that are not permanently attached.
Comes with crew figure.
Display stand included.
Option to display model with wheels up or down.
Minimum use of plastic.

The AV-8B II + is the second generation of Harriers. Using its VSTOL (Vertical and Short
Take Off Landing) abilities the Harrier is capable of using almost any surface to attack
and destroy air or ground targets. Armed with conventional or specific weapons the AV-
8B II + can be used in offensive or defensive roles. Now with air-borne radar the AV-8B II
+ can deliver its ordnance day or night. The AV-8B II + can be air refueled allowing it to
be deployed for extended periods.

In 1996 the Spanish Navy (Armada Española) received 8 new EAV-8B+ known as
“Matador II+” in Spain. These are the Spanish version of the Harrier II Plus. The
Matador II+’s were assembled in Spain by CASA and assigned to 9 Escuadrilla of the
Aircraft Fleet of the Spanish Navy based in Rota (Cadiz) and operate from the aircraft
carrier R11 “Príncipe de Asturias”. These aircraft are used in a fighter attack role.
Matador II+ VA.1B-25 was built as Serial #165029 build # E14/SP-02 and given the ID
01-915. In 2003 serial numbers also began to be marked on the aircraft as well as the
individual aircraft codes.
