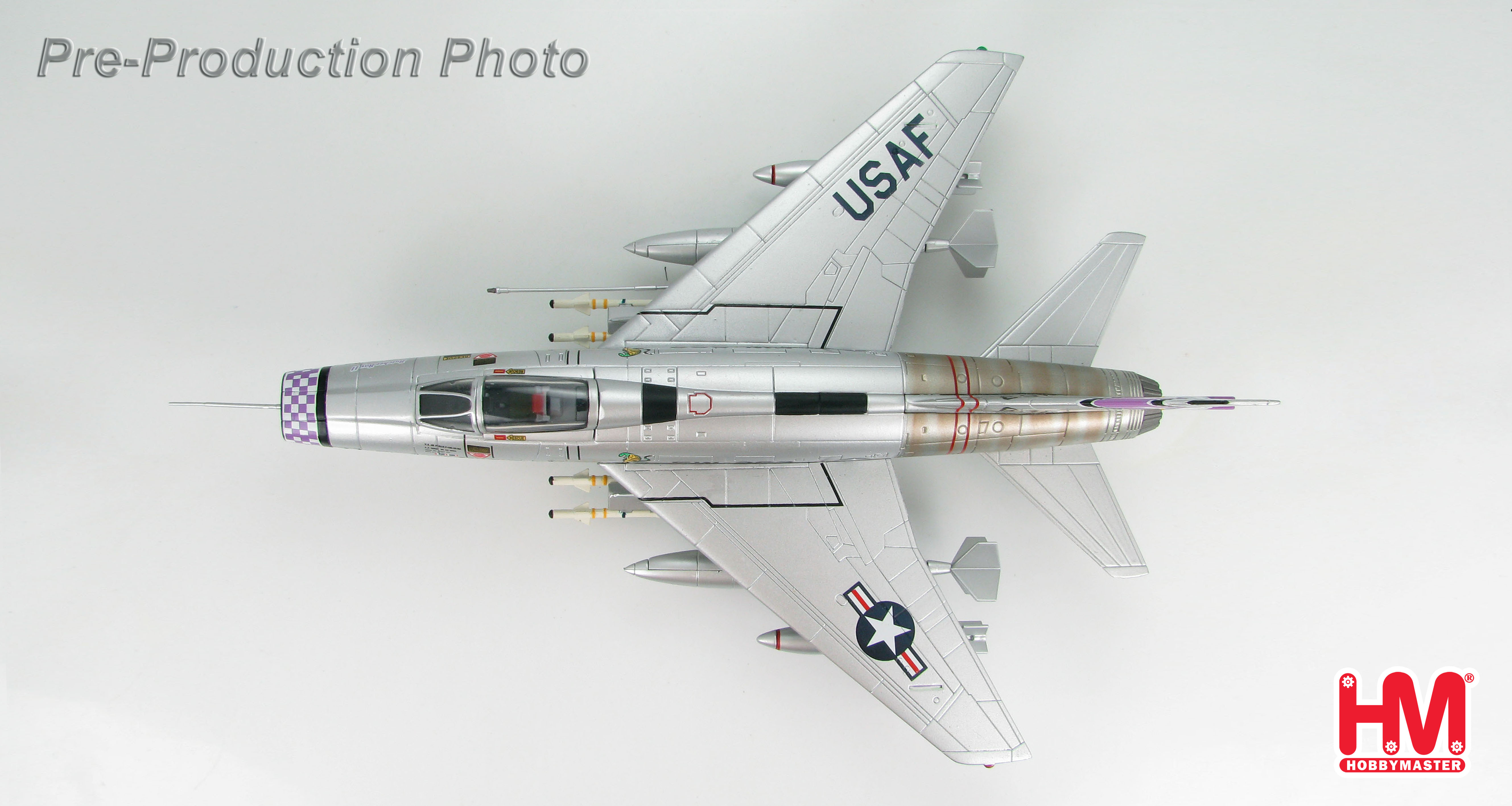

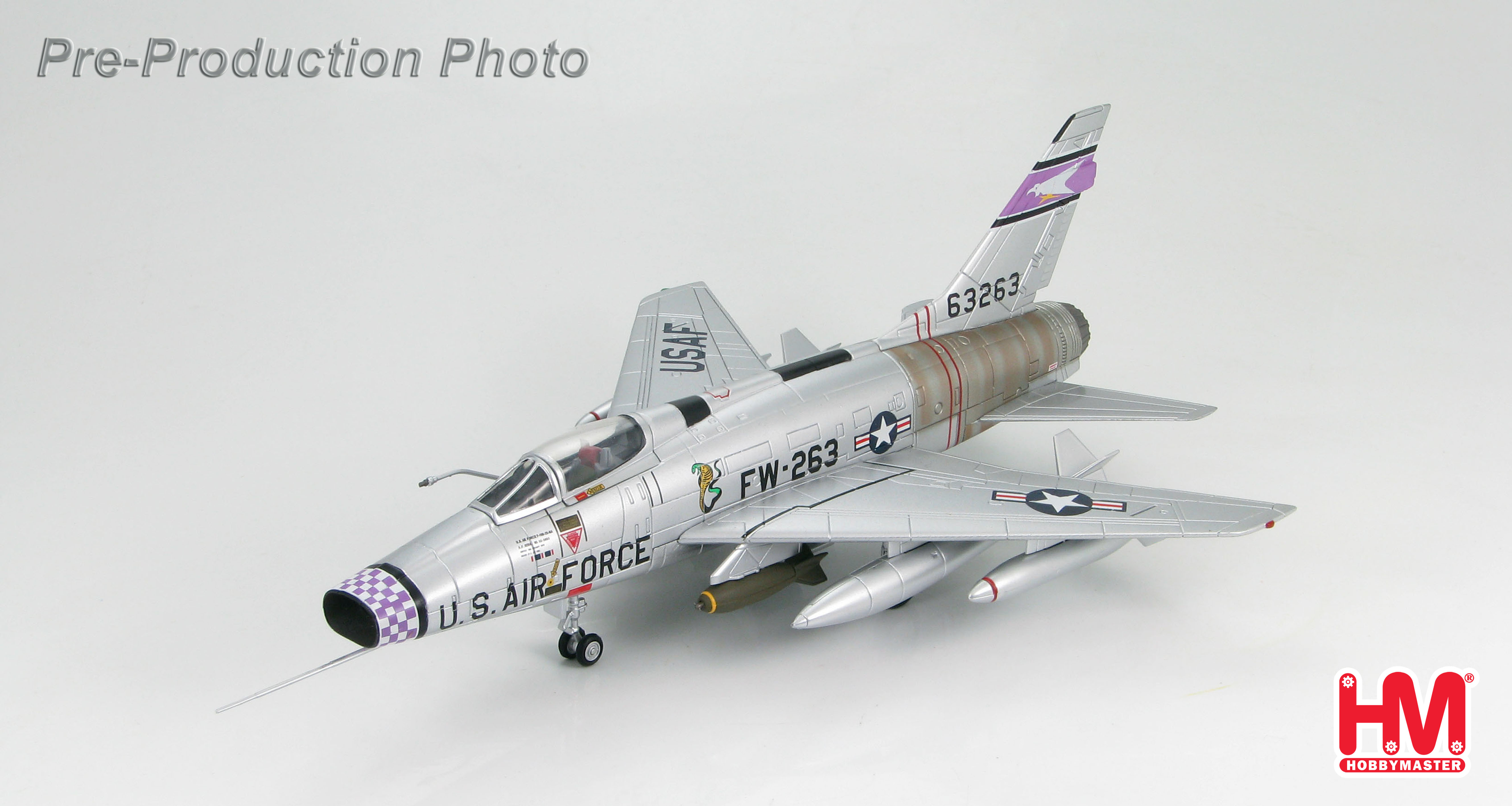

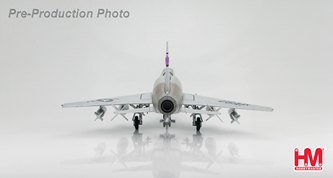

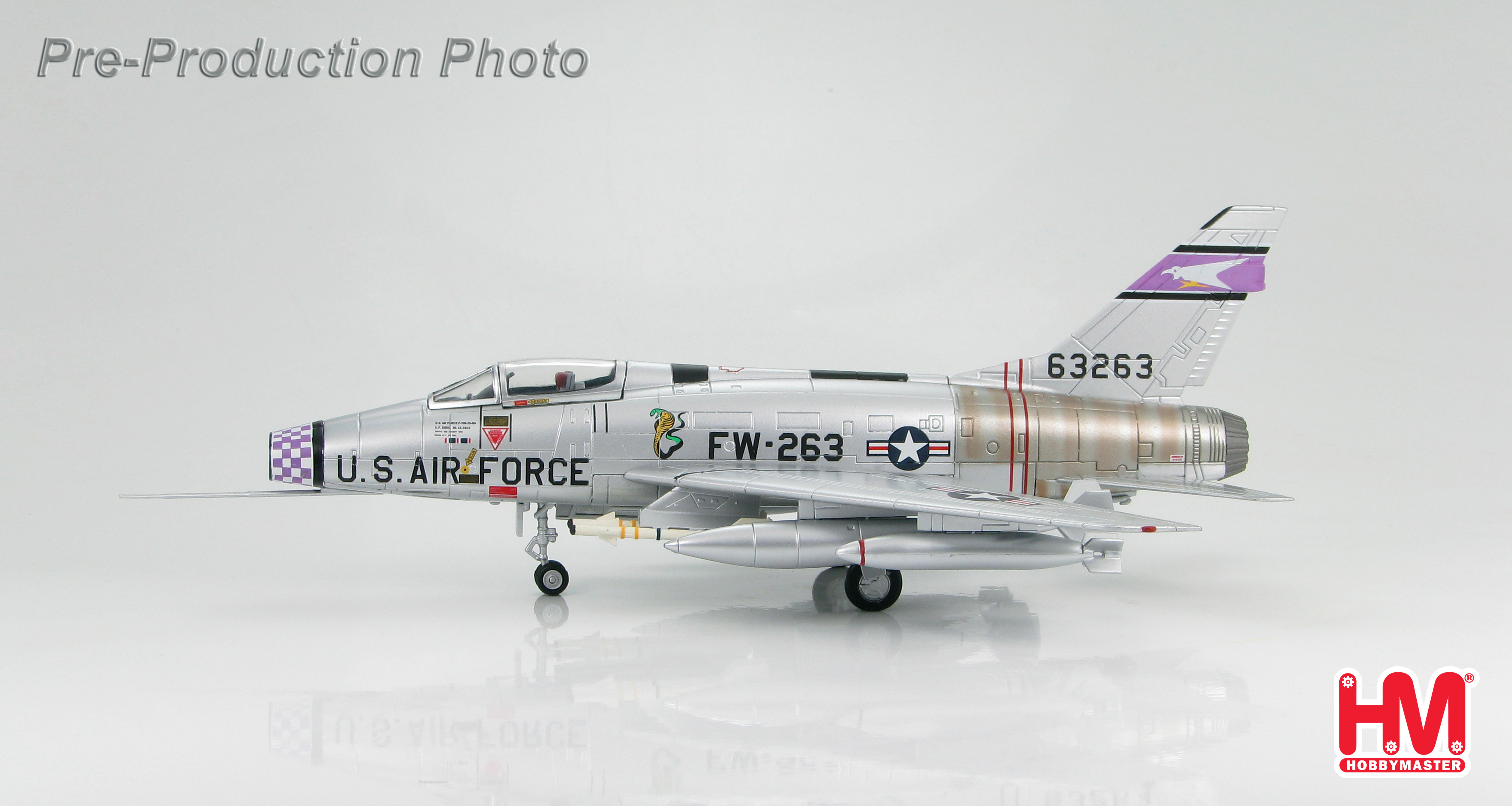

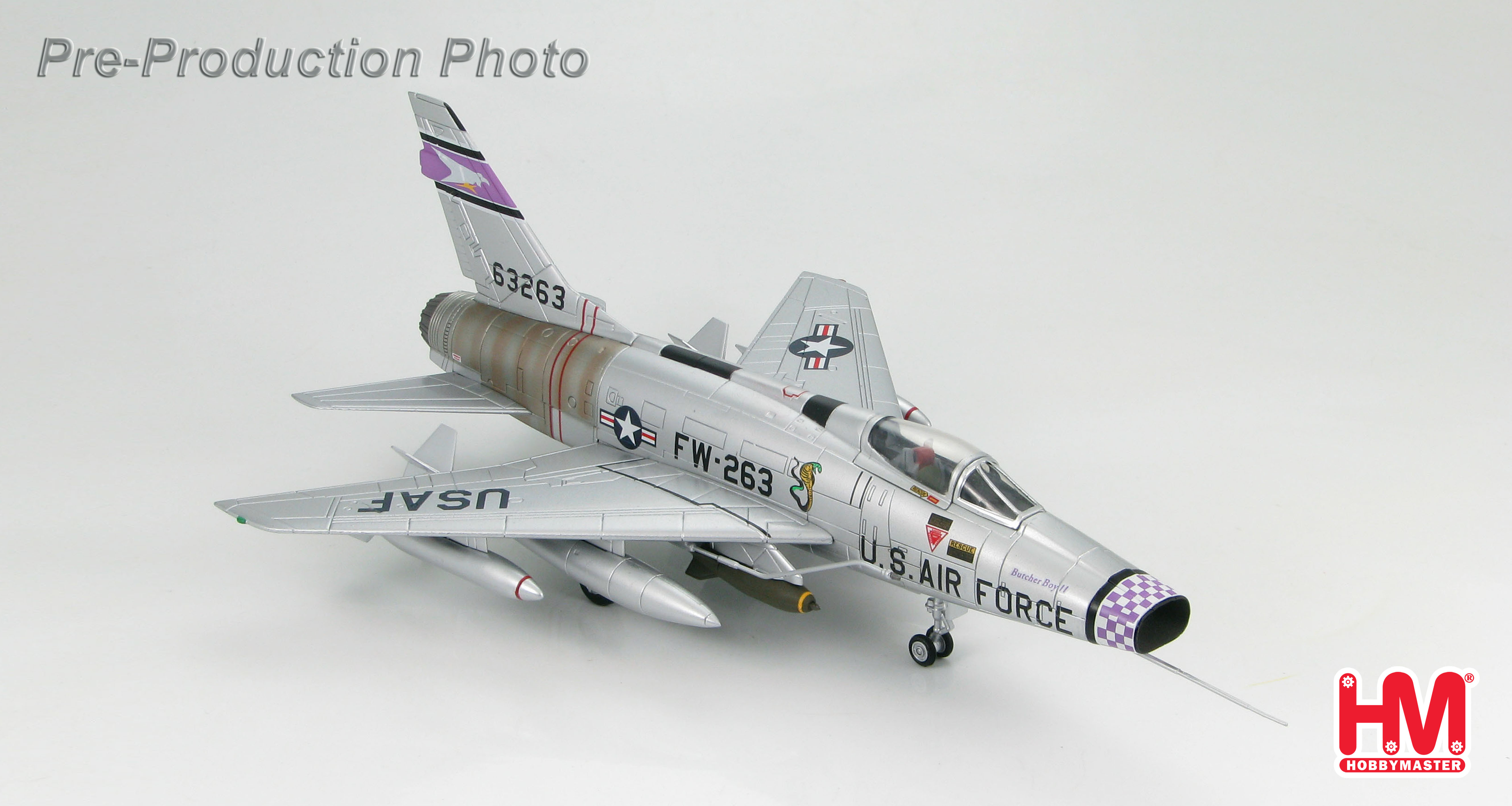

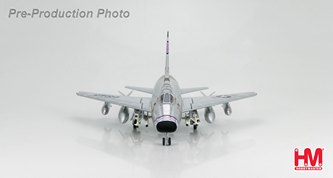

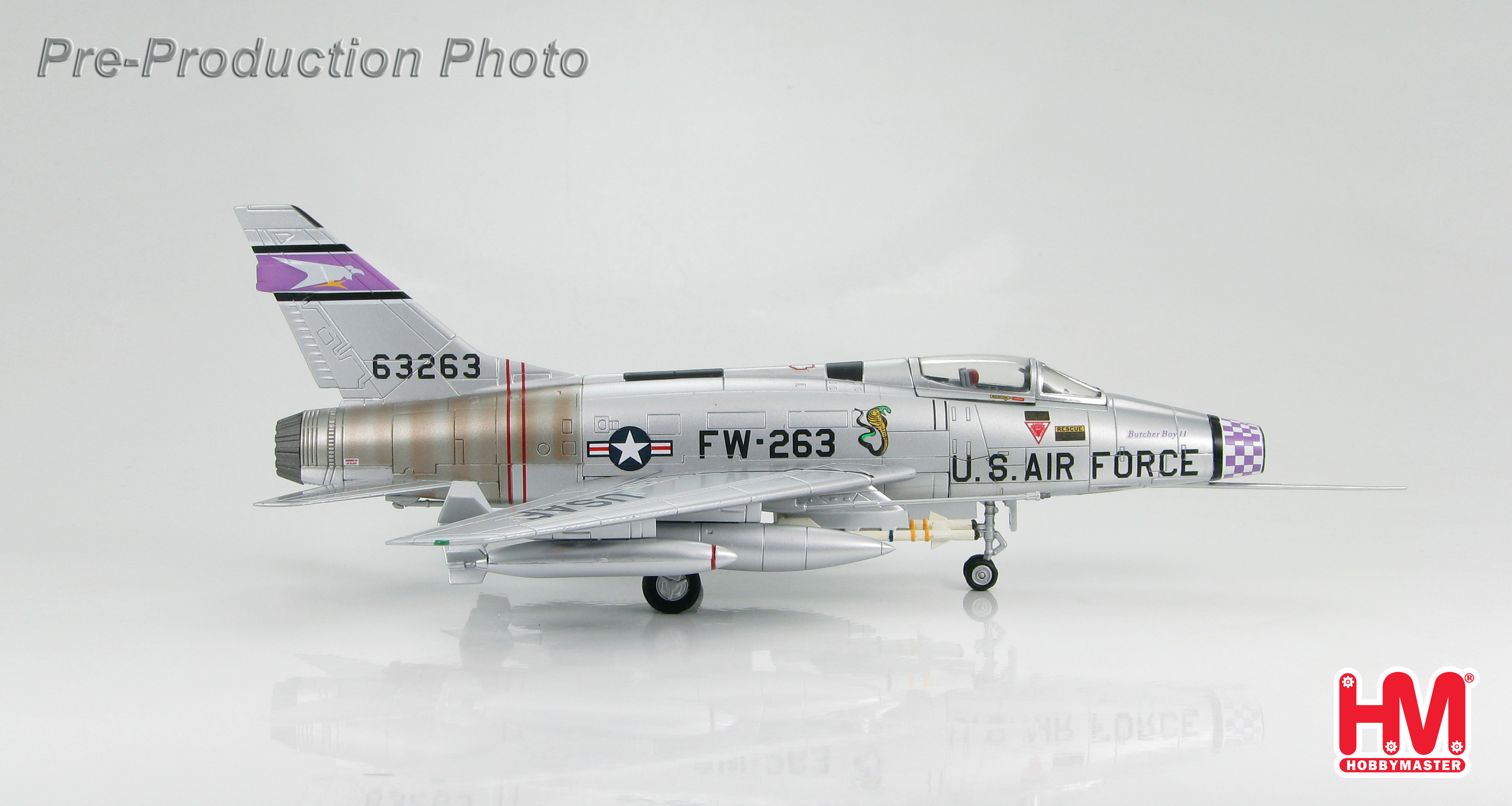

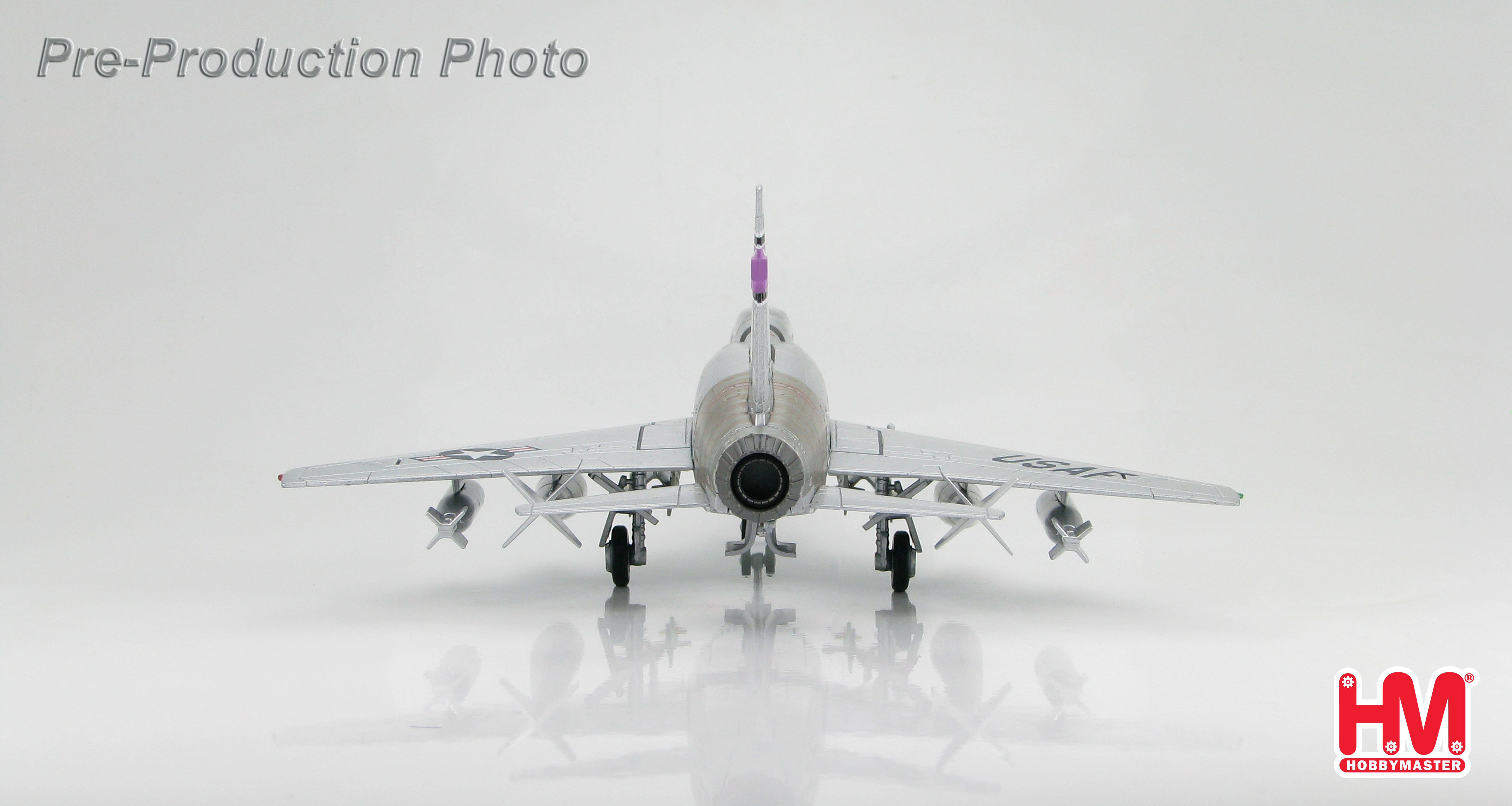

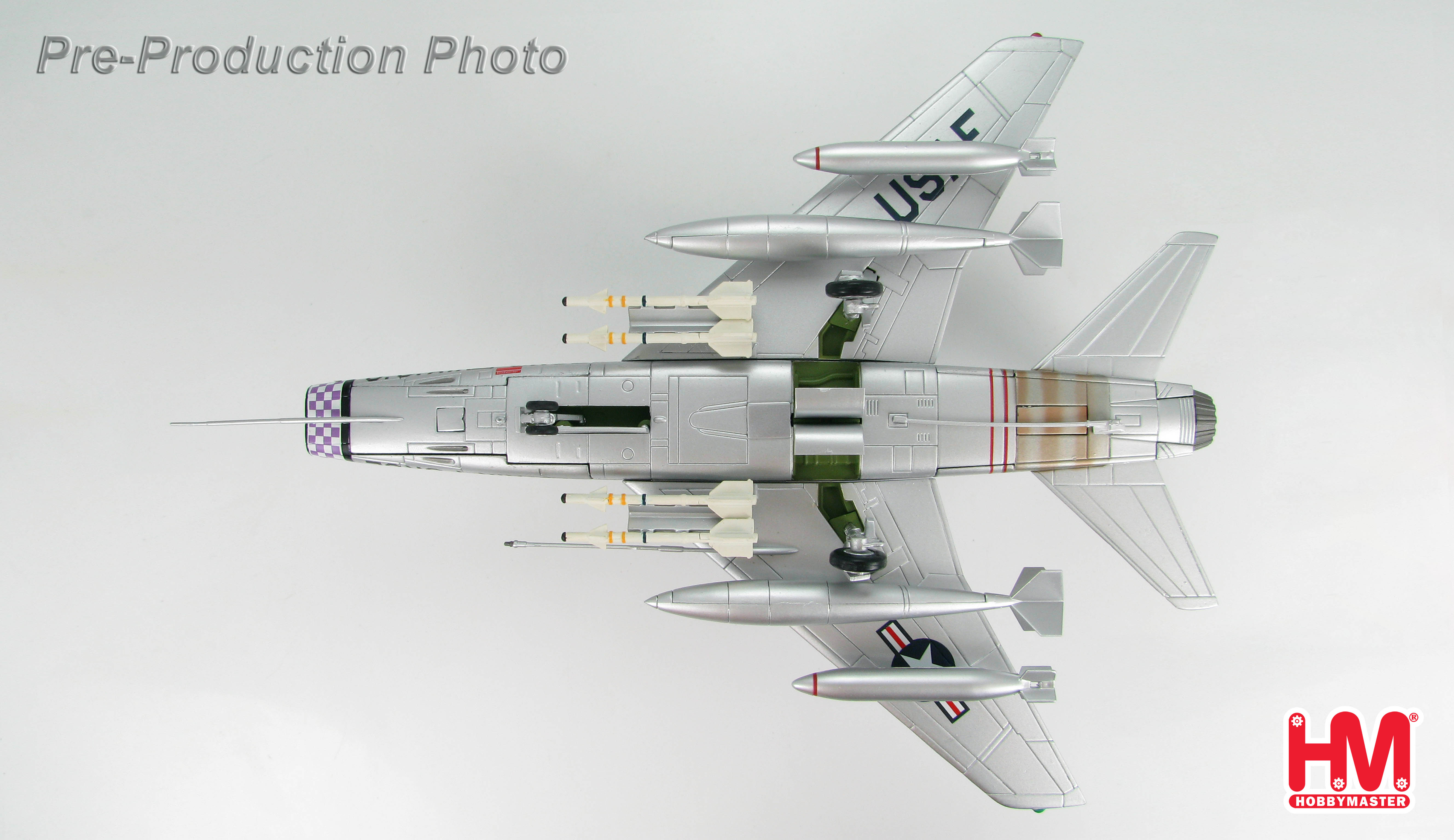

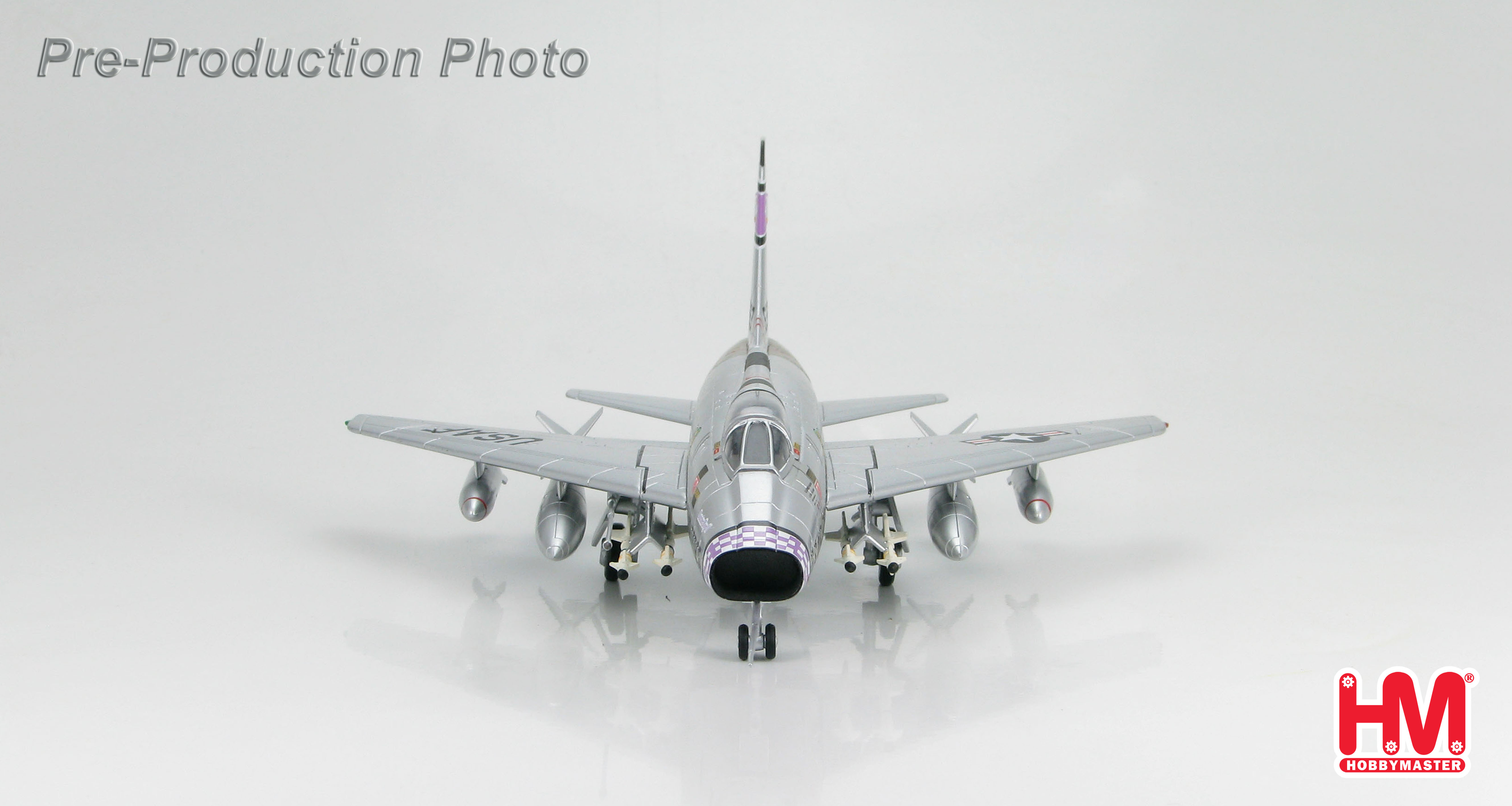

Hobby Master 1/72 Air Power Series
HA2112
F-100D Super Sabre
510th FS, 405th FW, Takhli RTAB,
Thailand 1960s
|
True 1/72 scale
Professionally painted
Great attention to detail
All markings are Tampoed (pad applied)
Option to display the model on a stand that is provided
Model can be shown with the landing gear in the down or up positions
Optional armament has been provided
Canopy displays open or closed
Pilot figure
Extremely heavy metal with a minimum of plastic
Highly collectable
The "D" variant was the ultimate version of the F-100 with 1,274 aircraft being
produced. The production of the F-100 ended in August 1959. The F-100D arrived in
Southeast Asia in 1962 with its primary mission being close air support and ground
attack within South Vietnam. This role was eventually taken over by the A-7 Corsair II.
The aircraft became affectionately known as “The Hun”, short for “one HUNdred”. The
last F-100 left Vietnam in July 1971 but not before 242 of these aircraft was lost. The
“Hun” was eventually replaced by the F-4 Phantom II and the F-105 Thunderchief.
Formerly designated the 510th Fighter-Bomber Squadron the unit was re-designated
the 510th Tactical Fighter Squadron (Buzzards) on March 11 1959. On April 9, 1959 the
510th was activated at Clark AFB, the Philippines and assigned to the 405th FW
equipped with the North American F-100D Supersabre. For the brief period from May 11
- June 8 1962 on the units first tour in SEA they were stationed at Takhli RTAFB,
Thailand. The symbol on their aircraft tail is a white Speed Bird and while in Thailand
they adopted the Thai Cobra symbol.
Specifications for the F-100D
Primary function
Fighter-Bomber
Engine
1 X Pratt & Whitney J57-P-21/21A turbojet, 10,200 lb.st. dry and 16,000 lb.st. with
afterburning.
Dimensions
Wingspan 38 ft 9 in
Length - 50 ft 0 in
Height - 16 ft 2 3/4 in
Wing area - 400 sq. ft.
Performance
Maximum speed - 770 mph at sea level (clean), 864 mph (Mach 1.3) at 36,000 ft (clean).
Initial climb rate - 19,000 ft/min. An altitude of 35,000 ft could be attained in 2.3 minutes.
Service ceiling - 36,100 ft, combat ceiling 47,700 ft, absolute ceiling 50,000 ft.
Normal range - 534 mi, maximum range 1,995 mi.
Fuel capacity – 1,739 US gallons internally, total of 2,139 gallons if maximum external
fuel is carried.
Weights
Empty - 21,000 lbs
Gross - 28,847 lbs
Maximum T/O - 34,832 lbs
Armament
4 X 20-mm Pontiac M-39 cannon
6 X under-wing pylons for up to 7,040 lbs of bombs, fuel tanks, or rockets.
1 X MK-28 or Mk-43/57/61 nuclear weapon could be carried.
In later versions, 4 X AIM-9B/E/J Sidewinder air-to-air infrared homing missiles could be
carried.
         |
