The F-4D was an improved “C” variant with most improvements being internal electronics and
avionics. The F-4D entered operational service in April 1966 and joined the combat forces in
Southeast Asia in May 1967. With the arrival of the “D” most of the “C” variant
was reassigned to ground attack with the “D”s taking on the air-to-air interceptor role. In 1968 –
1969 a total of 825 “D” models were produced 793 for the USAF and 32 for the Iranian Air Force.

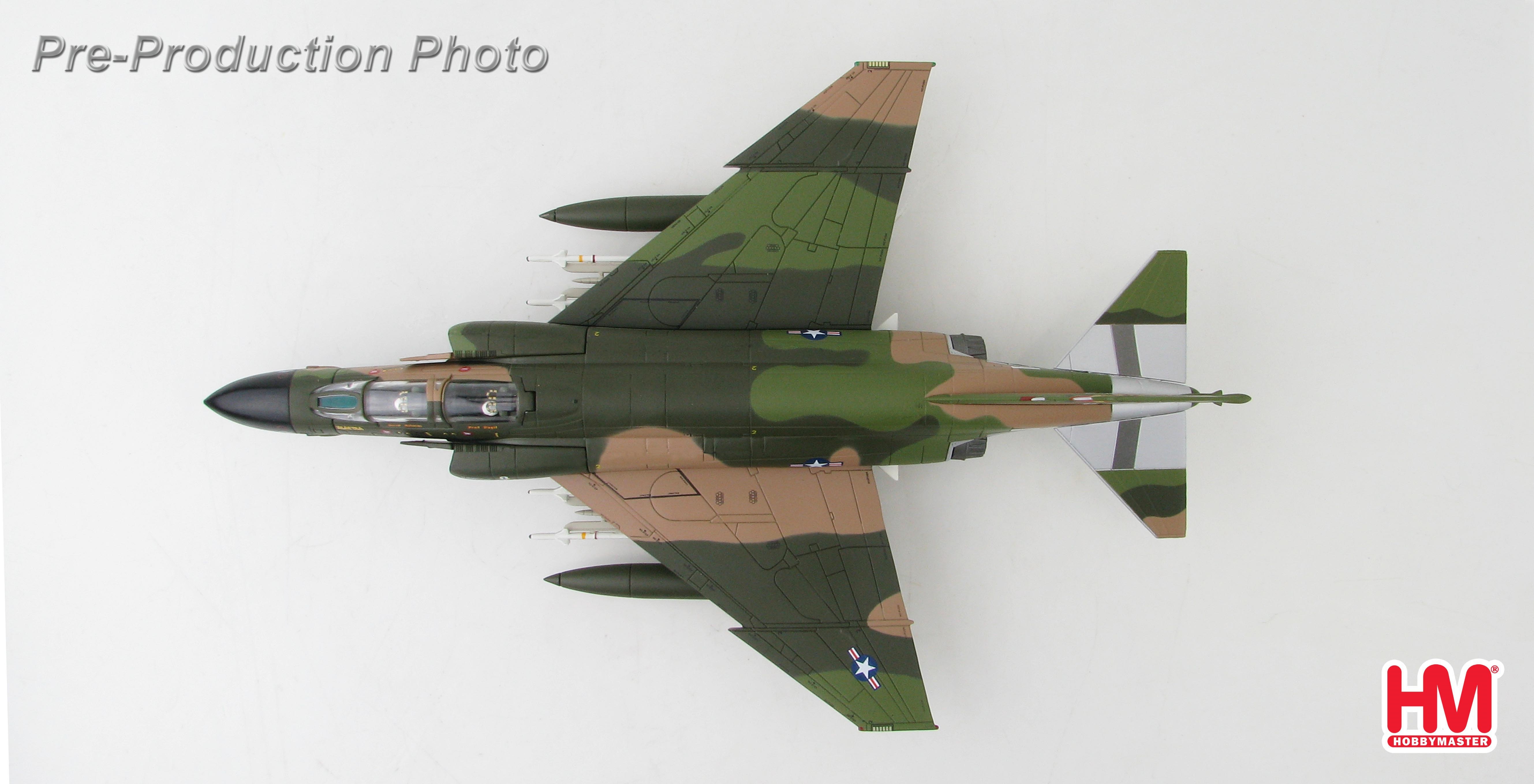

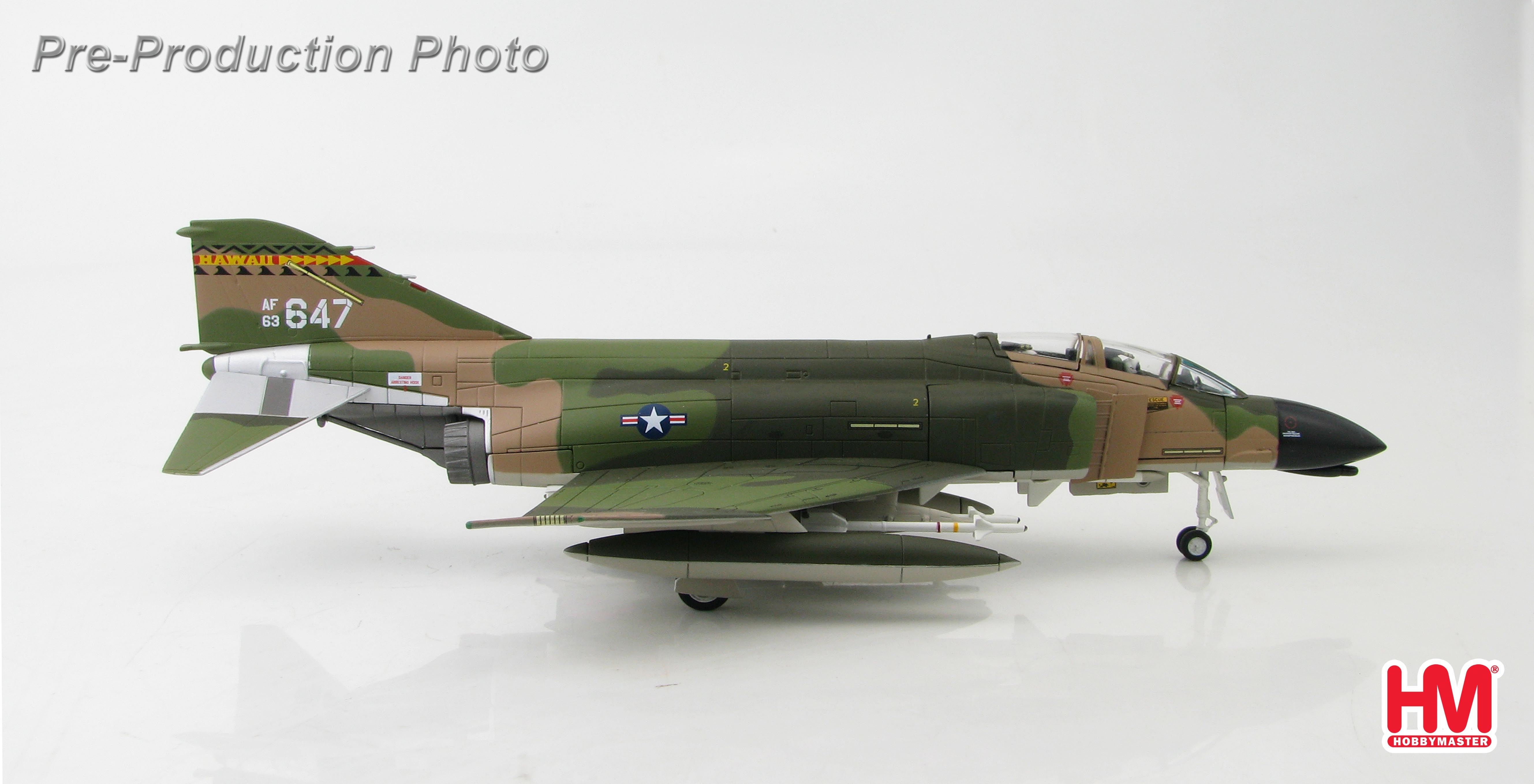

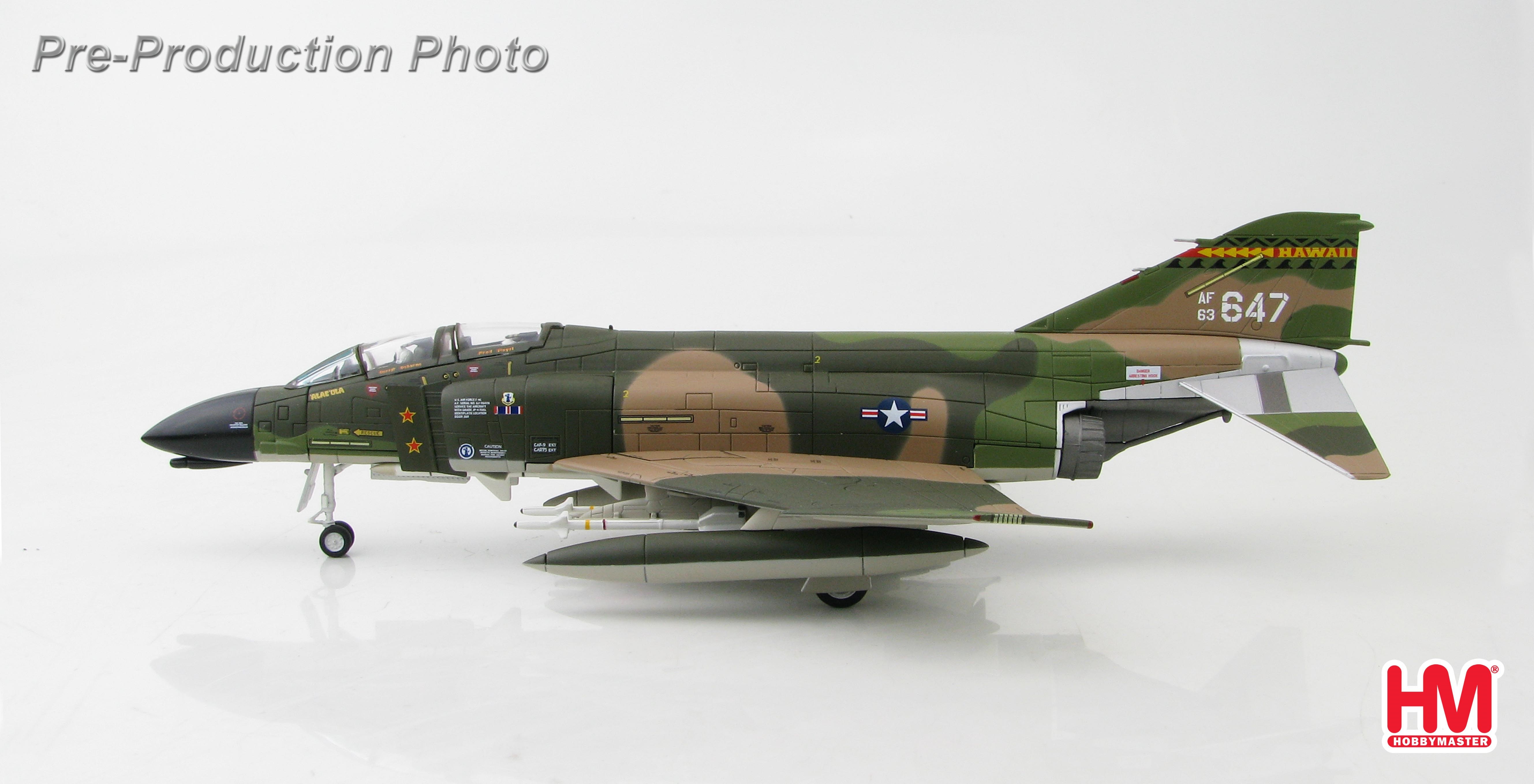

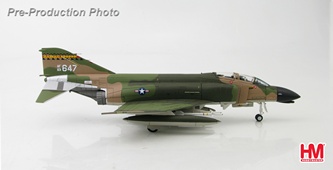

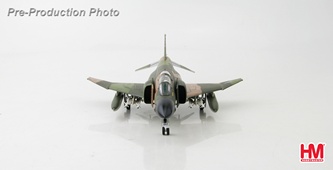

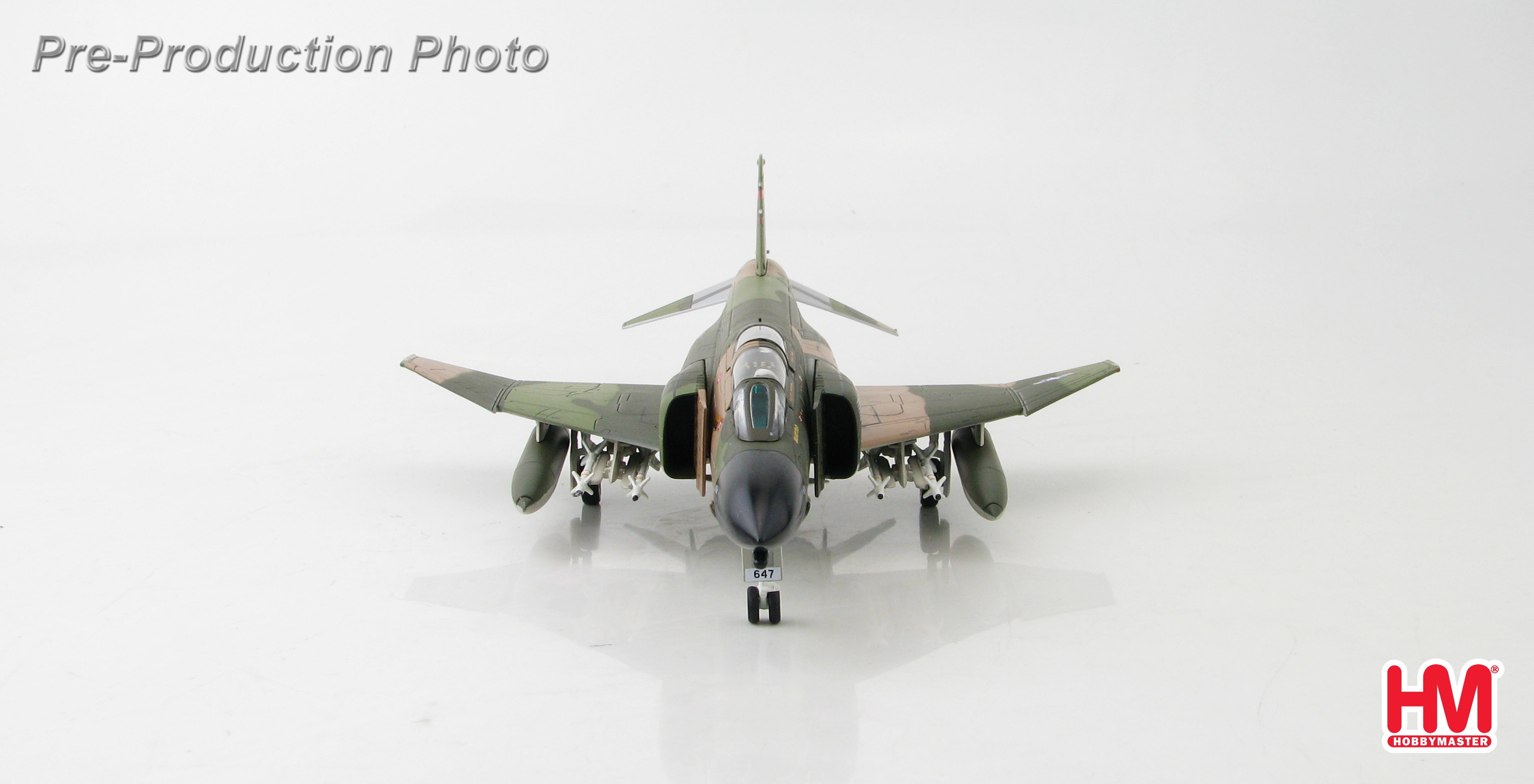

F-4C 63-7647 was delivered to the 8th TFW in 1964 and deployed in August 1965 to Korat,
RTAB. During the Vietnam War the aircraft served with several squadrons. On June 5, 1967
while with the 555th TFS Major R.M. Pascoe and Captain N.E. Wells scored the war’s last MiG
kill. After several more moves the aircraft transferred to the Hawaii ANG 199th TFS/154th TFG in
1978 where it remained until 1987 then going to the Oregon ANG 114th TFTS/142nd FIG. In
1989 the aircraft retired to the Evergreen Aviation & Space Museum, McMinnville, Oregon.

Specification of the F-4C

Manufacturer: McDonnell-Douglas

Role – Fighter

Performance
Engines - (2) General Electric J79-GE-15 turbojets, 10,900 lb.s.t dry, 17,000 lb.s.t. with
afterburner
Maximum Speed – 1,433 mph @ 48,000 ft, 826 mph at sea level
Initial Climb Rate - 40,550 fpm
Service Ceiling - 56,100 ft
Combat Ceiling - 55,600 ft
Combat Range - 538 miles
Maximum Range – 1,926 miles with maximum external fuel

Weights
Empty - 28,496 lbs
Gross - 51,441 lbs
Combat Weight - 38,352 lbs
Maximum Take-Off Weight - 58,000 lbs

Dimensions
Wingspan 38 ft 5 ins
Wing Area - 530 sq ft
Length - 58 ft 3 3/4 ins
Height - 16 ft 3 ins

Fuel
Maximum Internal - 1,986 US gallons (1,343 gallons in fuselage, 630 gallons in wings)
Maximum External - 600 US gallons in centerline tank underneath the fuselage and 740 US
gallons in (2) under-wing tanks / total fuel to 3,313 US gallons

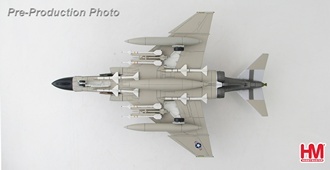

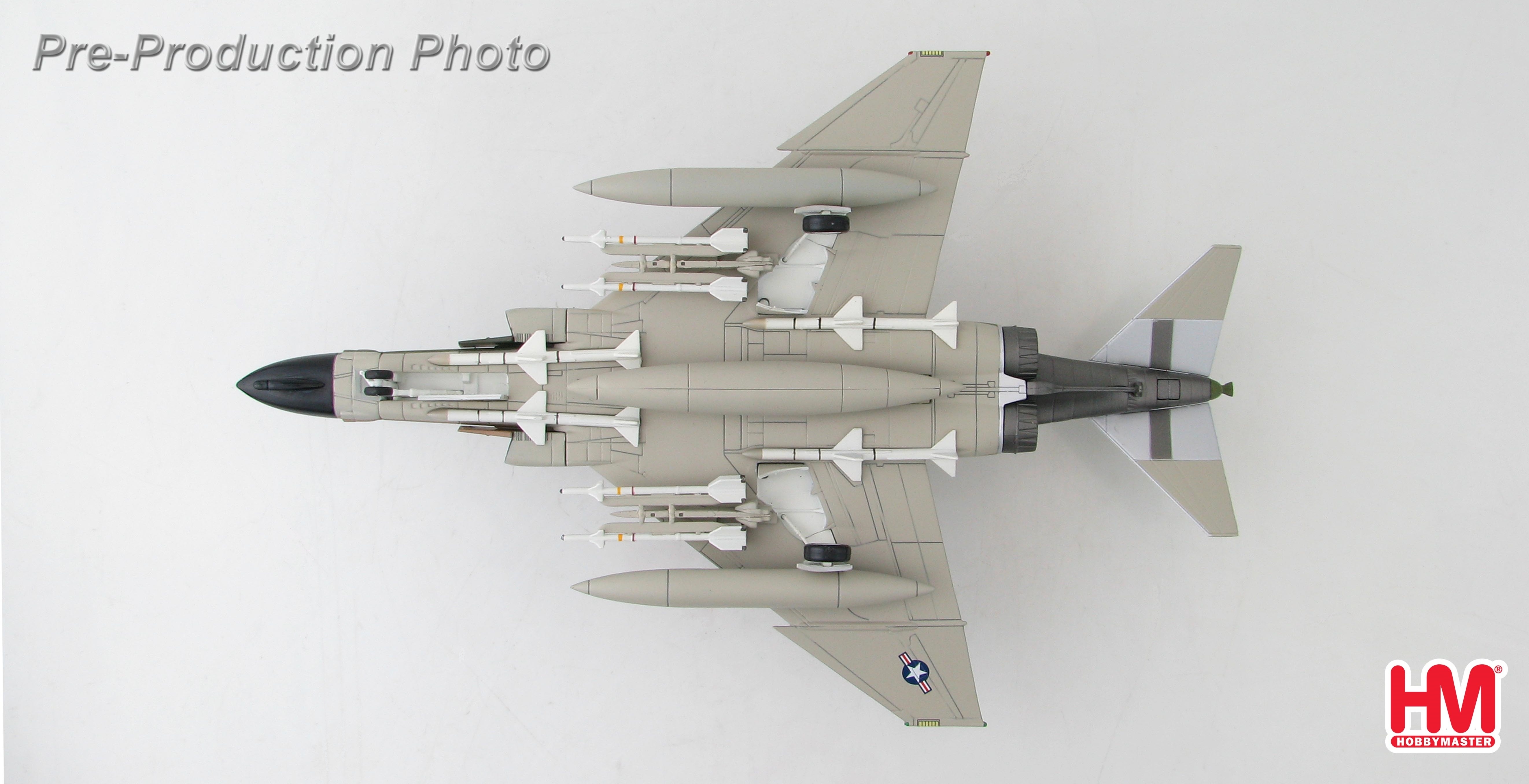

Armament
(4) AIM-7D or -7E Sparrow semi active radar homing missiles in under-fuselage recesses
Inner pylons could each accommodate (2) AIM-9B/D Sidewinder infrared homing missiles
Ground Attack Mode – able to carry up to 16,000 pounds of ordnance on centerline pylon
underneath the fuselage
Plus
(4) under-wing hard-points
