One of the most famous and easily recognized fighter aircraft of the post-WWII era was the
McDonnell F-4 Phantom II. This aircraft was developed as a private venture by the aircraft
company but was soon ordered by the USN as a carrier-based attack aircraft. Its first flight took
place on May 27, 1958 and it entered active service in December 1960. It wasn’t long after the
F-4B appeared that a fly-off was set up with USAF front-line fighters. It was no contest, the F-4
performed so well that the USAF ordered their own variant, the F-4C. As time went on, the F-4
evolved into well over a dozen variants.

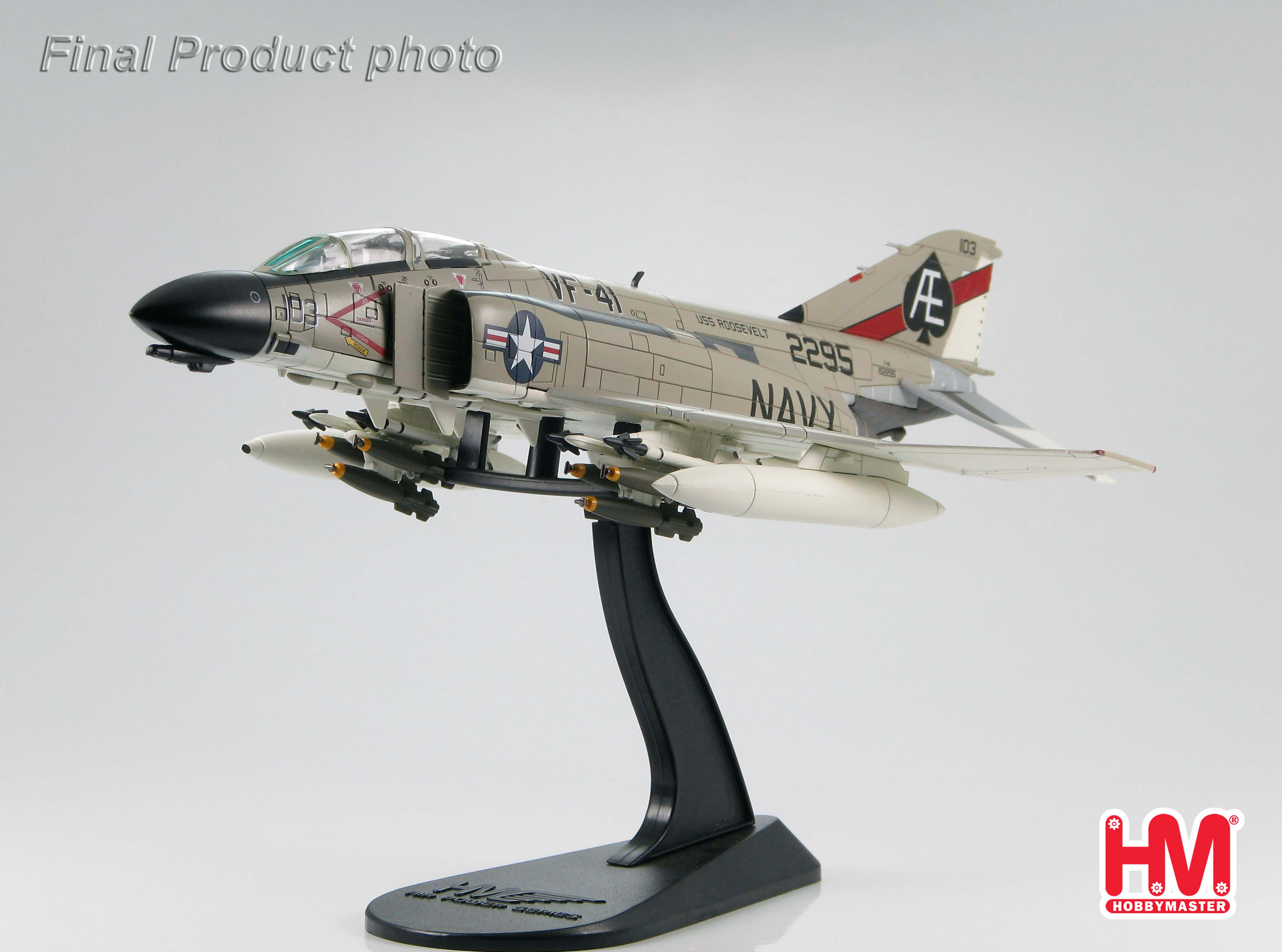

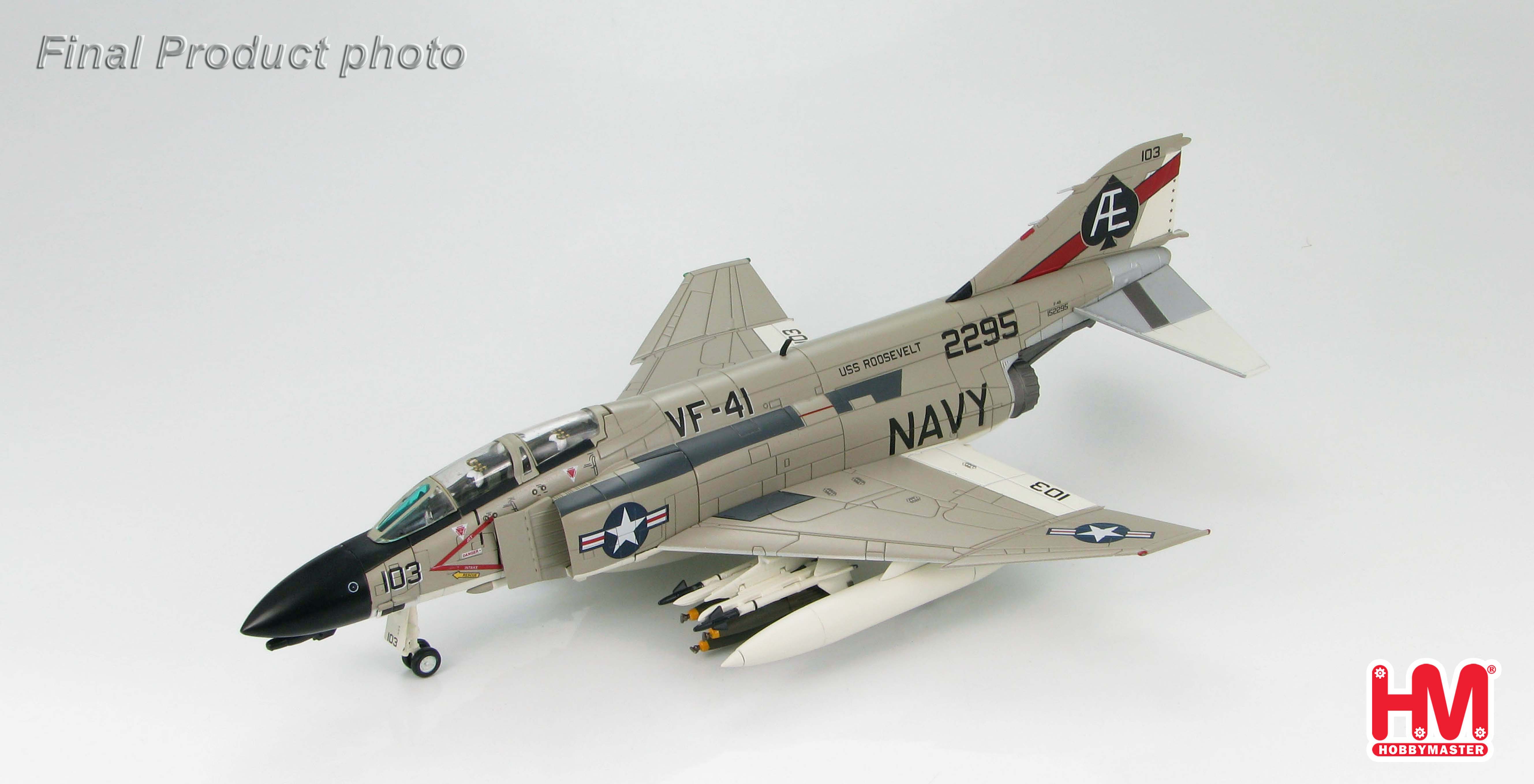

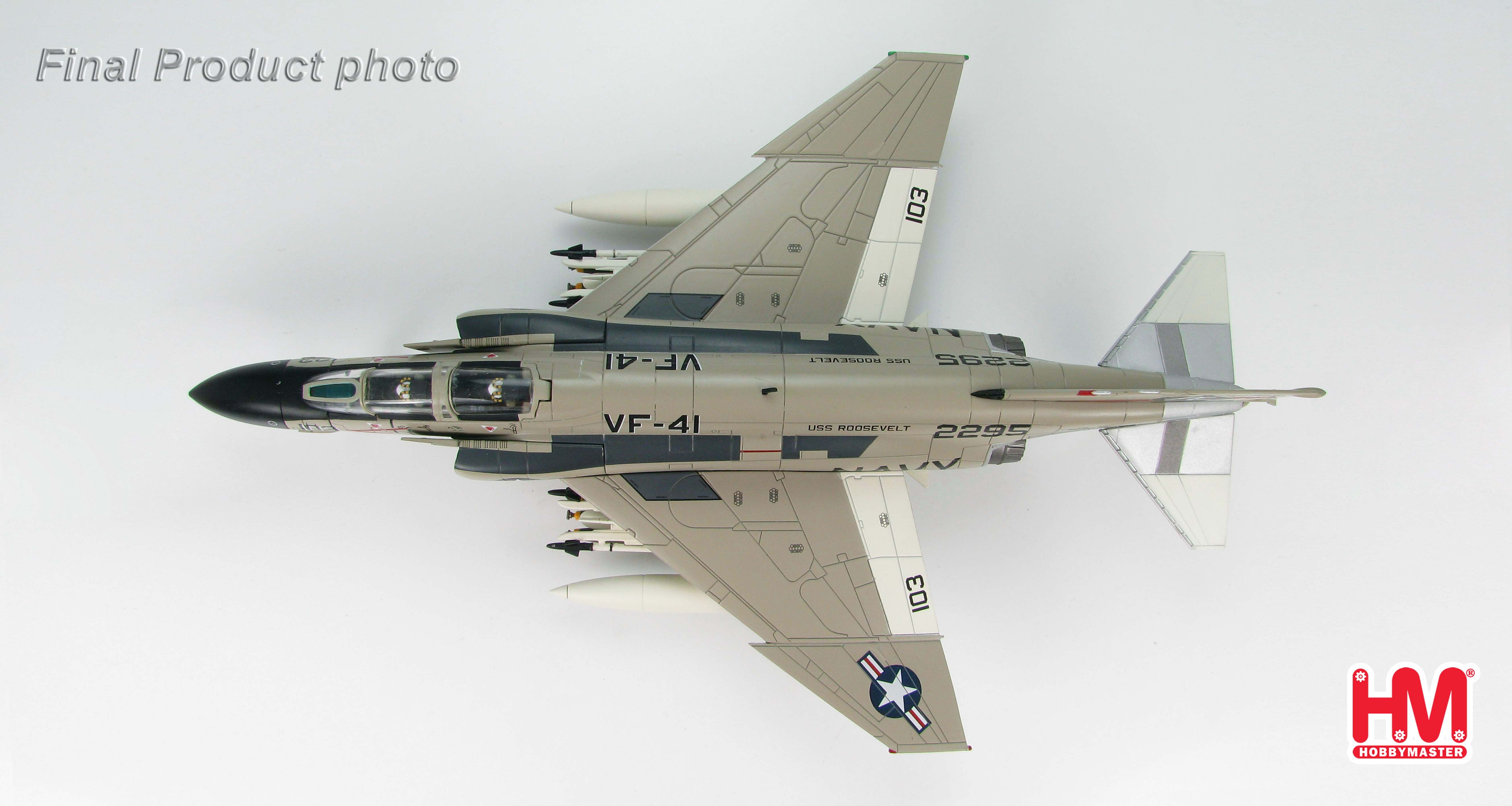

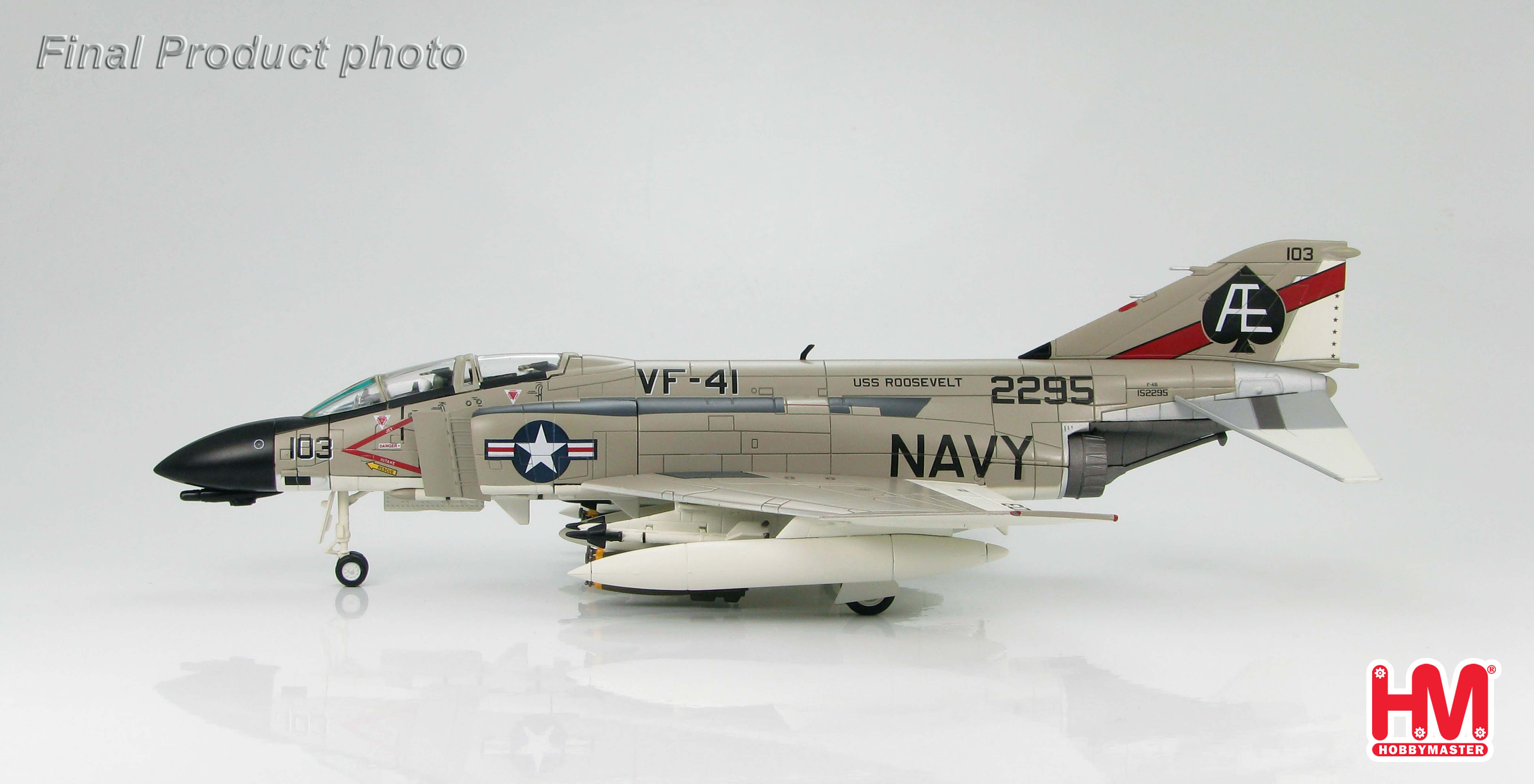

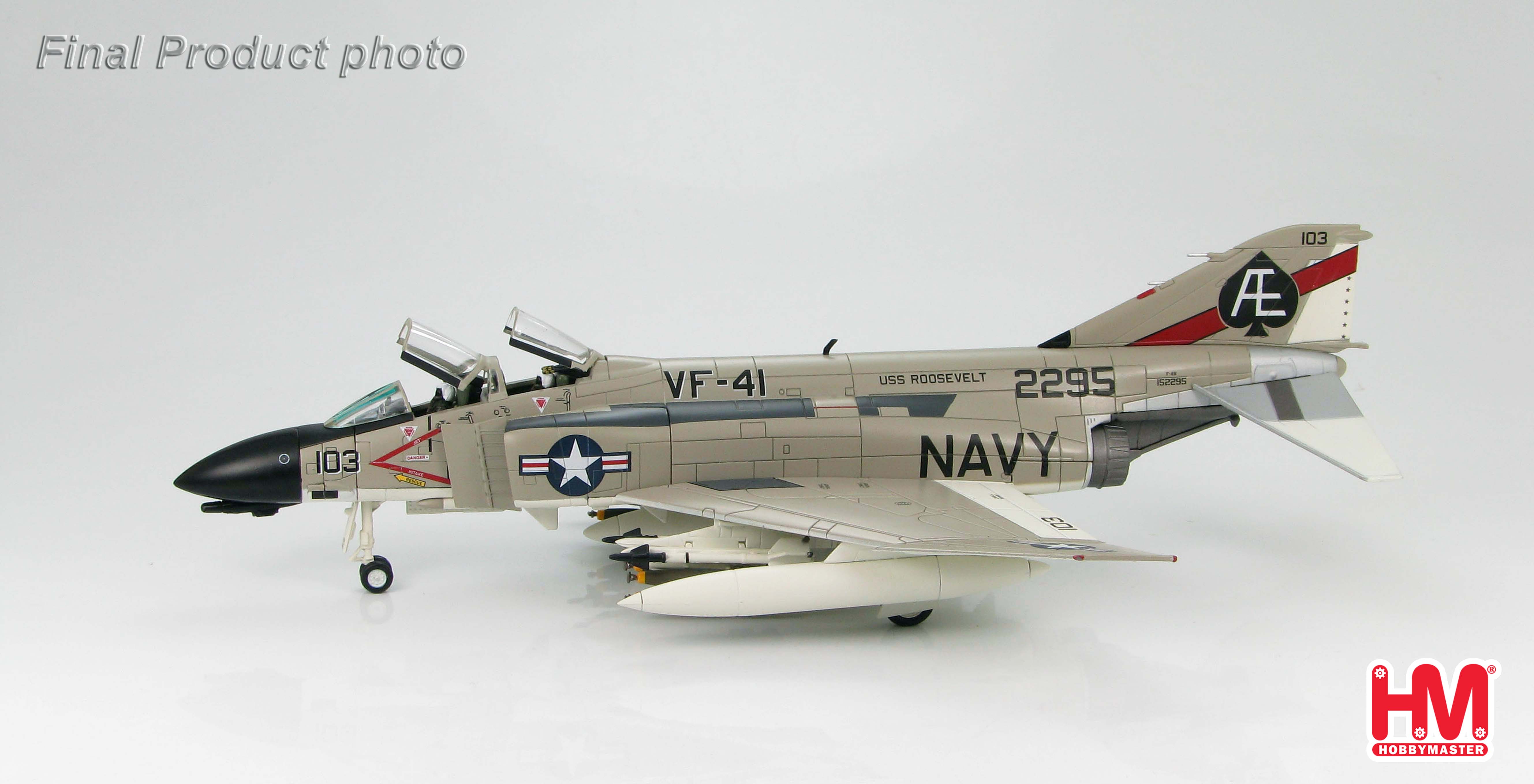

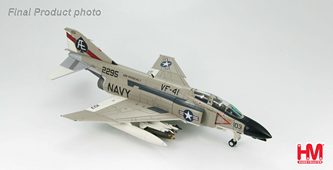

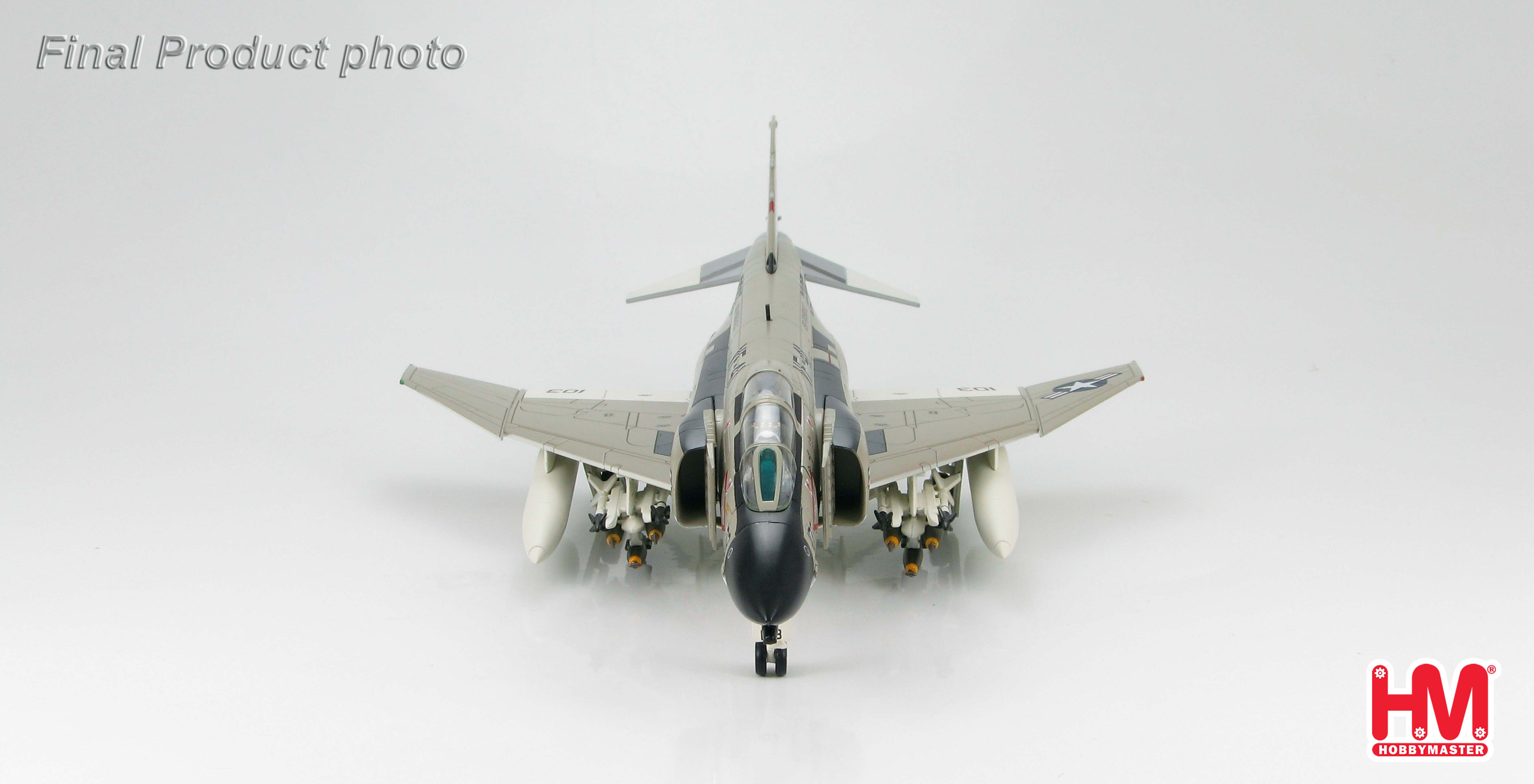

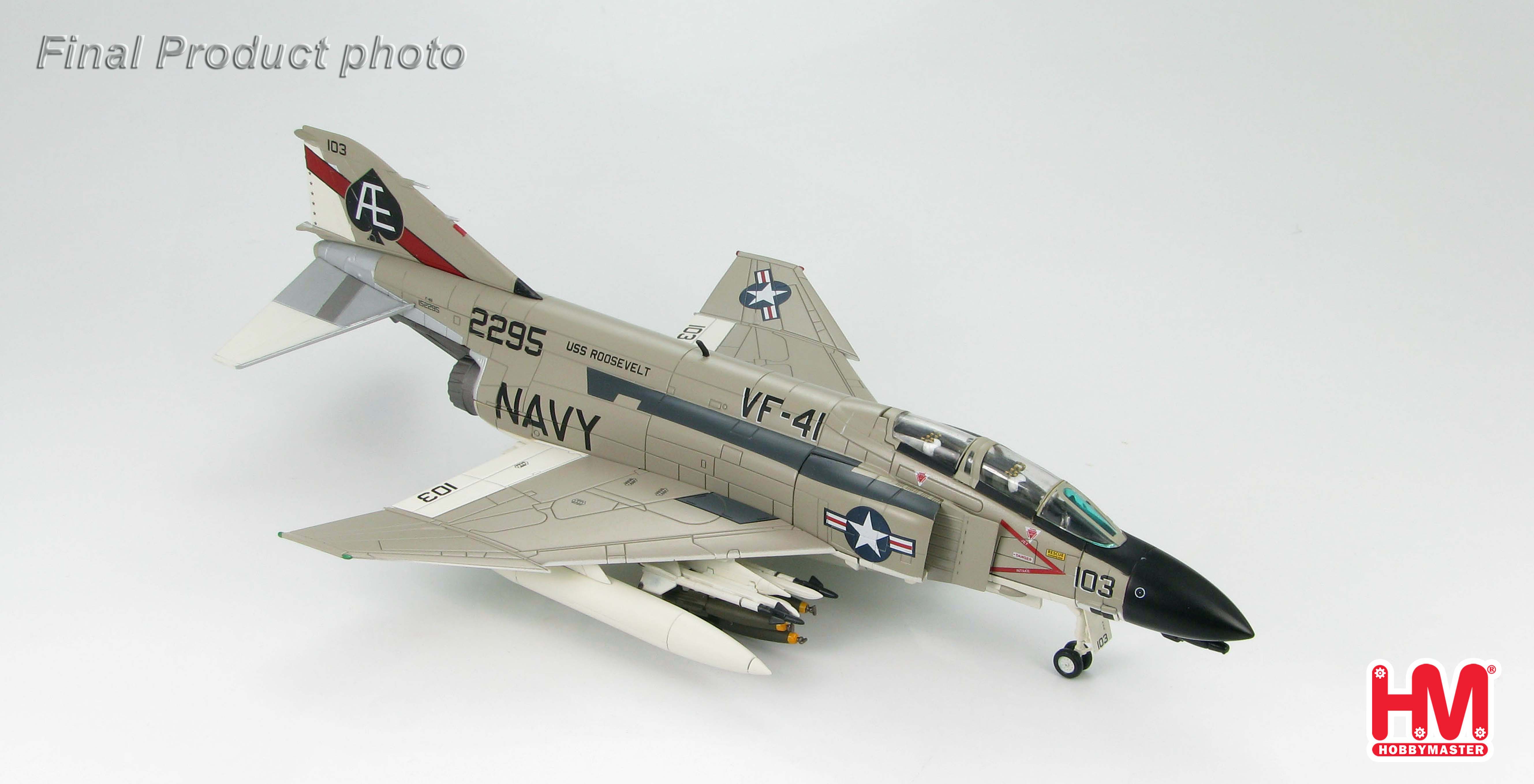

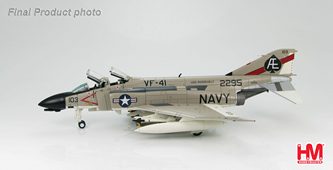

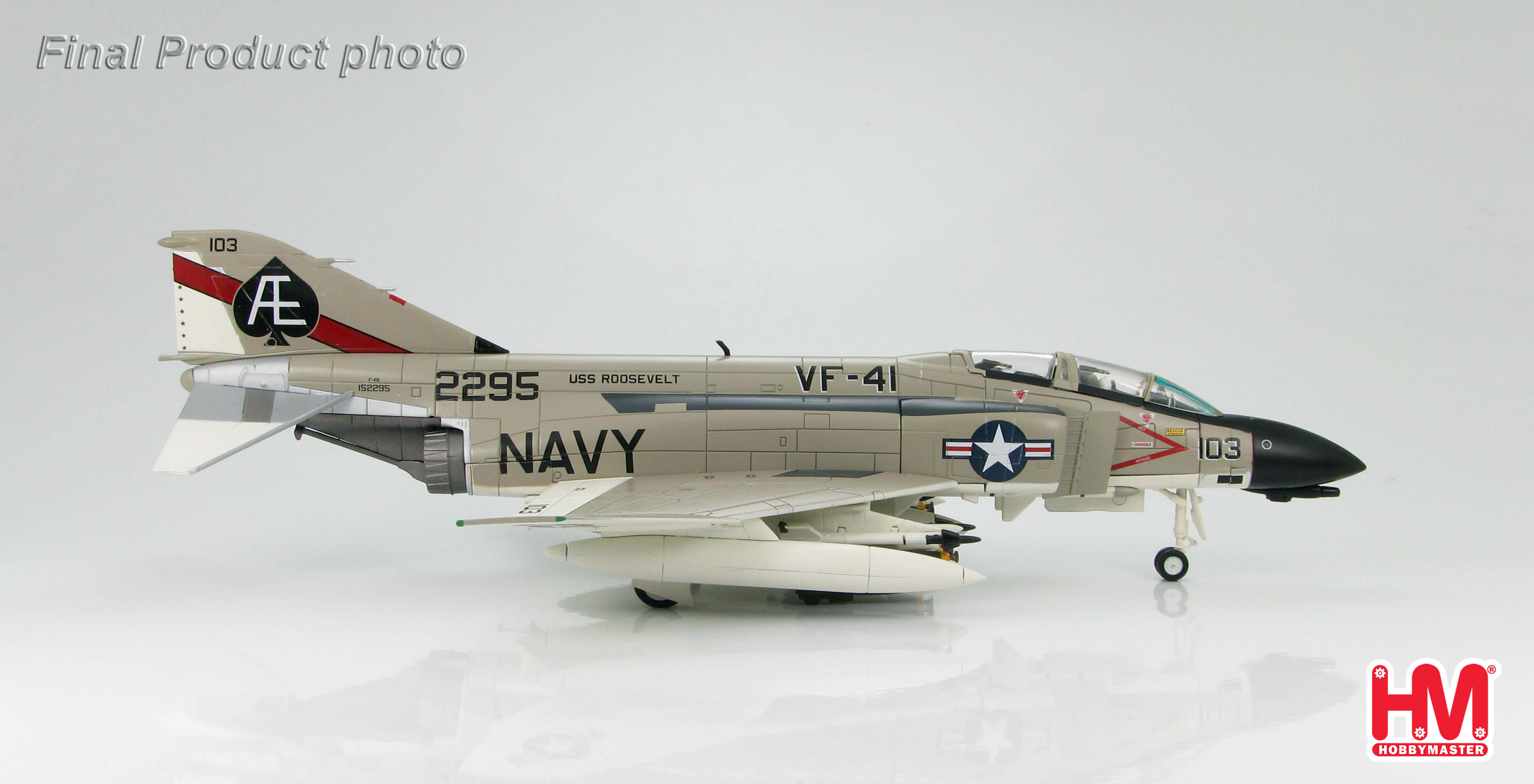

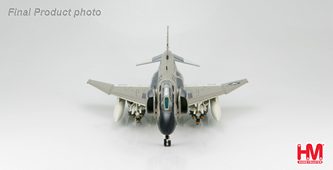

VF-41 the “Black Aces” received F-4B Phantom II for the first time in February 1962. During the
Cuban Missile Crisis in October 1962 the VF-41 F-4B’s were transferred to NAS Key West
Florida. In January 1970 the “Black Aces” were assigned to the USS Franklin D. Roosevelt.
The Roosevelt had several nicknames such as “Swanky Franky”, “Foo-De-Roo” and the most
popular was “Rosie”. In 1973 the USS FDR and VF-41 deployed to take part in a major
peacekeeping action during the Yom Kippur War. In 1975 VF-41 was one of the squadrons to
switch to the F-4N and that same year made their last deployment with the F-4 aboard the
USS Roosevelt.

Specification of the F-4B Phantom II
Number of “B” variant built for USN and USMC - 649
Engines – 2 x General Electric J79-GE-8A/-8B/-8C turbojets, 10,900 lb.s.t. dry, 17,000 lb.s.t.
with afterburner
Performance
Maximum speed
@ Sea level - 845 mph
@ 48,000 ft - 1,485 mph
Initial climb rate - 28,000 fpm
Service ceiling - 62,000 ft
Combat ceiling - 56,850 ft.
Combat range
Normal - 400 miles
Maximum range – 2,300 miles with maximum fuel load
Weights
Empty - 28,000 pounds
Gross - 44,600 pounds
Combat - 38,500 pounds
Maximum take-off - 54,600 pounds
Dimensions
Wingspan - 38 ft 5 in
Wing area - 530 sq. ft
Length - 58 ft 3.75 in
Height - 16 ft 3 in
Fuel
Maximum fuel load
Internal in fuselage – 1,358 U.S. Gallons
Internal in wings – 630 U.S. Gallons
Total external fuel load – 1,988 U.S. Gallons
Maximum external fuel load
In center-line tank under the fuselage - 600 U.S. Gallons
In 2 x under-wing tanks - 740 U.S. Gallons
Combined fuel load – 3,328 U.S. Gallons

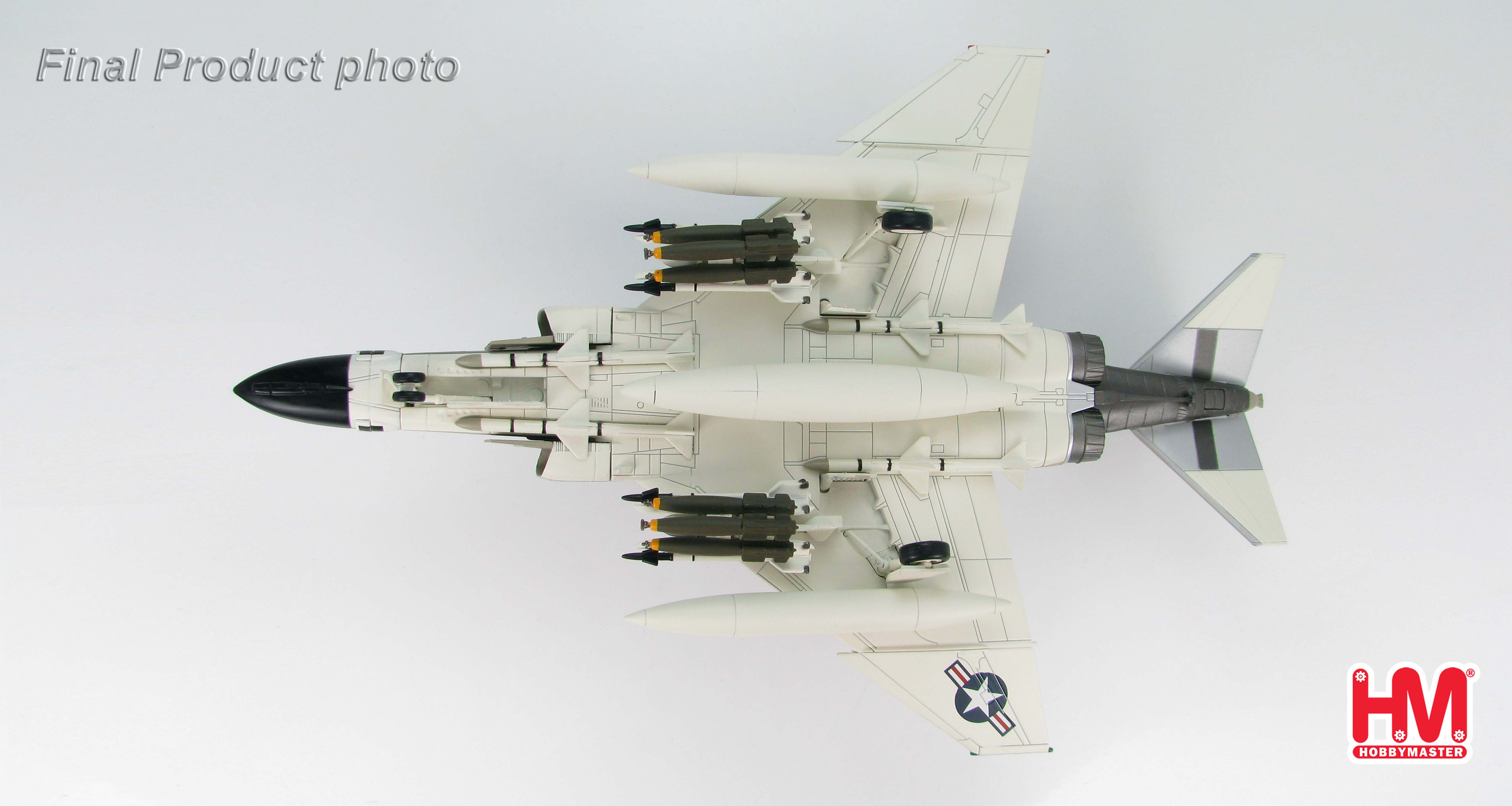

Armament
4 x AIM-7D or -7E Sparrow semi-active radar homing missiles in under-fuselage recesses
Inner under-wing pylons could each accommodate an additional Sparrow or a pair of AIM-9
Sidewinder infrared homing missiles
In ground attack mode, could carry up to 16,000 pounds of ordnance on centerline pylon
underneath the fuselage and on four under-wing hard-points
