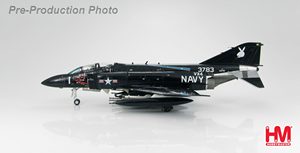

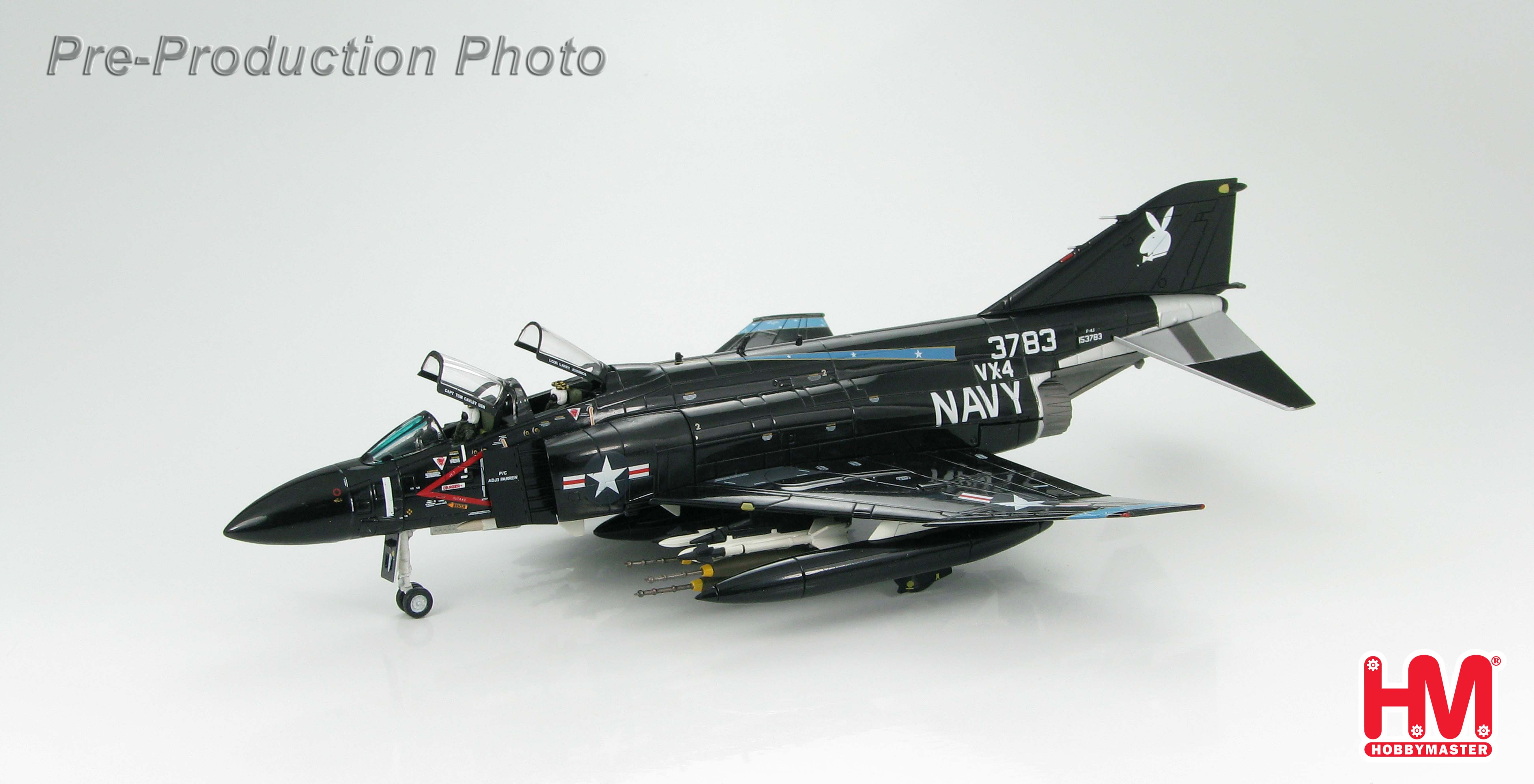

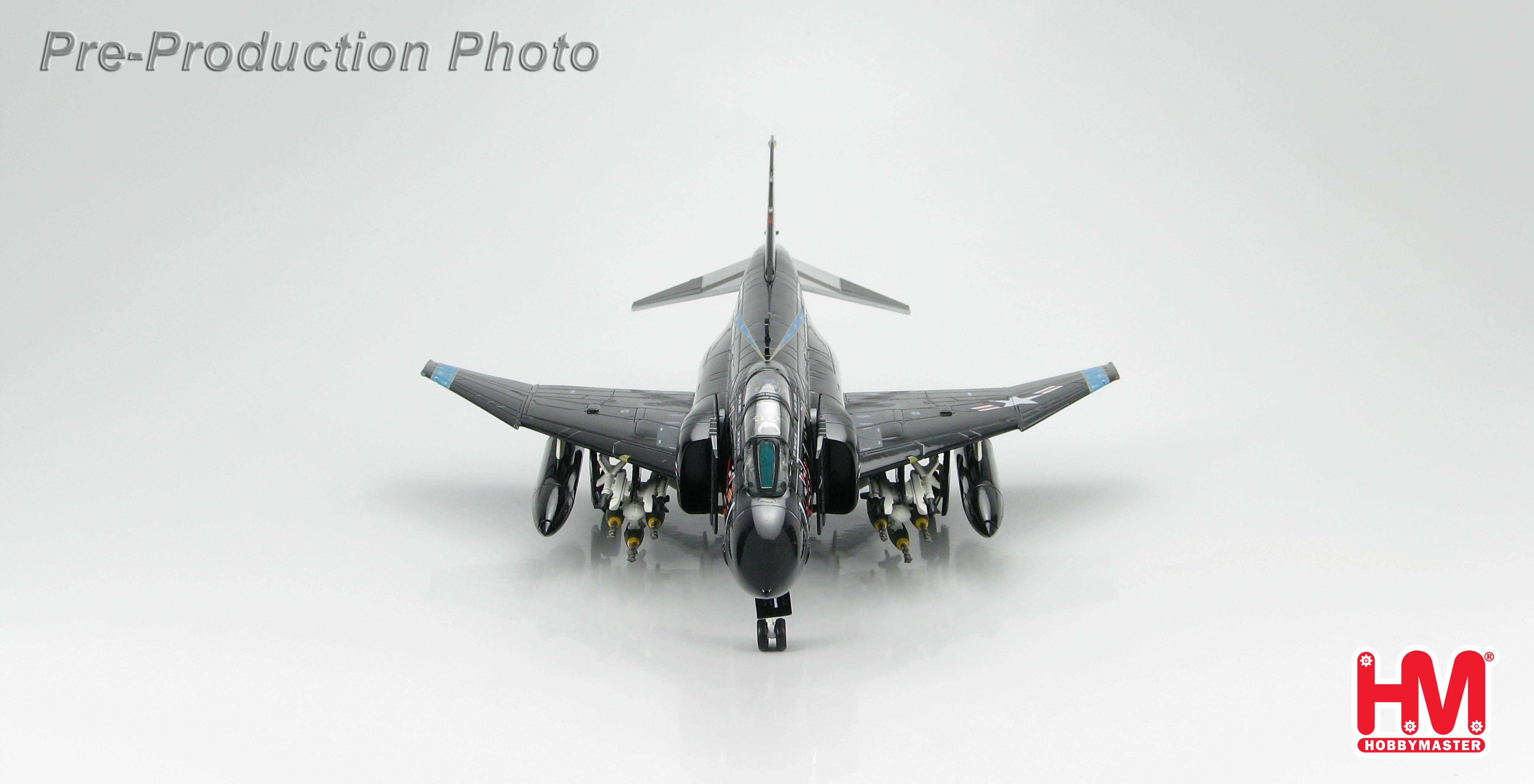

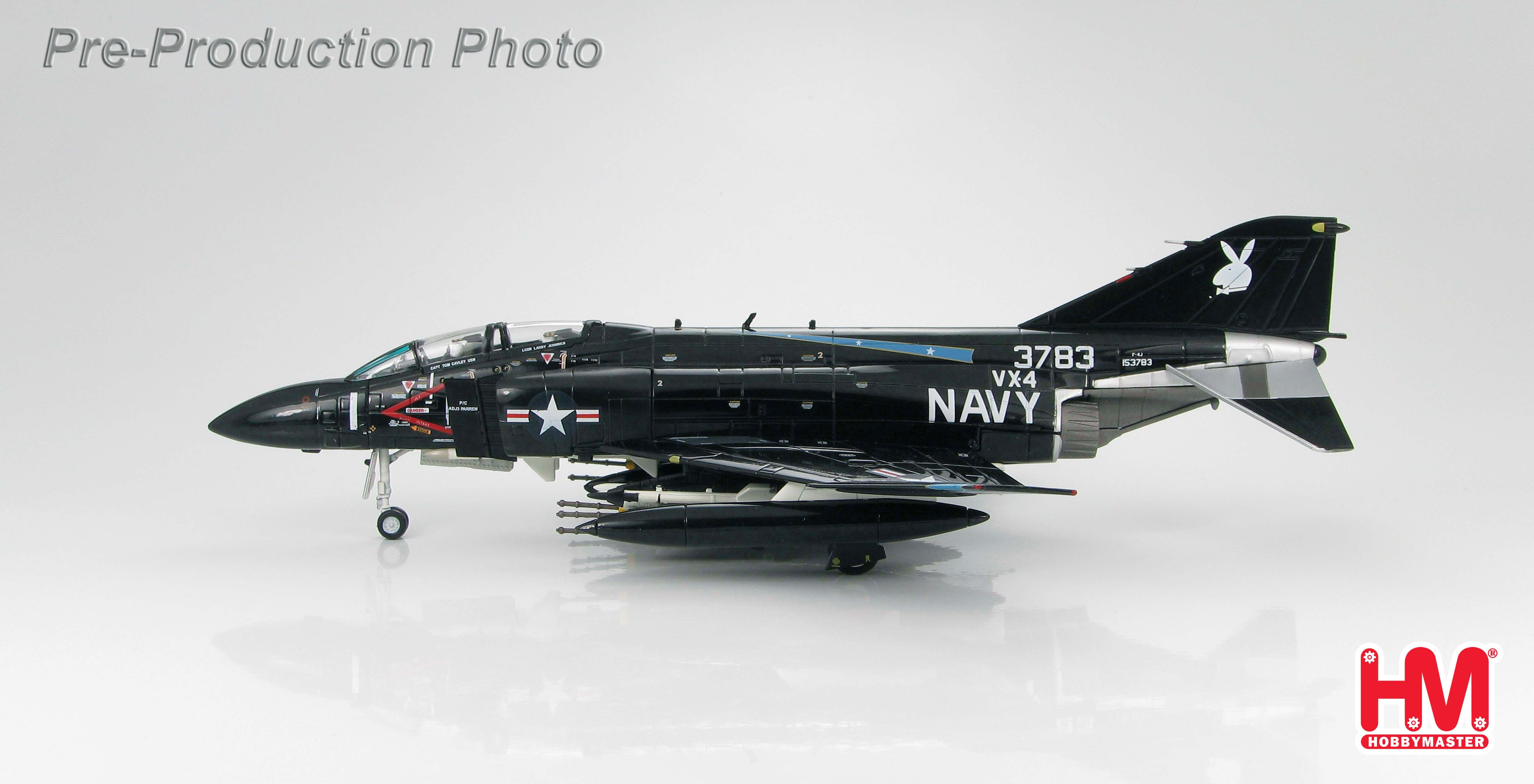

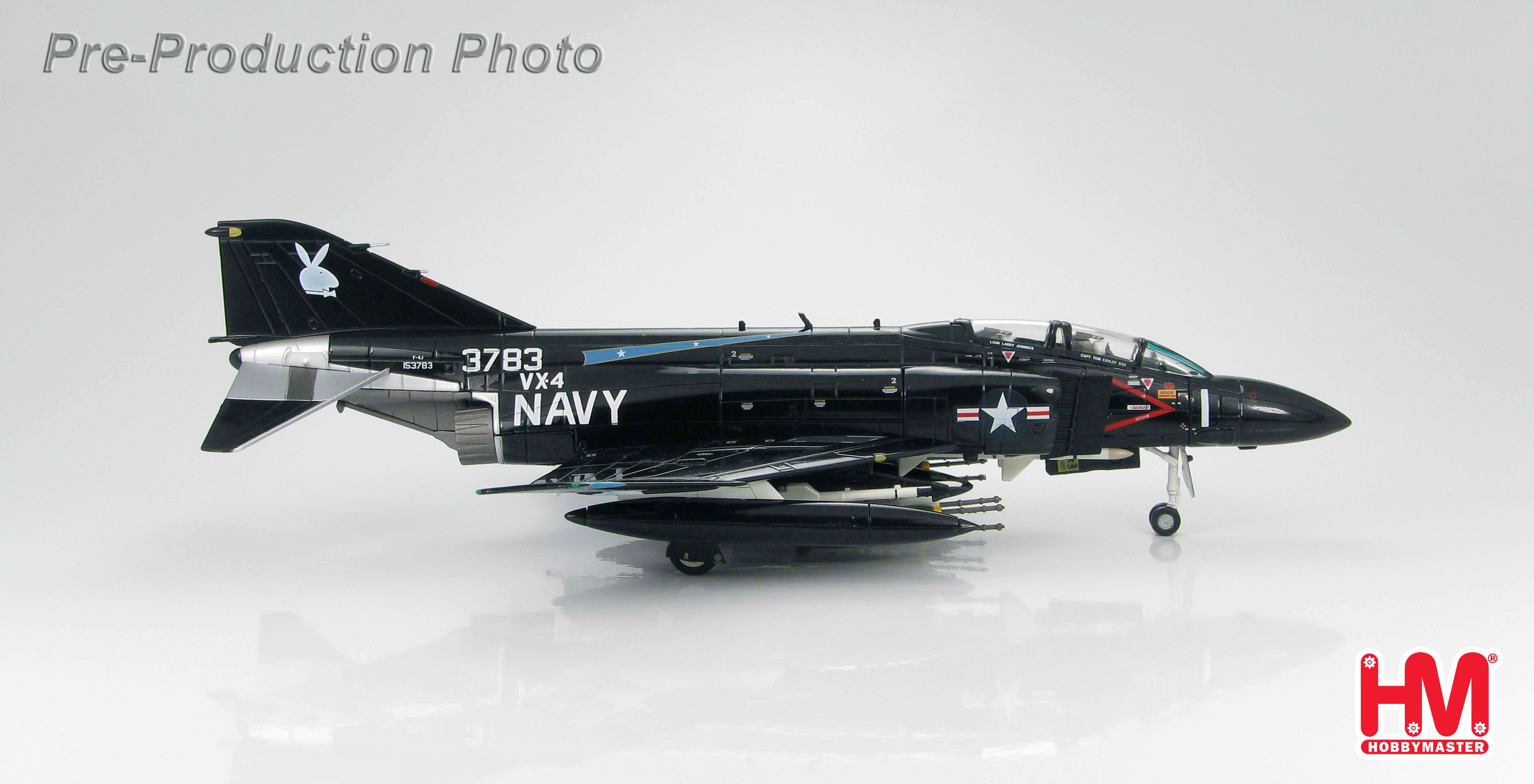

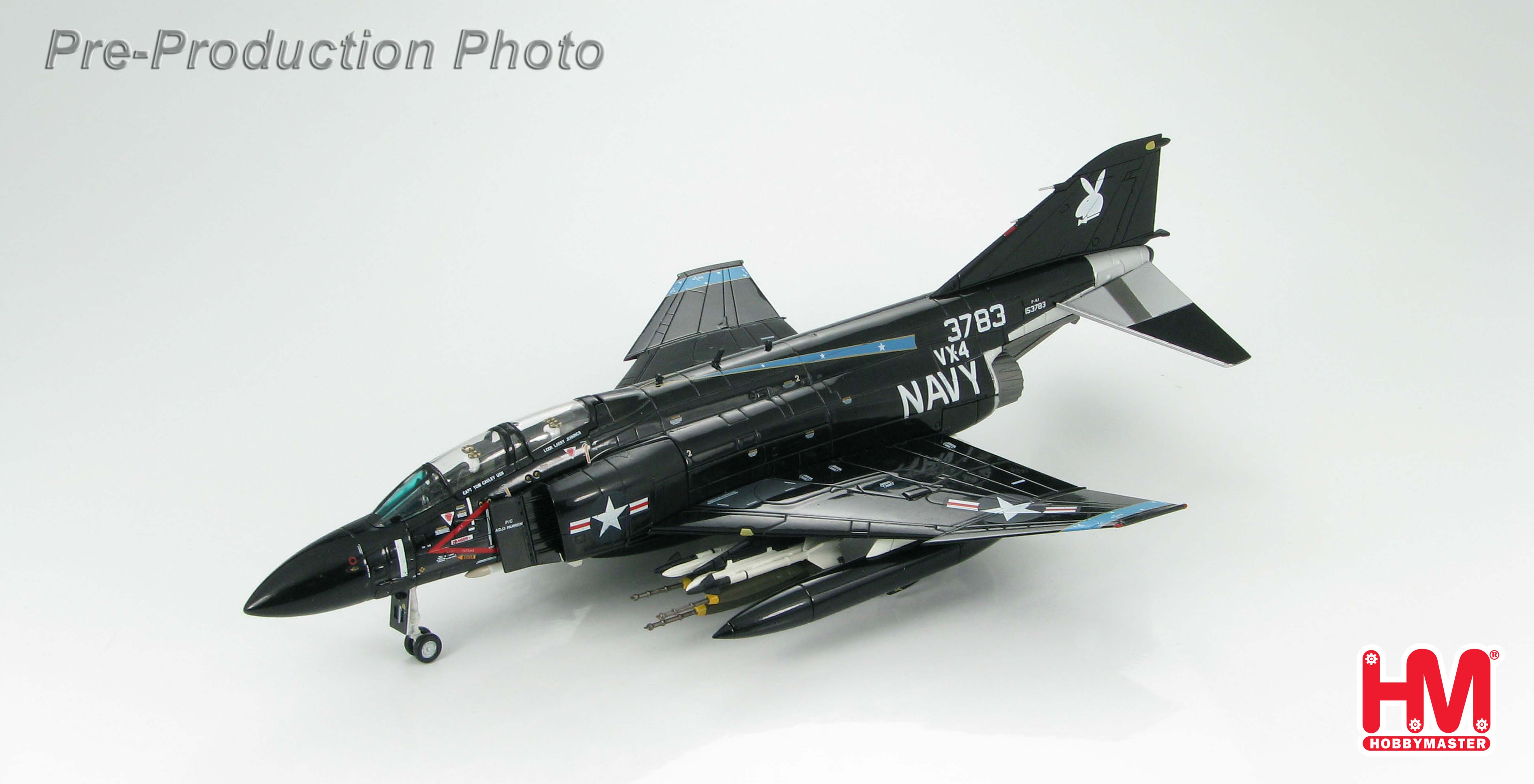

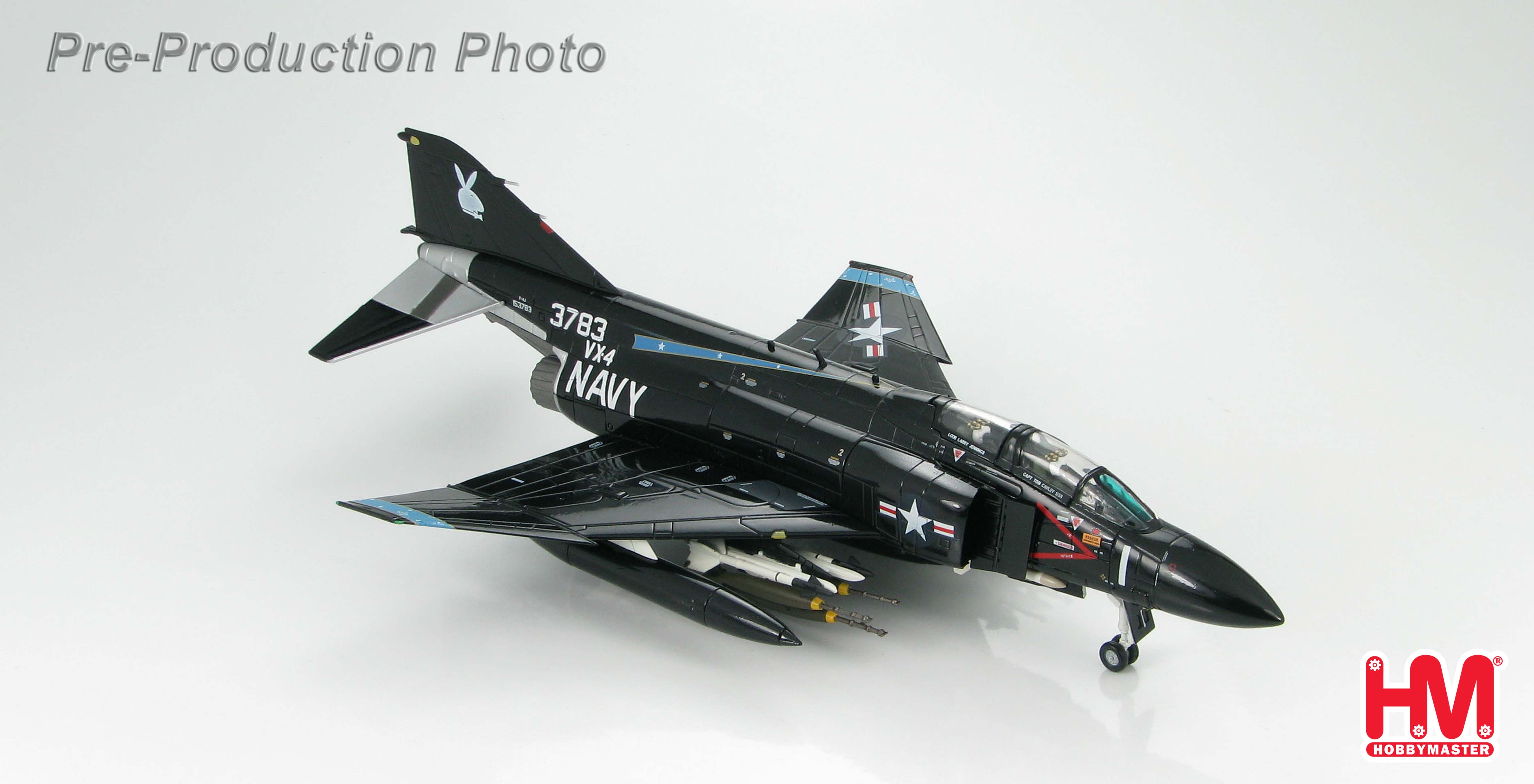

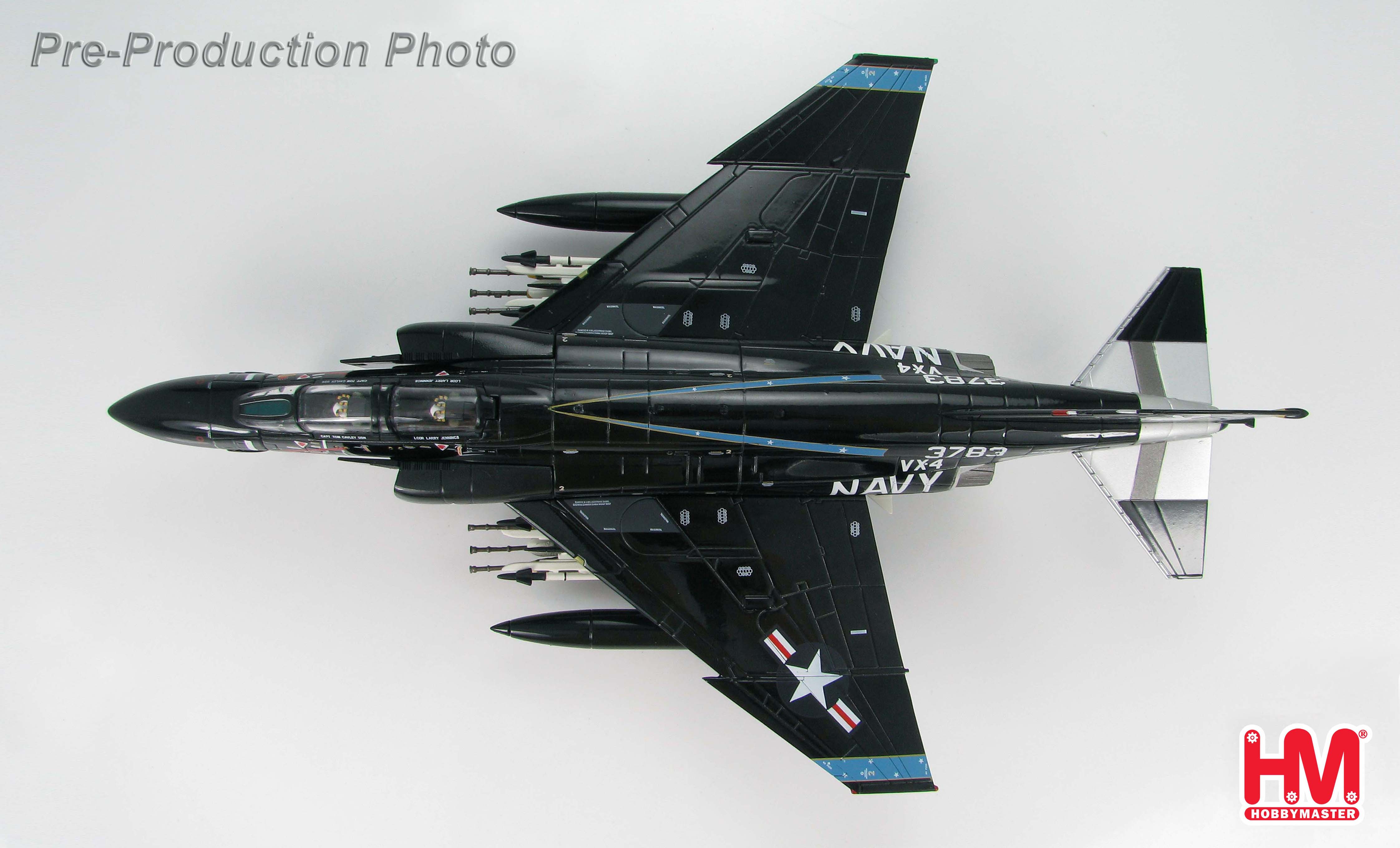

The F-4J was the last version produced for the USN and USMC. The “J” version was basically
an upgraded “B” version with new radar and avionics as well as a better the “J” version is what
isn’t there; the infrared seeker under the nose was deleted. Also missing was an internal gun but
Sparrow and Sidewinder missiles were used for intercepting. Between 1966 and 1972 there were
522 F-4Js built. The F-4J had the distinction of scoring the only USMC air-to-air combat victory in
Vietnam and it also was the last US operational aircraft in
South East Asia. In mid 1970 the F-4 Phantom II was being replaced by the new and improved F-
14 Tomcat.

On February 1, 1968 the former VMF(AW)-451 became VMFA-451 when they exchanged their
F8U-2 Crusaders for the F-4J Phantom II. In 1954 after a few name changes the unit finally
adopted the name “Warlords” as well as a new insignia. It consisted of a jet punching through a
Carling beer label with a motto “Vini, Vici” meaning “We came, We conquered”. In 1963 VMF(AW)
-451 moved to MCAS Beaufort, South Carolina. Over the years the squadron had spent time
aboard USS Forrestal and in 1976 they were scheduled to return to the carrier for a
Mediterranean cruise so the F-4J’s were painted in U.S. Bicentennial markings along with Carrier
Air Wing 17 tail-code of “AA”. As it turned out the Med cruise was cancelled. On January 31, 1999
VMFA-451 was decommissioned after 57 years of service.

Specification for the F- 4J

Performance
Engines: 2 X General Electric J79-GE-8B/8C/10 turbojets, 11,870 lb.s.t dry, 17,900 lb. s.t. with
afterburner. (lb.s.t. - Pounds Static Thrust)
Maximum speed: 1,584 mph at 48,000 ft. (Mach 2.4), 875 mph at sea level (Mach 1.15)
Initial climb rate: 41,250 fpm.
Service ceiling: 70,000 ft.
Combat ceiling: 54,700 ft.
Combat range: 596 miles, maximum range 1,956 miles with maximum external fuel.

Weights
30,770 lbs empty.
46,833 lbs gross.
41,399 lbs combat weight.

Dimensions
Wingspan: 38 ft. 5 in.
Wing area: 530 square ft.
Length: 58 ft. 3.75 in.
Height: 16 ft. 3 in.

Fuel
Maximum internal fuel: in fuselage tanks 1,347 US gal.
Internal wing tanks: 630 gal.
Maximum external fuel: 3,317 US gal.
600 US gal in a centerline tank, 370 US gal in each of two tanks that could be carried underneath
the outer under wing pylons.

Armament
4 X AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-recessed slots in the
fuselage belly.
2 X to 4 AIM-9 Sidewinder infra-red homing air-to-air missiles carried under the wings on the
inboard pylons.
Maximum offensive load of up to 16,000 lbs carried on the centerline and 4 under wing hard
points.
