Hobby Master 1/72 Air Power Series
HA1302
A-10A, 23rd FG, 74th FS "Flying Tigers"

A-10, 23rd FG, 74th FS
The 23rd FG roots go back to the 23rd Pursuit Group formed December 17, 1941. Sent
to China they assumed the duties and name “Flying Tigers” from the disbanded AVG.
The 74th FS was one of the original FS assigned to the new 23rd FG.
March 2002, the 23rd FG deployed from Kuwait to Afghanistan where they operated as
part of “Operation Enduring Freedom” and “Operation Southern Watch”. February 2003
the 23rd returned to Kuwait to launch attacks on Baghdad in “Operation Iraqi Freedom”.
Later they deployed forward to An-Nasiriyah.

October 1975 saw delivery of the first USAF A-10a and deployment in March
1976. Built specifically for close ground support the pilot is protected by titanium
armor while being covered by a bubble canopy giving a commanding view. The
Warthog has everything needed to survive, dual engines; self-sealing fuel cells;
redundant flight control systems protected by titanium armor; a 30 mm
seven-barrel Gatling gun; a wide array of bombs and missiles. This plane packs a
heavy punch and can stay on scene a long time to deliver its payload.
In the Gulf War, A-10s had a mission capable rate of 95.7 percent, flew 8,100 sorties and
launched 90 percent of the AGM-65 Maverick missiles and were vital assets during
Operation Desert Storm and Operation Noble Anvil.

Specifications:

Crew: One

Main role: A-10 - close air support, OA-10 -
airborne forward air control

Manufacturer: Fairchild Republic Co.

Power Plants: Two General Electric TF34-GE-100 turbofans
Thrust: 9,065 pounds per engine

Length: 16.16 meters   (53 ft 4 ins)
Height: 4.42 meters     (14 ft 8 ins)
Wingspan: 17.42 meters    (57 ft   6 ins)

Speed: 420 miles per hour (Mach 0.56)

Ceiling: 13,636 meters    (45,000 ft)

Maximum Takeoff Weight: 22,950 kg.    (51,000 lbs.)

Range: 800 miles (695 nautical miles)

Armament: One 30 mm GAU-8/A seven-barrel Gatling gun; maximum 7,200 kg
(16,000lbs.) of mixed ordnance on eight under-wing and three under-fuselage pylon
stations, including 225 kg (500 lbs.) Mk-82 and 900 kg (2,000 lbs.) Mk-84 series low/high
drag bombs, incendiary cluster bombs, combined effects munitions, mine dispensing
munitions, AGM-65 Maverick missiles and laser-guided/electro-optically guided bombs;
infrared countermeasure flares; electronic countermeasure chaff; jammer pods; 6.99 cm
(2.75 in.) rockets; illumination flares and AIM-9 Sidewinder missiles.

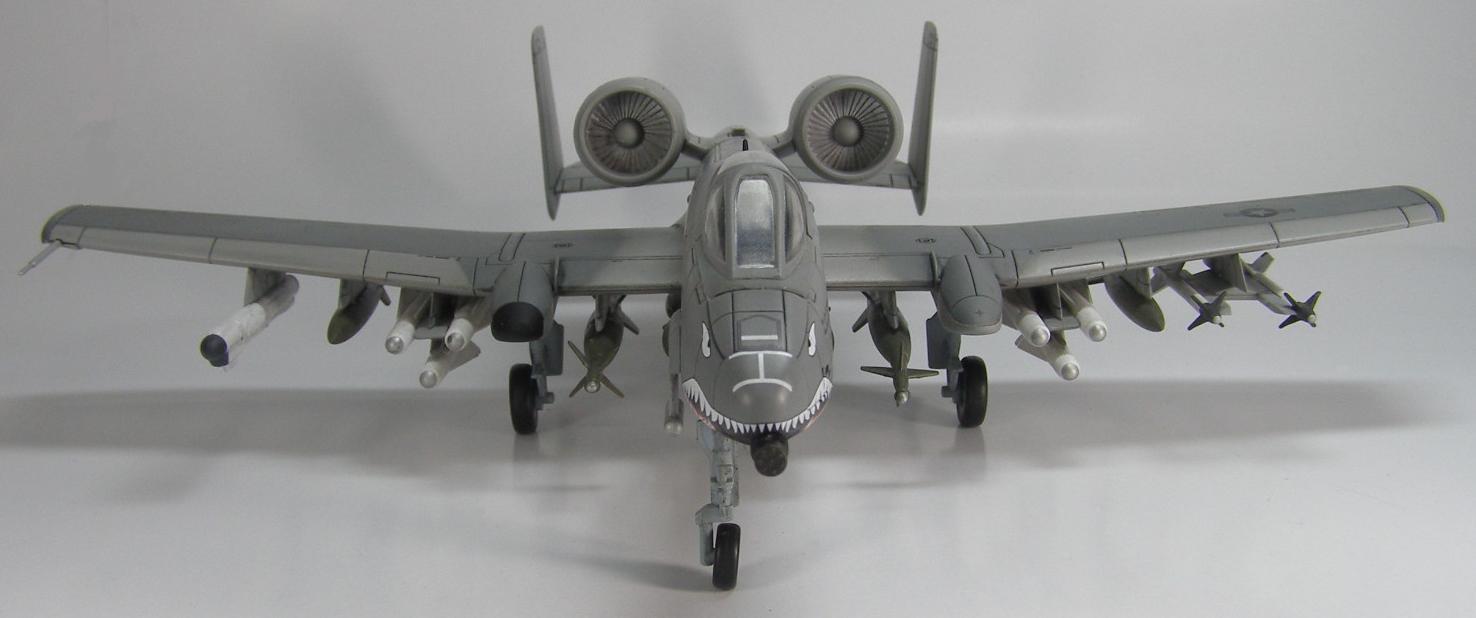

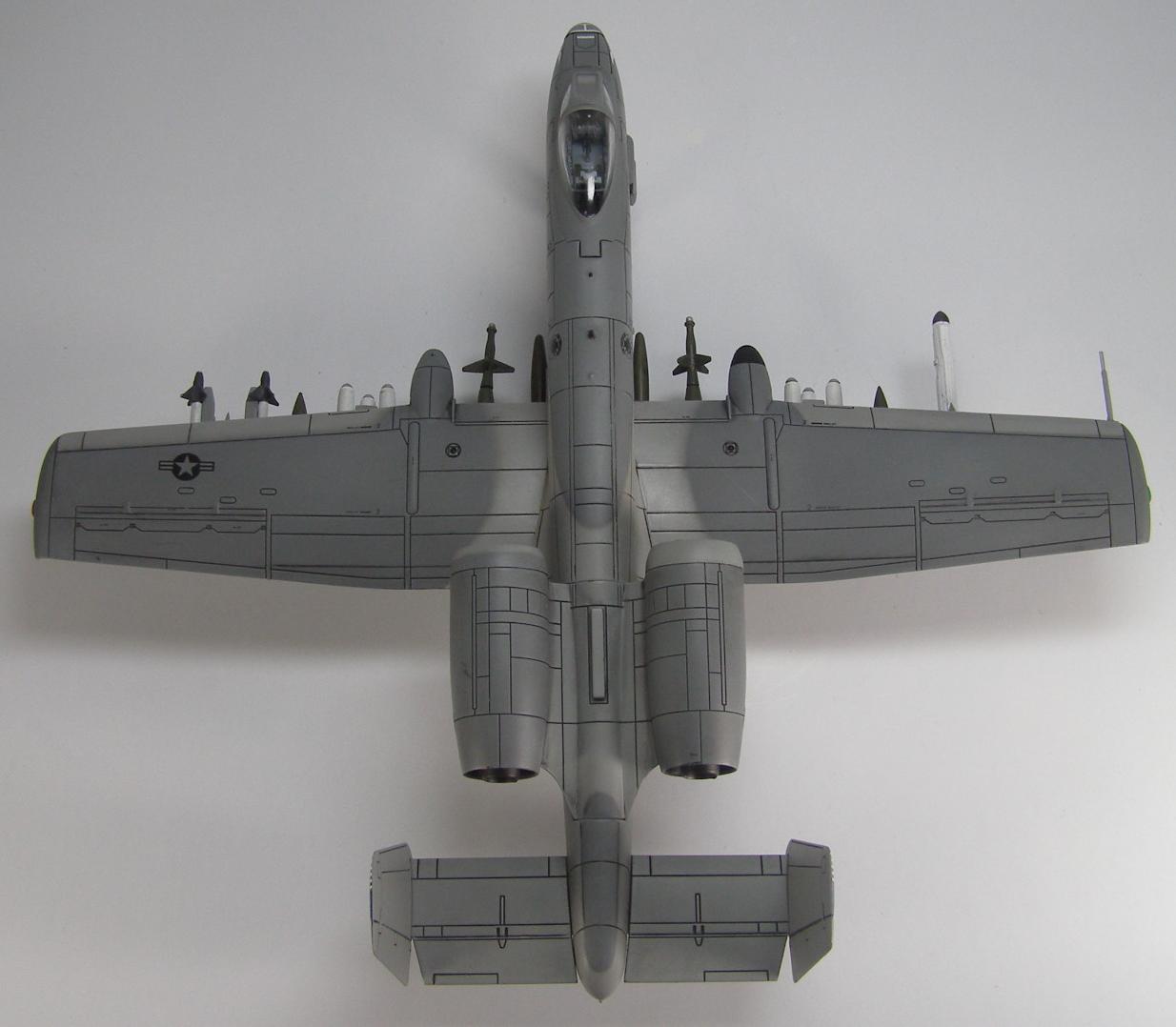

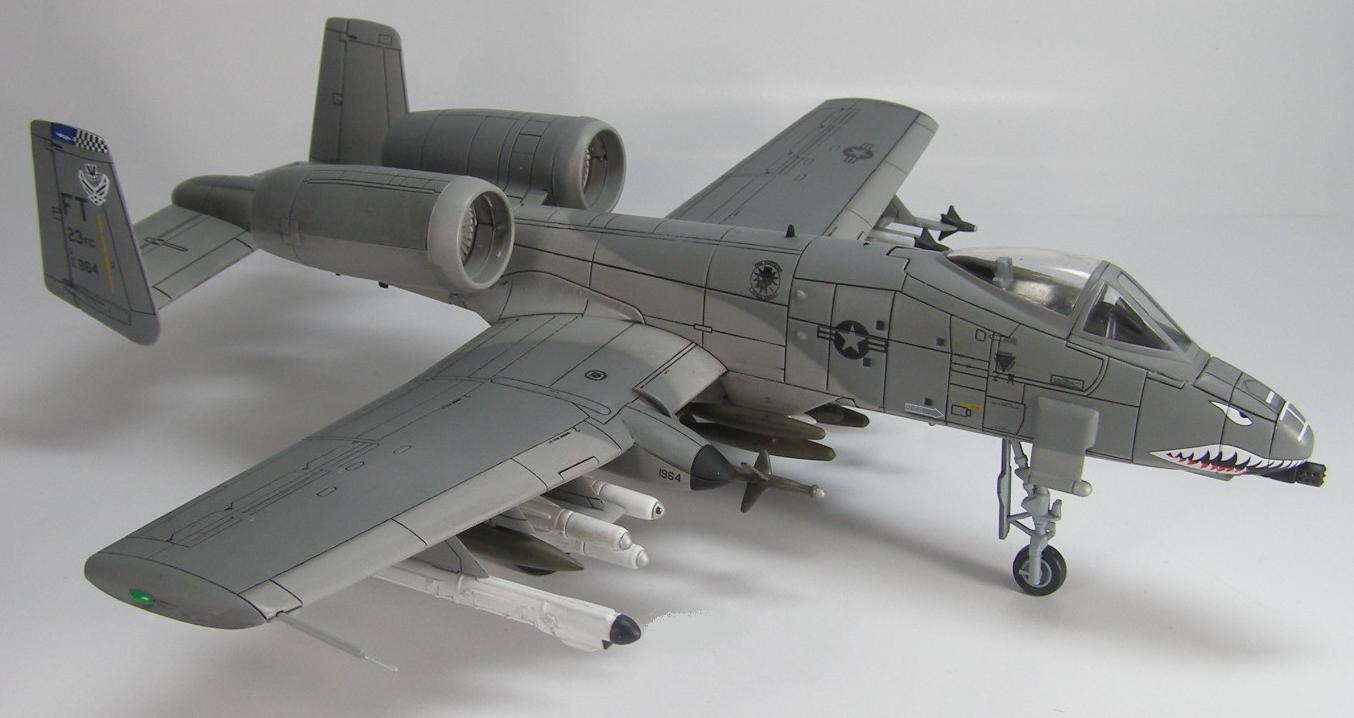

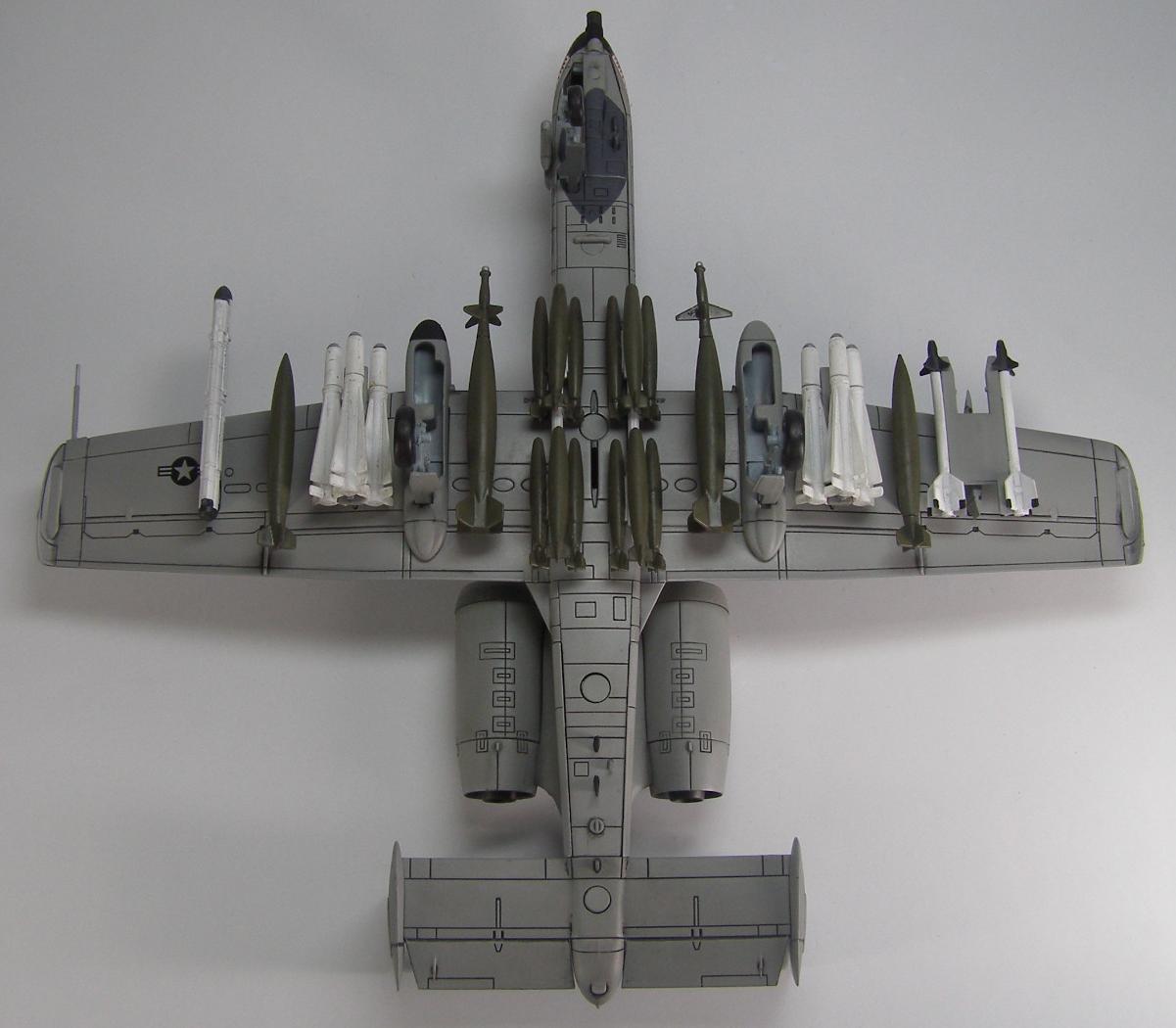

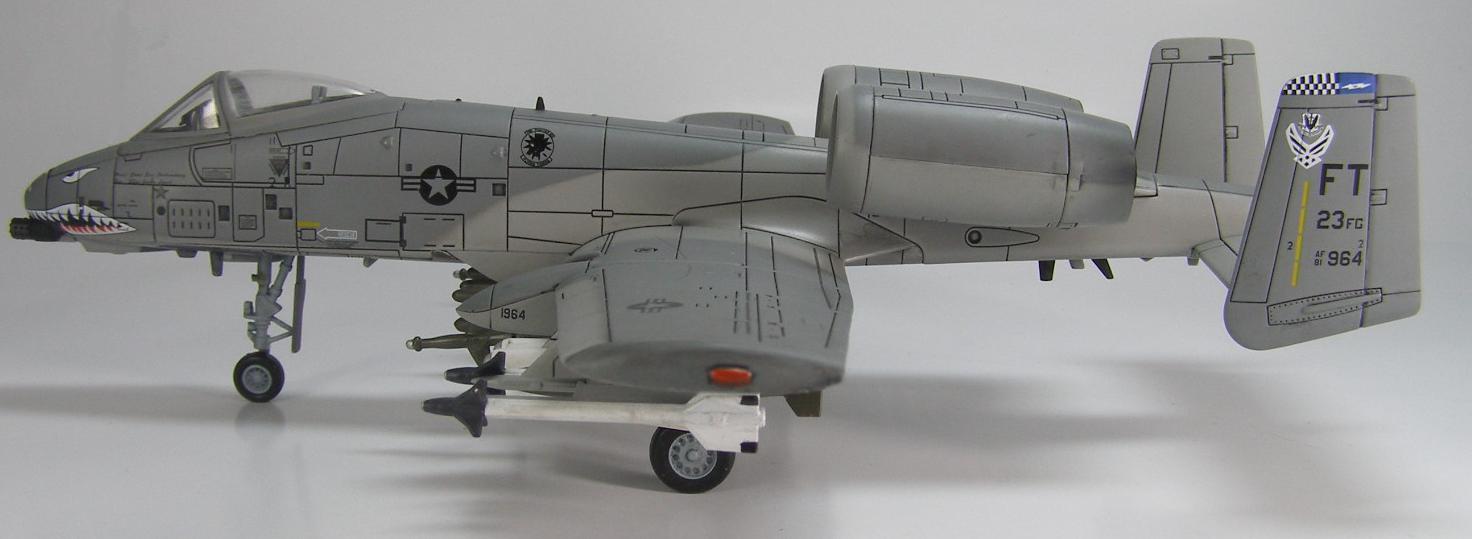

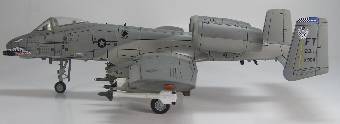

THESE ARE PRE-PRODUCTION
PICTURES NOT THE RETAIL
VERSION

READ REVIEW

True 1/72 scale
Professionally painted
Great attention to detail
All markings are Tampoed (pad applied)
Option to display the model on a stand that is provided
Model can be shown with the landing gear in the down or up positions
Canopy opens
Extremely heavy metal with a minimum of plastic
Highly collectable

Insignia courtesy of the
23rd Flying Tiger Association
