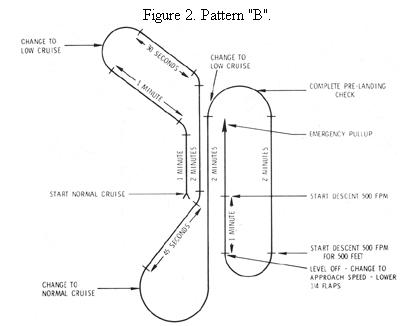

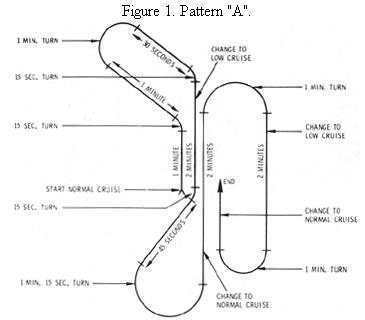

| APPENDIX
Clearance Shorthand
The shorthand system given here is recommended by the Federal Aviation
Administration. Applicants for the Instrument Rating may use any shorthand
system, in any language, which ensures accurate compliance with ATC
instructions. No shorthand system is required by regulation and no knowledge of
shorthand is required for the written test; however, because of the vital
necessity for safe coordination between the pilot and controller, clearance
information should be unmistakably clear.
As an instrument pilot, you
should make a written record of all ATC clearances and instructions that consist
of more than a few words; and any portions that are complex, or about which
there is any doubt, should be verified by a repeat back. Safety demands that you
receive correctly and do not forget any part of your clearance.
Occasionally ATC will issue a clearance that differs from the original
request. In such cases, the pilot must be particularly alert to be sure that he
receives and understands the clearance given.
The following symbols and contractions represent words and phrases
frequently used in clearances. Most of them are regularly used by ATC personnel.
Learn them along with the location identifiers which you will use.
By
using this shorthand, omitting the parenthetical words, you will be able, after
some practice, to copy long clearances as fast as they are read.
WORDS AND
PHRASES
SHORTHAND
ABOVE - - - - - - - - - - - - - - - - - - - - - - - - - - - - ABV
ABOVE (ALTITUDE--HUNDREDS OF FEET) - - - - - - - - - - - - - - 70
ADVISE - - - - - - - - - - - - - - - - - - - - - - - - - - - - ADV
AFTER (PASSING) - - - - - - - - - - - - - - - - - - - - - - -
<
AIRWAY (DESIGNATION) - - - - - - - - - - - - - - - - - - - - -
V26
AIRPORT - - - - - - - - - - - - - - - - - - - - - - - - - -
- A
ALTERNATE INSTRUCTIONS - - - - - - - - - - - - - - - - - - -
- ( )
ALTITUDE 6,000 - 17,000 - - - - - - - - - - - - - - - - -
- - 60-170
AND - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - &
APPROACH - - - - - - - - - - - - - - - - - - - - - - - -
- - - AP
APPROACH CONTROL - - - - - - - - - - - - - - - - - - - - - -
- APC
AT - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- @
(ATC) ADVISES - - - - - - - - - - - - - - - - - - - - - - -
- CA
(ATC) CLEARS OR CLEARED - - - - - - - - - - - - - - - - - -
- C
(ATC) REQUESTS - - - - - - - - - - - - - - - - - - - - - - -
- CR
BACK COURSE - - - - - - - - - - - - - - - - - - - - - - - -
- BC
BEARING - - - - - - - - - - - - - - - - - - - - - - - - - -
- BR
BEFORE (REACHING,PASSING) - - - - - - - - - - - - - - - - -
- >
BELOW - - - - - - - - - - - - - - - - - - - - - - - - - -
- - BLO
BELOW (ALTITUDE - HUNDREDS OF FEET) - - - - - - - - - -
- - -
CENTER - - - - - - - - - - - - - - - - - - - - - - - - - - - -
CTR
CLEARED AS FILED - - - - - - - - - - - - - - - - - - - - - - - CAF
CLEARED TO LAND - - - - - - - - - - - - - - - - - - - - - - - L
CLIMB TO (ALTITUDE - HUNDREDS OF FEET) - - - - - - - - - - - -
CONTACT - - - - - - - - - - - - - - - - - - - - - - - - - - - CT
CONTACT APPROACH - - - - - - - - - - - - - - - - - - - - - - - CAP
CONTACT (DENVER) APPROACH CONTROL - - - - - - - - - - - - - -
(den
CONTACT (DENVER) CENTER - - - - - - - - - - - - - - - - - -
- (DEN
COURSE - - - - - - - - - - - - - - - - - - - - - - - - - - -
- CRS
CROSS - - - - - - - - - - - - - - - - - - - - - - - - - -
- - X
CRUISE - - - - - - - - - - - - - - - - - - - - - - - - - - - -
DELAY INDEFINITE - - - - - - - - - - - - - - - - - - - - - - - DLI
DEPART - - - - - - - - - - - - - - - - - - - - - - - - - - - - DP
DEPARTURE CONTROL - - - - - - - - - - - - - - - - - - - - - -
DPC
DESCEND TO (ALTITUDE - HUNDREDS OF FEET) - - - - - - - - - -
DIRECT
- - - - - - - - - - - - - - - - - - - - - - - - - - - - DR
DIRECTION
(BOUND)
EASTBOUND - - - - - - - - - - - - - - - - - - - - - - -
- - EB
WESTBOUND - - - - - - - - - - - - - - - - - - - -
- - - - - WB
NORTHBOUND - - - - - - - - - - - - - -
- - - - - - - - - - NB
SOUTHBOUND - - - - - - - - -
- - - - - - - - - - - - - - - SB
INBOUND - - - - - - - -
- - - - - - - - - - - - - - - - - - IB
OUTBOUND - -
- - - - - - - - - - - - - - - - - - - - - - - OB
DME FIX (MILE) - - -
- - - - - - - - - - - - - - - - - - - - -
EACH - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - EA
ENTER CONTROL AREA - - - - - - - - - -
- - - - - - - - - - - -
ESTIMATED TIME OF ARRIVAL - - - - - - - - - -
- - - - - - - - ETA
EXPECT - - - - - - - - - - - - - - - - - - - - - -
- - - - - - EX
EXPECT APPROACH CLEARANCE - - - - - - - - - - - -
- - - - - - EAC
EXPECT FURTHER CLEARANCE - - - - - - - - - - - - - - -
- - - - EFC
FAN MARKER - - - - - - - - - - - - - - - - - - - - - - - -
- - FM
FINAL - - - - - - - - - - - - - - - - - - - - - - - - - -
- - F
FLIGHT LEVEL - - - - - - - - - - - - - - - - - - - - - - - -
- FL
FLIGHT PLANNED ROUTE - - - - - - - - - - - - - - - - - - - -
- FPR
FOR FURTHER CLEARANCE - - - - - - - - - - - - - - - - - -
- - FFC
FOR FURTHER HEADINGS - - - - - - - - - - - - - - - - - - - -
- FFH
FROM - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- FR
HEADING - - - - - - - - - - - - - - - - - - - - - - - - - -
- HDG
HOLD (DIRECTION) - - - - - - - - - - - - - - - - - - - - - -
- H-W
HOLDING PATTERN - - - - - - - - - - - - - - - - - - - - -
- -
ILS APPROACH - - - - - - - - - - - - - - - - - - - - - - - - - ILS
INITIAL APPROACH - - - - - - - - - - - - - - - - - - - - - - - I
INTERSECTION - - - - - - - - - - - - - - - - - - - - - - - - - XN
JOIN OR INTERCEPT AIRWAY/JET ROUTE/TRACK OR COURSE - - - - - -
LEFT TURN
AFTER TAKEOFF - - - - - - - - - - - - - - - - - - -
LOCATOR OUTER
MARKER - - - - - - - - - - - - - - - - - - - - - LOM
MAINTAIN OR
MAGNETIC - - - - - - - - - - - - - - - - - - - - - M
MAINTAIN VFR
CONDITIONS ON TOP - - - - - - - - - - - - - - - - VFR
MIDDLE COMPASS
LOCATOR - - - - - - - - - - - - - - - - - - - - ML
MIDDLE MARKER
- - - - - - - - - - - - - - - - - - - - - - - - MM
NONDIRECTIONAL
BEACON APPROACH - - - - - - - - - - - - - - - - NDB
OUT OF (LEAVE)
CONTROL AREA - - - - - - - - - - - - - - - - -
OUTER MARKER - - - - -
- - - - - - - - - - - - - - - - - - - - OM
OVER (STATION) - - - - - -
- - - - - - - - - - - - - - - - - - OKC
ON COURSE - - - - - - -
- - - - - - - - - - - - - - - - - - - OC
PRECISION RADAR APPROACH - -
- - - - - - - - - - - - - - - - - PAR
PROCEDURE TURN - - - - - - - - -
- - - - - - - - - - - - - - - PT
RADAR VECTOR - - - - - - - - - - - -
- - - - - - - - - - - - - RV
RADIAL (080° RADIAL) - - - - - - - - - -
- - - - - - - - - - - 080R
REMAIN WELL TO LEFT SIDE - - - - - - - - -
- - - - - - - - - - LS
REMAIN WELL TO RIGHT SIDE - - - - - - - -
- - - - - - - - - - RS
REPORT CROSSING - - - - - - - - - - - - -
- - - - - - - - - - RX
REPORT DEPARTING - - - - - - - - - - - - - - -
- - - - - - - - RD
REPORT LEAVING - - - - - - - - - - - - - - - - - -
- - - - - - RL
REPORT ON COURSE - - - - - - - - - - - - - - - - - - -
- - - - R-CRS
REPORT OVER - - - - - - - - - - - - - - - - - - -
- - - - - - RO
REPORT PASSING - - - - - - - - - - - - - - - - - - - -
- - - - RP
REPORT REACHING - - - - - - - - - - - - - - - - - - -
- - - - RR
REPORT STARTING PROCEDURE TURN - - - - - - - - - - - - - -
- - RSPT
REVERSE COURSE - - - - - - - - - - - - - - - - - - - - - - -
- RC
RIGHT TURN AFTER TAKEOFF - - - - - - - - - - - - - - - - - - -
RUNWAY (NUMBER) - - - - - - - - - - - - - - - - - - - - - - -
RY18
SQUAWK - - - - - - - - - - - - - - - - - - - - - - - - - - - - SQ
STANDBY - - - - - - - - - - - - - - - - - - - - - - - - - - -
STBY
STRAIGHT-IN APPROACH - - - - - - - - - - - - - - - - - - - - - SI
SURVEILLANCE RADAR APPROACH - - - - - - - - - - - - - - - - -
ASR
TAKEOFF (DIRECTION) - - - - - - - - - - - - - - - - - - - - -
TOWER - - - - - - - - - - - - - - - - - - - - - - - - - - - - Z
UNTIL - - - - - - - - - - - - - - - - - - - - - - - - - - - - U
UNTIL ADVISED (BY) - - - - - - - - - - - - - - - - - - - - - - UA
UNTIL FURTHER ADVISED - - - - - - - - - - - - - - - - - - - -
UFA
VIA - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- VIA
VICTOR (AIRWAY NUMBER) - - - - - - - - - - - - - - - - - - -
- V14
VISUAL APPROACH - - - - - - - - - - - - - - - - - - - - -
- - VA
VOR - - - - - - - - - - - - - - - - - - - - - - - - - - -
- -
VORTAC - - - - - - - - - - - - - - - - - - - - - - - - - - - -
WHILE
IN CONTROL AREA - - - - - - - - - - - - - - - - - - - -
EXAMPLE
An example of a clearance written in shorthand:
CAF M RY HDG RV V18 SQ 0700 DPC 120.4
Translated it reads: (Aircraft number), cleared as filed, maintain runway
heading for radar vector to Victor 18, squawk 0700 just before departure,
departure control frequency - 120.4.
